Product Short Description
Product Name: Single Port Fiber Switch Module

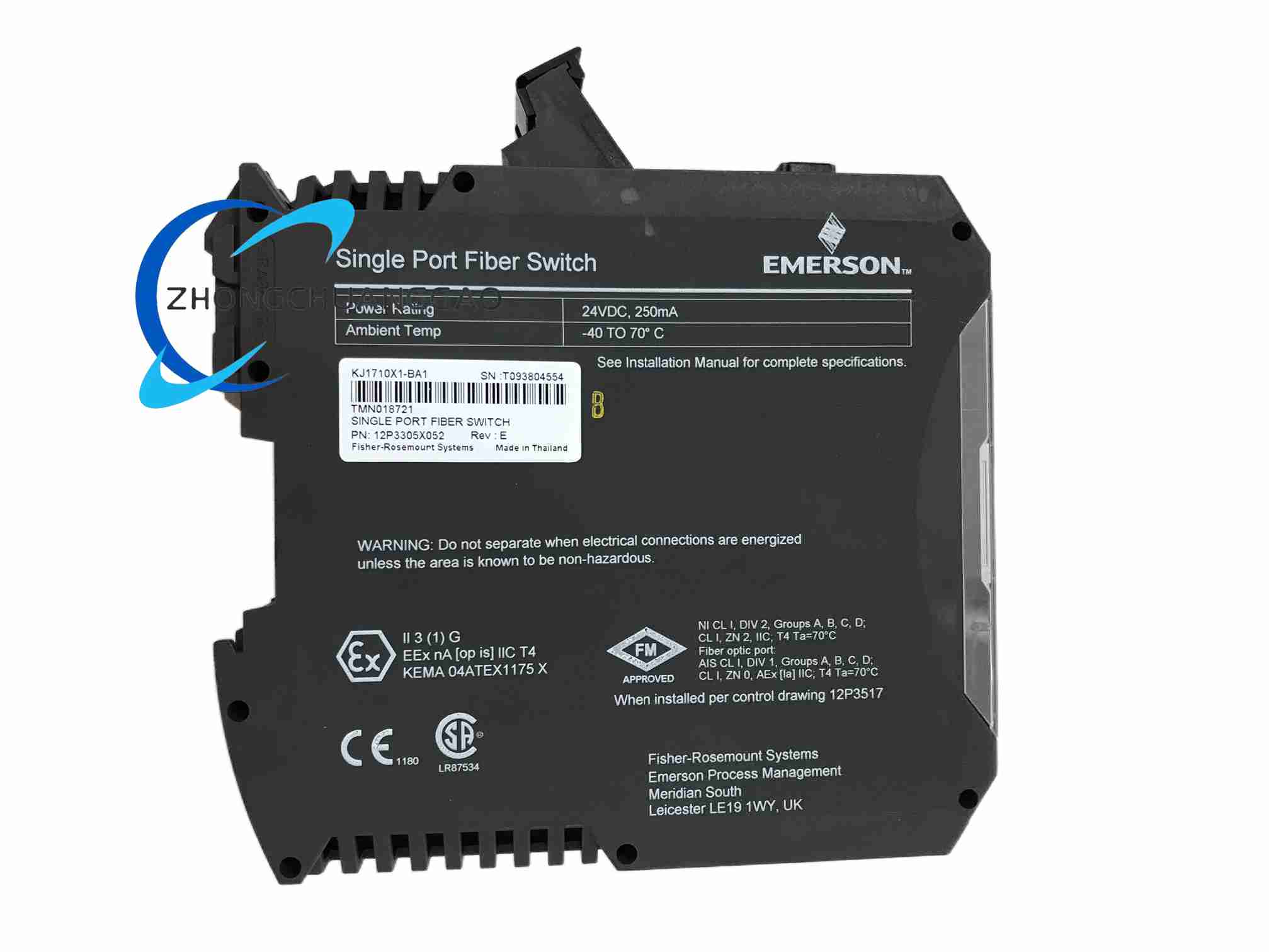

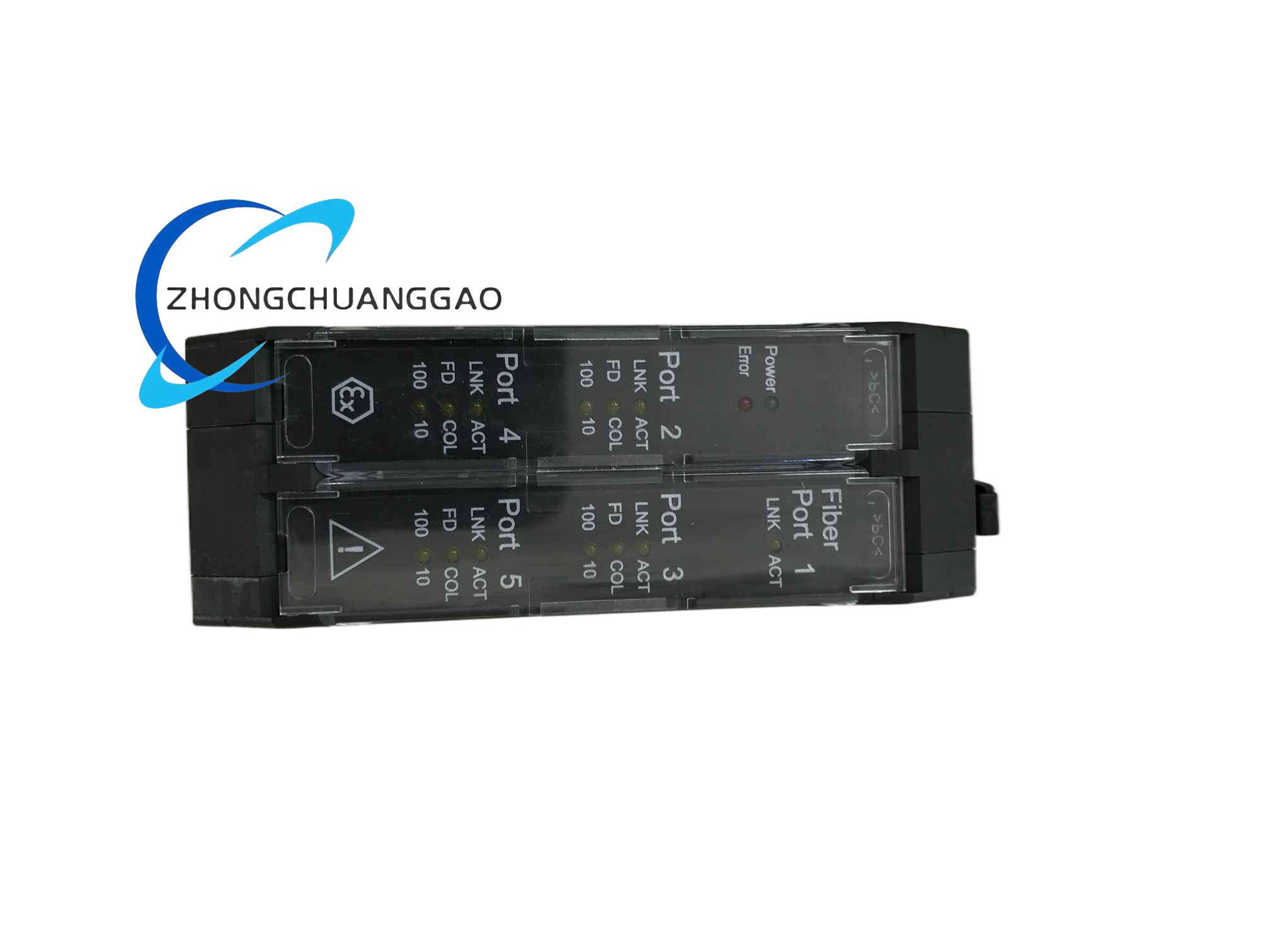

Product Introduction: The Emerson KJ1710X1-BA1 is a single-port fiber optic switch component for the DeltaV Distributed Control System (DCS). It delivers high-speed, high-bandwidth fiber-optic data transmission for industrial automation networks, ensuring stable and reliable communication in harsh industrial and hazardous area environments.
Description
Technical Specifications:
- Input Power Range: 19.2 VDC to 28.8 VDC at 250 mA
- Operating Temperature Range: -40°C to 70°C
- Storage Temperature Range: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Shock Resistance: 10 G ½-sinewave for 11 ms
- Vibration Resistance: 1 mm peak-to-peak (5 Hz to 16 Hz); 0.5 g (16 Hz to 150 Hz)
- Airborne Contaminant Rating: ISA-S71.04-1985 Class G3
- Dimensions: 12 cm × 8 cm × 2.5 cm
- Weight: 0.2 kg
- Enclosure Protection: IP20
Functional Features:
- High-speed fiber optic data transmission optimized for DeltaV system networks
- Industrial-grade ruggedized design for continuous operation in harsh conditions
- Support for redundant fiber connections and loop topologies for enhanced fault tolerance
- ATEX and IECEx certified for Zone 2 / Class I Division 2 hazardous locations
- Compact form factor for direct integration into DeltaV control cabinets
Application Scenarios:
- DeltaV DCS network expansion and long-distance communication
- Onshore and offshore oil and gas production facilities
- Petrochemical and chemical processing plants
- Power generation and electrical distribution systems
- Remote industrial sites with extended communication distances
