Product Short Description

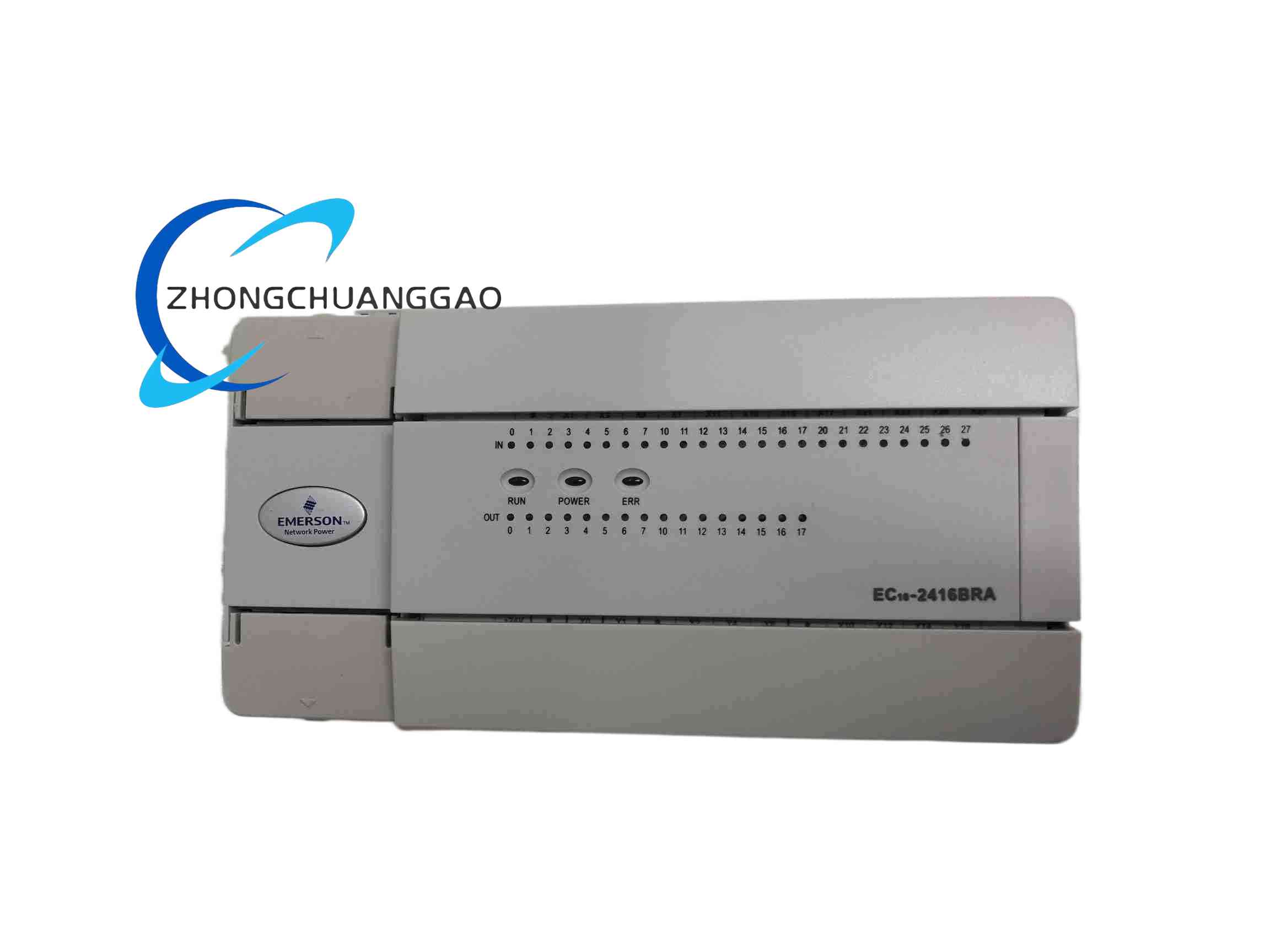

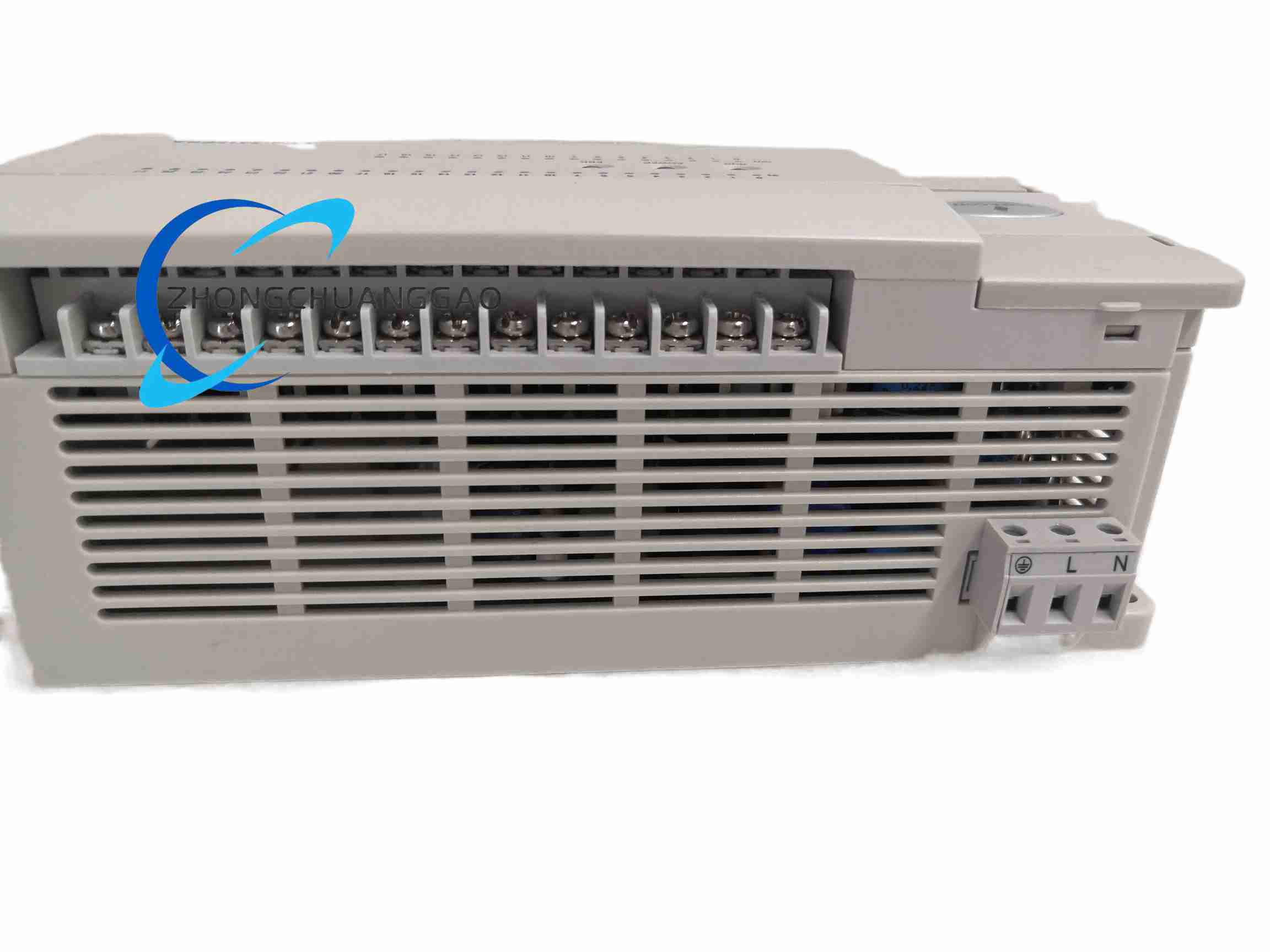

Product Name: EC10 Series All-in-One Small PLC (Basic Main Unit)
Product Introduction: The EC10-2416BRA is a basic host module of Emerson’s EC10 series small integrated PLC. It provides 24-point DC inputs and 16-point relay outputs, totaling 40 I/O points, suitable for packaging machinery, textile equipment, and small-scale production lines requiring high-speed counting and multi-segment variable-speed pulse control.
Description
Technical Specifications:
- Manufacturer: EMERSON
- Product Type: EC10 series all-in-one PLC host
- Input Points: 24 × DC24V (bidirectional photo-coupler isolation)
- Output Points: 16 × relay (2 A/point, resistive)
- Total I/O: 40 points
- Program Capacity: 12 k steps
- Basic Instruction Speed: 0.3 μs/step
- Built-in Power Supply: 24 VDC / 400 mA sensor power
- High-Speed Pulse: 6 channels 50 kHz (Y0-Y5)
- Communication Port: 1 × RS485 (Modbus-RTU, ECbus-N:N)
- Expansion Capability: Up to 4 expansion modules (I/O or special function)
- Power Input: 85–264 Vac (50/60 Hz)
- Dimensions (L × W × H): 182 × 90 × 75 mm
Functional Features: Relay outputs with 2 A (resistive) per point rating, capable of directly driving solenoid valves, contactors, and low-power motors. Supports Modbus-RTU and ECbus-N:N protocols.
Application Scenarios: Widely used in packaging machinery, textile equipment, and small-scale production lines requiring high-speed counting and multi-segment variable-speed pulse control.
Working Principle: As a small integrated PLC, it executes the user program stored in its 12 k-step program capacity, processes DC input signals through bidirectional photo-coupler isolation, and drives external devices via relay outputs. It supports high-speed pulse output for positioning control.
Installation & Usage Notes: Power input range is 85–264 Vac (50/60 Hz). The module can be expanded with up to 4 expansion modules. MTBF is ≥ 200,000 hours, designed to save lifecycle costs for OEM and end users.
