Product Short Description

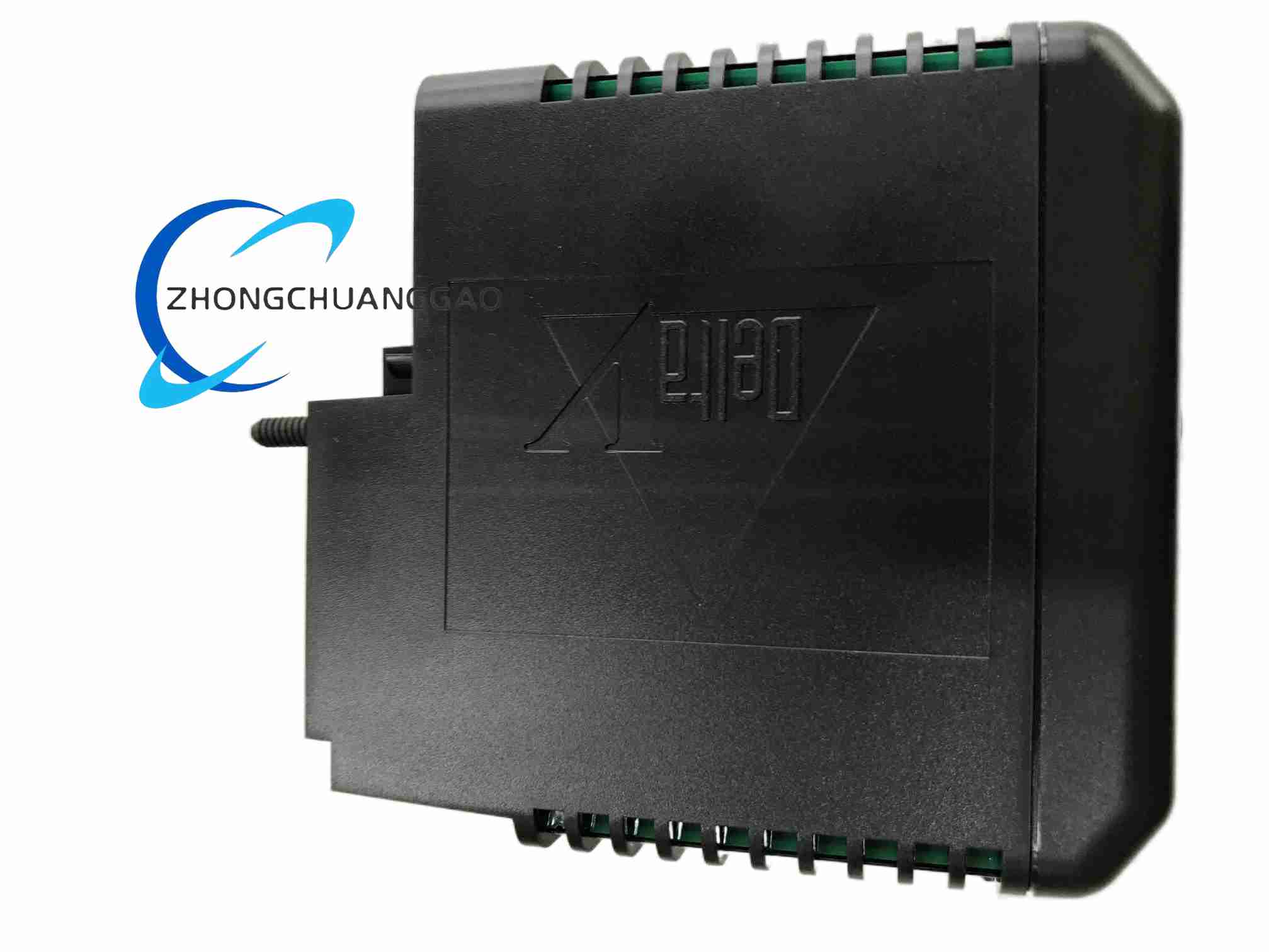

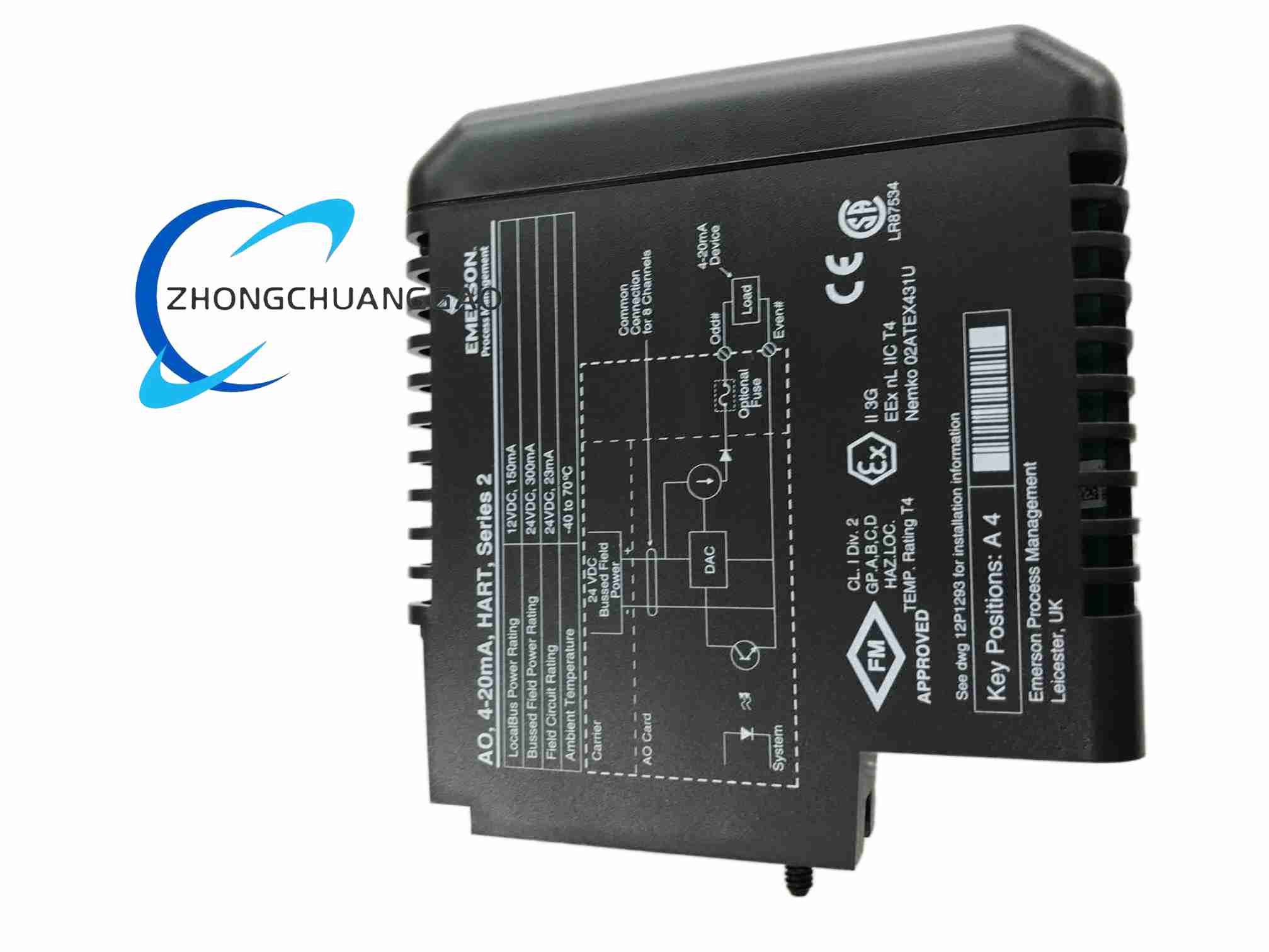

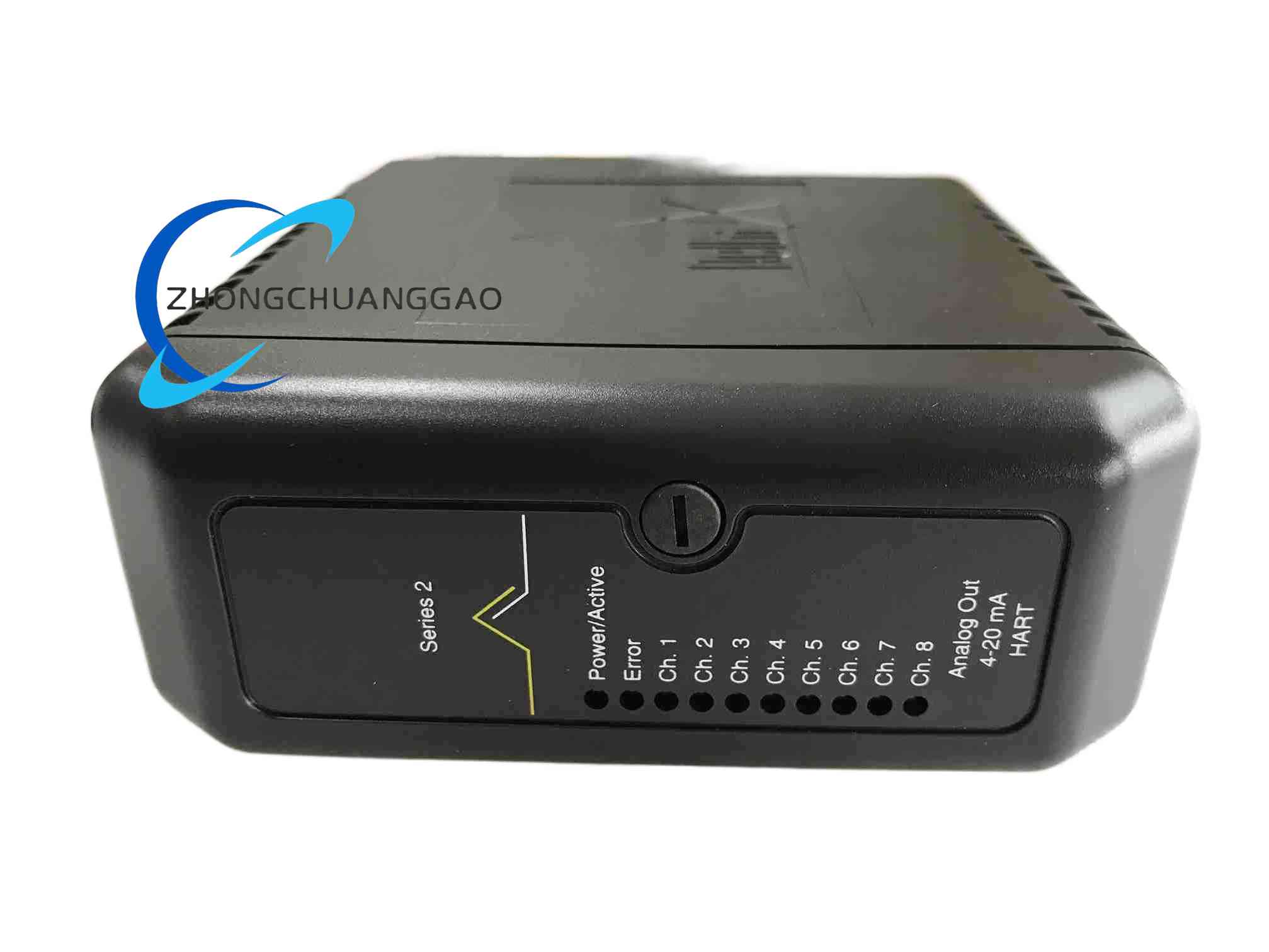

Product Name: Emerson CE4005S2B1 (KJ3222X1-BA1) DeltaV Series 2+ 8-Channel Isolated Analog Output Module with HART.
Product Overview: An 8-channel, optically isolated 4–20 mA analog output module for the Emerson DeltaV DCS. It drives control valves,variable frequency drives, and other HART-enabled actuators. The module integrates HART communication for device configuration and diagnostics, reducing wiring costs by 30–40% compared to separate analog and digital infrastructures.
Description
Technical Specifications:
- System Platform: Emerson DeltaV DCS, M-Series I/O
- Output Channels: 8 independent, optically isolated
- Output Signal: 4–20 mA nominal, 1–23 mA full range
- Resolution: 12-bit (4096 levels)
- Accuracy: ±0.25% of span over temperature range
- Output Compliance: 20 mA into 700 Ω at 21.6 VDC supply
- Isolation Voltage: 1500 VDC (factory tested)
- HART Communication: Supported on all channels
- LocalBus Current: 12 VDC, 100 mA typical / 150 mA maximum
- Field Circuit Power: 300 mA maximum at 24 VDC (±10%)
- Optional Fuse: 2.0 A
- Terminal Block Keying: A4 (compatible with KJ4001X1-CA1 Standard I/O Termination Block)
- Operating Temperature: –40°C to +70°C
- Storage Temperature: –40°C to +85°C
- Humidity: 5–95% RH, non-condensing
- Protection: Conformal coating per ISA-S71.04-1985 Class G3 (corrosive atmosphere resistant)
- Protection Rating: IP20, NEMA 12
- Shock Resistance: 10 g ½-sine wave, 11 ms
- Vibration: 1 mm peak-to-peak (2–13.2 Hz) to 0.7 g (13.2–150 Hz)
- Dimensions: 107 × 41 × 105 mm (4.2 × 1.6 × 4.1 in)
- Certifications: CE, UL, ATEX EEx nA IIC T4 (Zone 2)
- Mounting: DeltaV I/O carrier (hot-swappable in safe areas)
Functional Features:
- Factory-calibrated; no field calibration required
- HART pass-through for AMS Device Manager integration
- Auto-detection by DeltaV system simplifies commissioning
- Optional per-card 2.0 A fuse protection
- Graphical configuration through DeltaV Explorer — no programming required
- Robust design for offshore, pulp & paper, and mining environments
Working Principle: The DeltaV controller sends digital output commands over the I/O bus. A 12-bit D/A converter generates the corresponding 4–20 mA current, which is optically isolated and driven through the field terminals. HART FSK signals are superimposed on the analog current for two-way digital communication with smart field devices.
Application Scenarios: Control of modulating valves, VFD speed commands, solenoid actuators, and HART-enabled smart positioners in petrochemical plants, power generation, water treatment, and pharmaceutical manufacturing.
Installation & Usage Notes:
- Insert into any slot of a DeltaV 8-wide I/O carrier; the system auto-detects the module
- Use A4-keyed KJ4001X1-CA1 termination block for proper mating
- Respect the 300 mA maximum field circuit power budget per card
- For hazardous area (ATEX Zone 2) installations, follow Emerson’s prescribed wiring and grounding practices
- Hot-swap only in non-hazardous areas during planned maintenance windows
- Connect shield of field cables to earth ground at one end only to prevent ground loops
