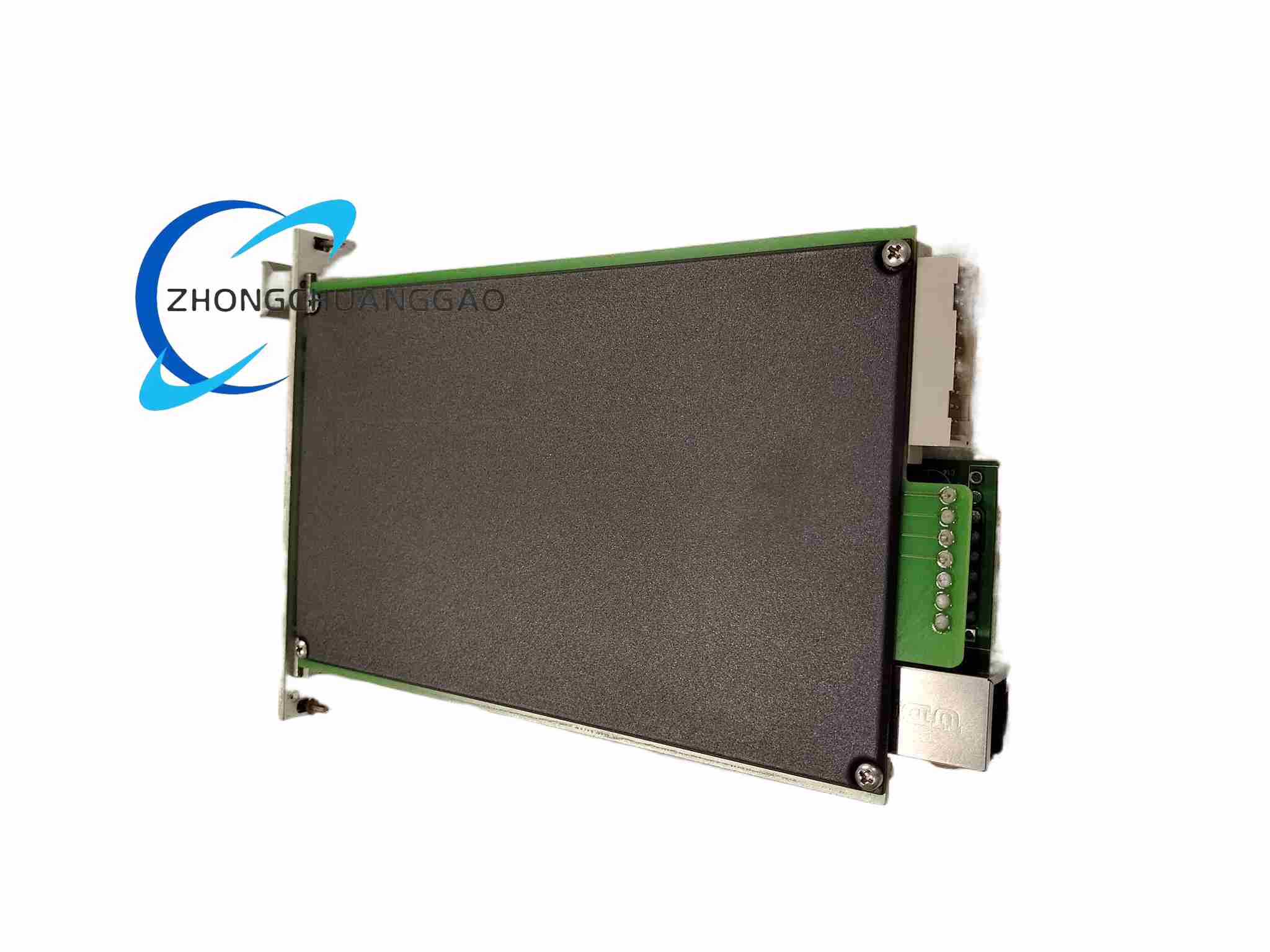

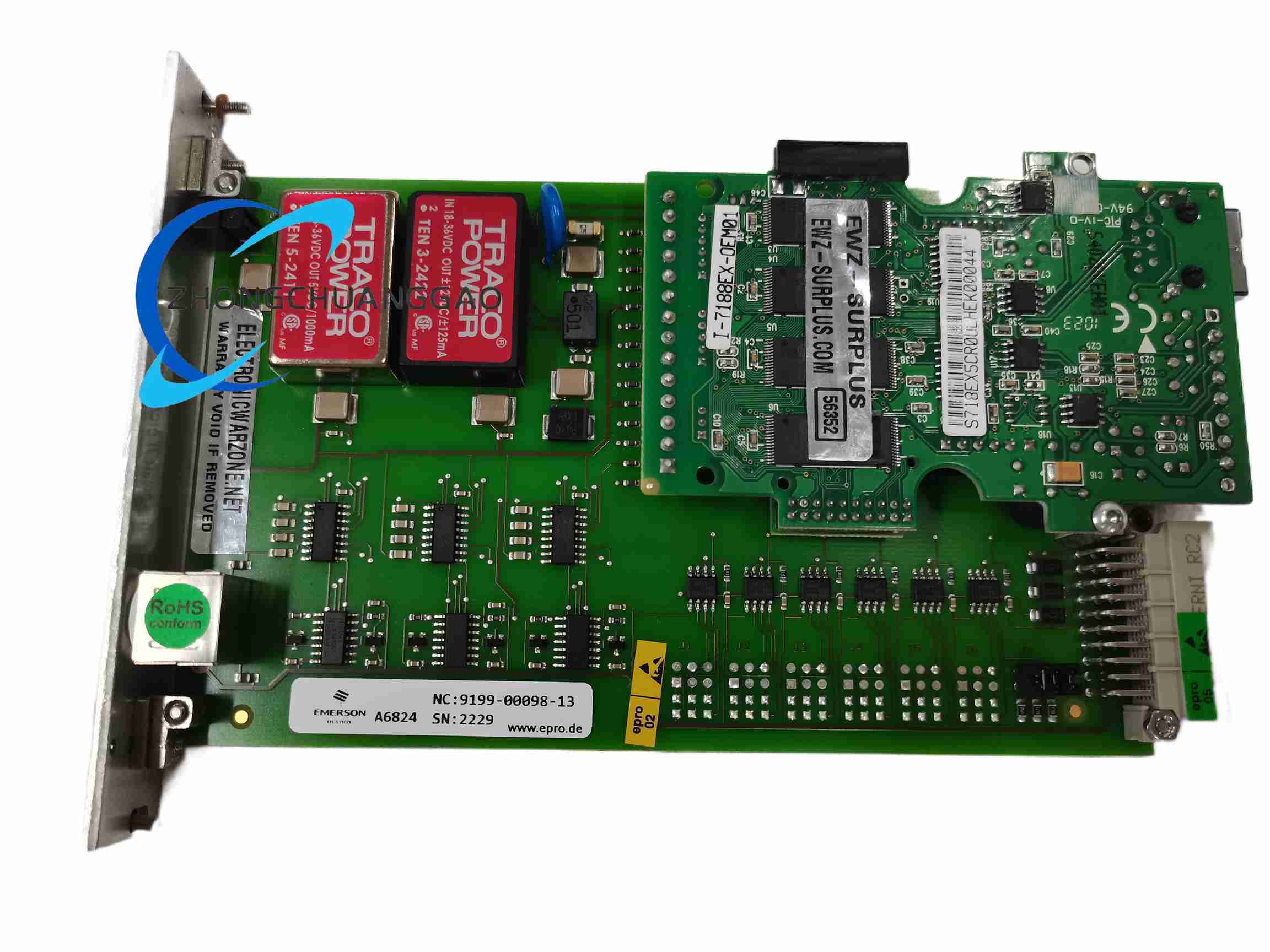

Product Name: AMS 6500 ModBus & Rack Interface Module.
Product Overview: The A6824 is a 3U-sized, 1-slot plug-in module designed to provide high reliability for critical rotating machinery. It reads parameters from all AMS 6500 modules and outputs them via ModBus TCP/IP and/or ModBus RTU (serial). It serves as a key communication gateway for machinery health monitoring, enabling seamless integration with plant-wide control systems such as Ovation® and DeltaV™.
Description
Technical Specifications:
-
Module Width: 6TE (A6824 for IMR6000 racks, no redundancy); 4TE (A6824R for IMR6500 racks, with redundancy option)
-
Communication: ModBus TCP/IP (RJ45, 10BaseT) and ModBus RTU (Serial, 19.2 kbaud, 8 data bits, Even parity, 1 stop bit)
-
Default IP Address: 192.168.255.1
-
Subnet Mask: 255.255.255.0
-
Power Consumption: 5 W max
-
Operating Temperature: 0°C to 65°C (32°-149°F)
-
Storage Temperature: -30°C to 85°C (-22°-185°F)
-
Relative Humidity: 5-95%, non-condensing
-
Protection: Module IP 00; Front plate IP 21
-
Compliance: API 670-compliant, hot-swappable
Data Types Supported: Speed, vibration (1/2x, 1x, etc.), gap value, alarm status, channel OK, phase.
Features: Password-protected user configuration; self-test monitoring of hardware, power inputs, and internal temperature; powers local graphical display on protection rack.
Application: Used for steam, gas, compressor, and hydraulic turbine machinery protection. Integrates with PlantWeb® architecture for unified machine health visibility.
Installation & Usage Notes: Install in compatible 19″ racks (IMR6000 for A6824, IMR6500 for A6824R). The module is hot-swappable. Ensure proper DIN rail mounting and RJ45/Serial connections. Vibration resistance per IEC 68-2 Part 6 (0.15 mm, 10-55 Hz), shock resistance per IEC 68-2 Part 29 (98 m/s² peak, 16 ms).
