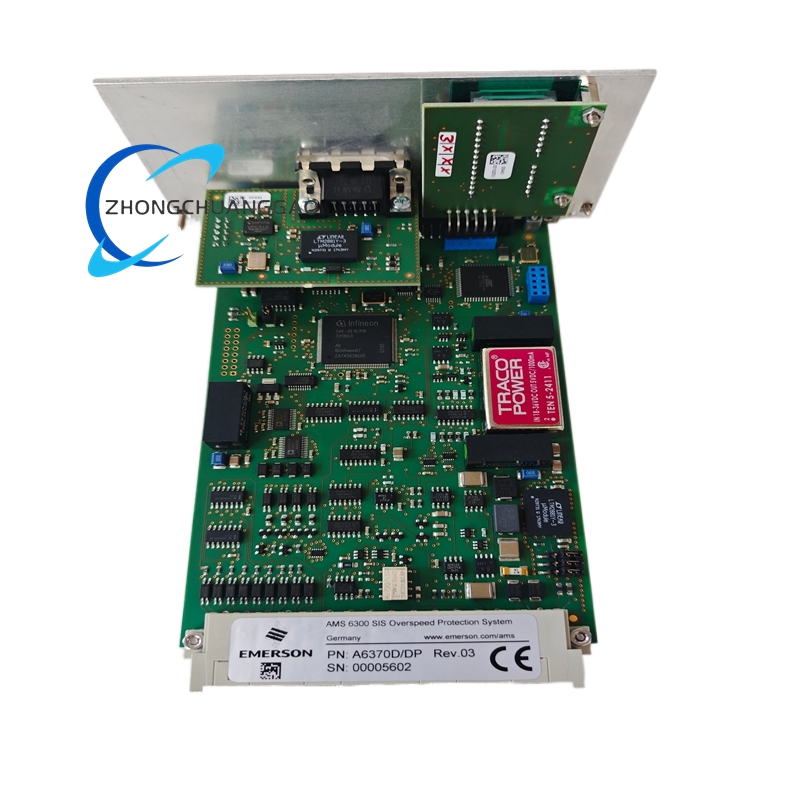

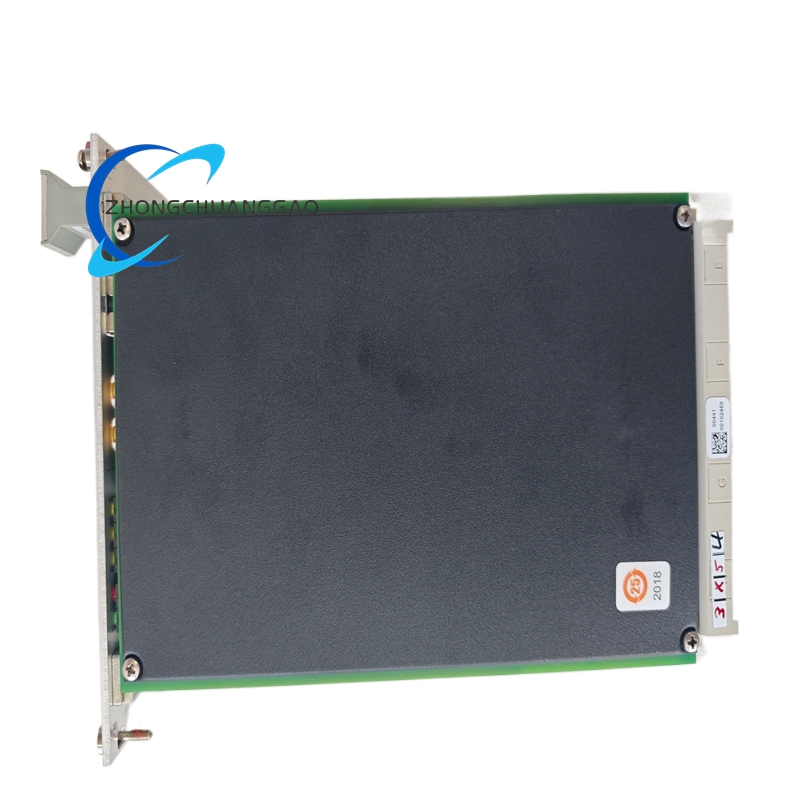

Emerson A6370DDP

Functional Features: Real-time vibration data collection, peak value alarm, trend data recording, signal filtering, multi-channel synchronous acquisition, fault early warning output.

Performance Parameters: Vibration measurement range 0 ~ 50 g, measurement accuracy ±0.5%, response time ≤100 ms, long-term continuous operation stability ≥99.9%.

Material Composition: Engineering plastic shell, copper alloy internal circuit board, stainless steel terminal connectors, flame-retardant insulating materials.

Structural Characteristics: Compact modular structure, rail mounting design, independent signal channel layout, integrated terminal wiring area, internal reinforced anti-vibration structure.

Working Principle: The module receives vibration analog signals transmitted by external piezoelectric sensors, converts analog signals into digital signals through internal AD conversion unit, filters and analyzes the digital data according to built-in algorithms, outputs standard data to upper computer system, and triggers alarm signals when data exceeds preset threshold.

Advantages & Highlights: High measurement precision, strong anti-interference capability, compact size for cabinet layout, stable long-term operation, compatible with mainstream Emerson monitoring systems, simple signal calibration.

Applicable Industries: Power generation, petrochemical, metallurgy, cement, mining, papermaking and other heavy industrial fields.

Model Series: Emerson A6300 Series Vibration Monitoring Modules

Installation Requirements: Install on standard DIN rail in industrial control cabinet; keep 20 mm ventilation gap around the module; avoid installation near high-power frequency converters and high-voltage equipment; wiring strictly distinguish signal line and power line.

Usage Notes: Regularly inspect terminal wiring tightness; prohibit disassembly during power-on operation; calibrate sensor channels every 6 months; avoid liquid and dust invasion into the shell.
