Product Short Description

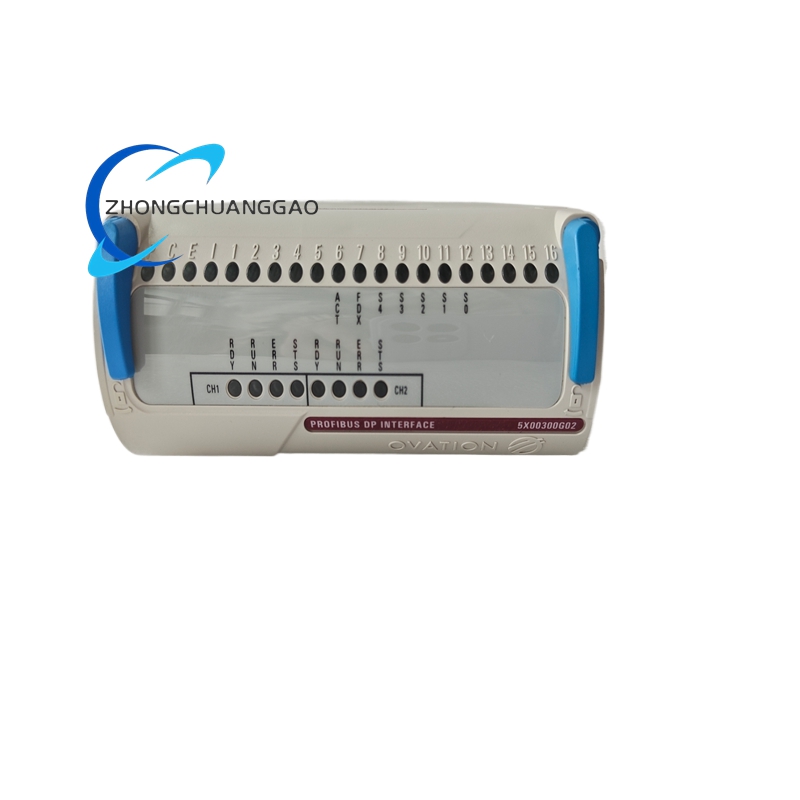

Product Name: Emerson 5X00300G02 System Interface Module
Product Series: Emerson Ovation Series DCS Communication & Interface Module
Product Brief: Core system interface module of Ovation DCS system. It realizes data interaction, protocol conversion and signal forwarding between DCS main control unit, remote I/O racks and third-party equipment, and acts as the data hub of distributed control system.
Description
- Power Supply: 24 V DC
- Operating Temperature: 0 °C ~ +60 °C
- Storage Temperature: -25 °C ~ +70 °C
- Relative Humidity: 5% ~ 95% RH (Non-condensing)
- Communication Rate: Up to 2 Mbps
- Interface Isolation Voltage: 2200 V AC
- Transmission Distance: Max 800 meters under standard wiring
- Bidirectional data transmission between DCS main control and each I/O rack
- Industrial protocol conversion for connecting third-party automation equipment
- Communication signal isolation and surge protection
- Communication link self-diagnosis, fault location and alarm output
- Data buffer and flow control to prevent data loss
- Redundant communication channel support for system reliability improvement
- Total Power Consumption: ≤ 7.5 W
- Transmission Delay: ≤ 0.4 ms
- Vibration Resistance: 10 Hz ~ 150 Hz, 0.7 g
- Shock Resistance: 12 g peak acceleration
- MTBF: ≥ 100000 hours
- Main PCB: High-speed communication dedicated multilayer PCB
- Enclosure: Flame-retardant reinforced plastic shell
- Core Components: Communication processing chip, isolation transceiver chip, surge protector
- External Interfaces: Shielded industrial communication connectors
- Internal Wiring: High-speed insulated data lines
- DCS rack-mounted standard structure, matched with system rack size
- Rear side connected to backplane bus, front side with external communication interfaces
- Internal independent partition for different communication circuits
- Built-in metal shielding layer to suppress communication interference
- Module surface with running state and link status indicators
The module serves as the intermediate hub of DCS system. It receives data packets from main controller and distributes them to corresponding I/O racks or external equipment. Feedback data from field modules and third-party devices is collected, sorted and uploaded to main control unit. The isolation and protection circuit filters interference signals on communication lines to ensure reliable data transmission.
- High-speed stable communication, support large-volume data real-time transmission
- Multi-layer isolation and protection, resist lightning surge and line interference
- Redundant channel design, avoid system paralysis caused by single link fault
- Strong protocol compatibility, convenient for system expansion and equipment docking
- Compact structure, convenient for centralized installation and management
Large-scale thermal power plants, petrochemical integrated plants, coal chemical industry, municipal large-scale energy systems
- Install in the designated slot of Ovation DCS main control rack
- Use original shielded communication cables for external connection
- Cable shielding layer strictly follows DCS grounding specifications
- Keep away from high-power frequency conversion and motor equipment
- Ensure good ventilation around the module for stable long-term operation
- Prohibit hot plugging of communication cables during system operation
- Keep communication interfaces clean to avoid poor contact caused by dust
- Regularly check link status and cable aging condition
- Do not modify internal circuit or replace non-original components
- Follow official configuration standards for communication parameters setting
