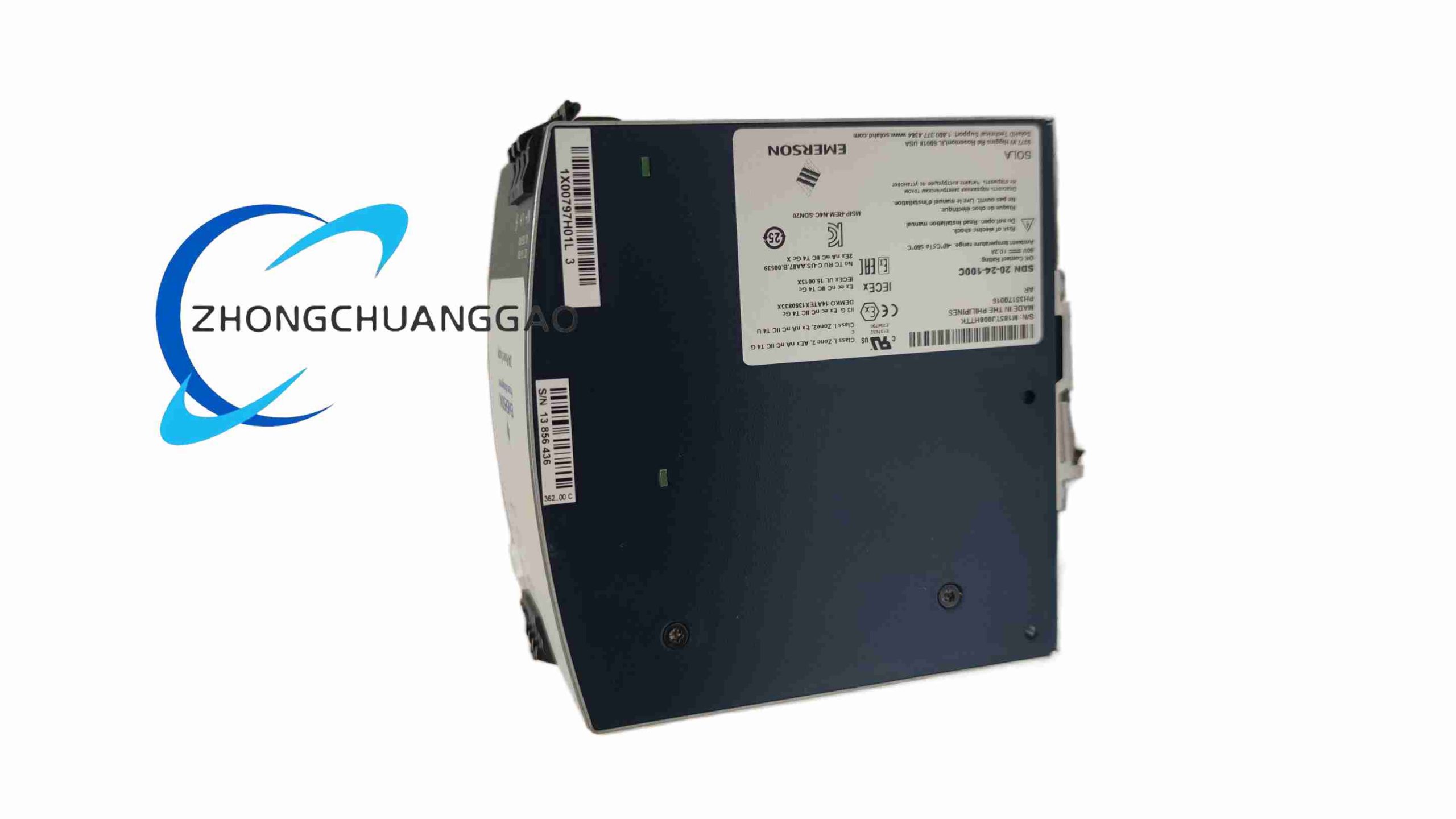

Emerson 1X00797H01L

Product Short Description

Product Name: Ovation Power Module Unit.
Product Introduction: Supplies reliable and efficient DC power to distributed control system components; designed for continuous, high-demand automation processes.
Technical Specifications:
- Output Voltage: 24–28 VDC

- Output Current: 20 A
- Input Voltage Range: 12–28 VDC
- Power Dissipation: 480 W
- Dimensions: 5.25 × 5.25 × 1.75 in. (13.3 × 13.3 × 4.4 cm)
- Weight: 1.6 kg (3.5 lbs)
- Operating Temperature: 0 to 55 °C (32 to 131 °F)
- Storage Temperature: –40 to 85 °C (–40 to 185 °F)
- Relative Humidity: 5–95% non-condensing
- Mounting: DIN rail
- Indicators: LED status indicators
- Certification: DNV GL Type Approval
Key Features:
- High power density (20 A in compact footprint)
- Active Power Factor Correction (PFC)—optimizes efficiency, reduces line harmonics
- Wide input voltage range for global deployment
- DIN rail mounting for quick cabinet installation
- Marine-grade certification (DNV GL) enables marine applications
Application: Powers Ovation DCS controllers, I/O modules, and peripheral devices in industrial automation or marine control cabinets.
Installation Requirements: DIN rail mount in standard control cabinet with proper ventilation.
Usage Notes: Supports 5–95% non-condensing humidity; ensure the input source falls within the 12–28 VDC window.
