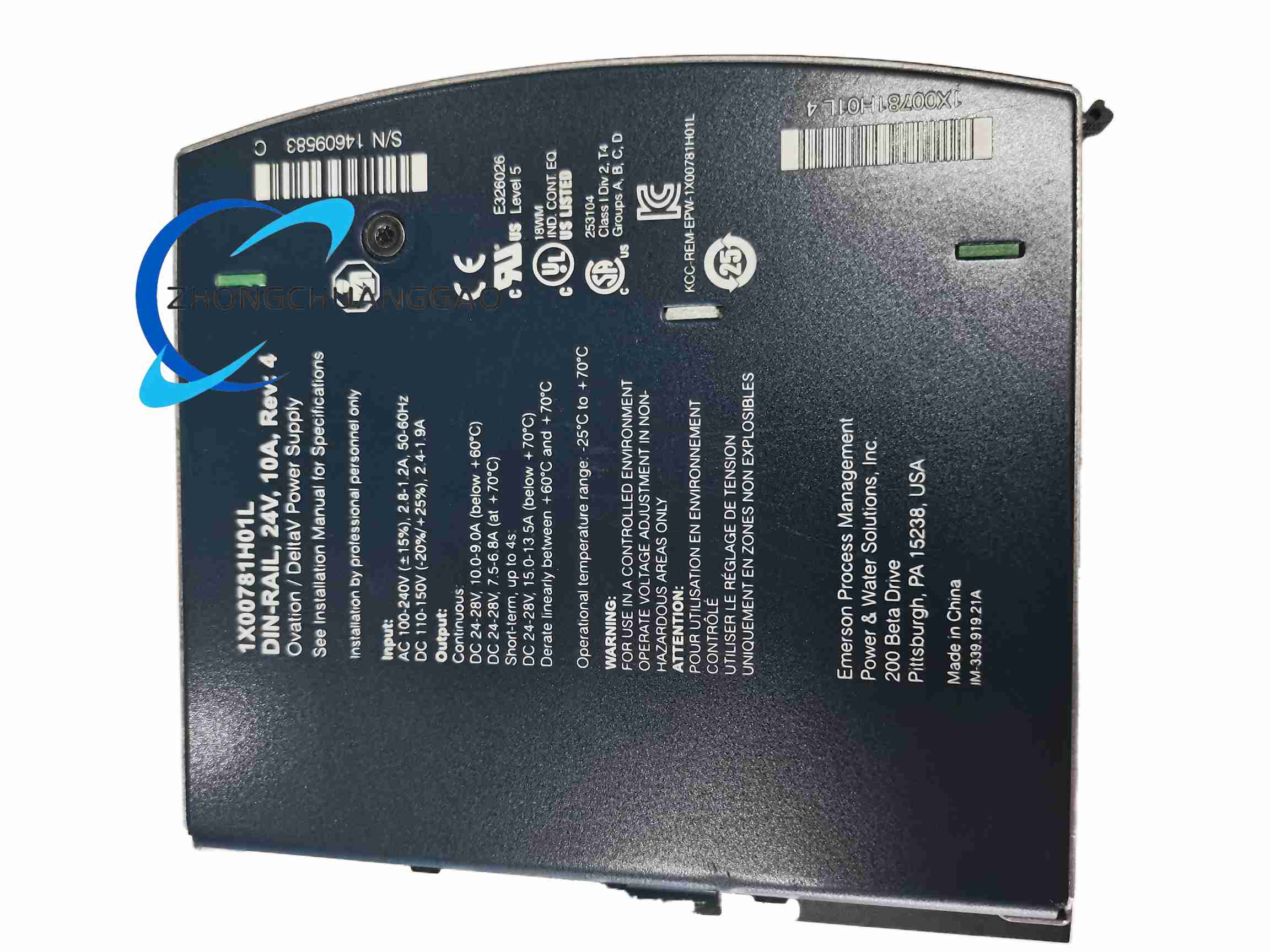

Emerson 1X00781H01L

Description

• Technical Specifications:
  • Input Voltage: 85–264 VAC (47–63 Hz) or 90–375 VDC
  • Output Voltage: 24 VDC (±1%, adjustable ±10%)
  • Output Current / Power: 10 A continuous, 240 W rated (peak ~12 A short-term, up to 360 W depending on configuration)
  • Efficiency: Up to 90–95% at full load
  • Output Ripple & Noise: < 100 mVpp
  • Protection: Over-current (auto-recovery), short-circuit (hiccup mode), over-voltage shutdown, over-temperature derating/shutdown
  • Redundancy: Supports N+1 or 1:1 parallel redundancy (requires Ovation redundant backplane or external diode module for current sharing)
  • Isolation: 3 kVAC input-output
  • Cooling: Natural convection, fanless
  • Conformal Coating: Yes (suitable for ISA S71.04 G3 corrosive environments)
  • Ingress Protection: IP20
  • Operating Temperature: –20 °C to +60 °C at full load (derated above 60 °C)
  • Storage Temperature: –40 °C to +85 °C
  • Relative Humidity: 5–95% non-condensing
  • Mounting: 35 mm standard DIN rail (EN 60715 TH35), clip-on
  • Indicators: Front-panel LEDs for Power OK / Fault / Redundancy Active
  • Certifications: CE, UL 508 / 61010-1, IEC 61326-1 (per batch)
• Application: Auxiliary 24 VDC power for Ovation I/O drops, terminal assemblies, small controllers, and third-party field devices.
• Installation Requirements: Mount on 35 mm DIN rail inside control cabinet; secure input L/N/PE and output +/– screw terminals with proper torque.
• Usage Notes: This model is discontinued—verify rack and redundant backplane compatibility before selection. Ensure adequate spacing for natural convection.
