Product Short Description

  • Product Name: Ovation Power Distribution Module (PDM), also referenced as WH1-PDM.
  • Product Introduction: A critical power distribution unit within Emerson Ovation and legacy Westinghouse DCS systems. Converts AC input to regulated DC outputs that power I/O modules, logic cards, and communication interfaces.
Share on Facebook
Share on Twitter
Email This Product

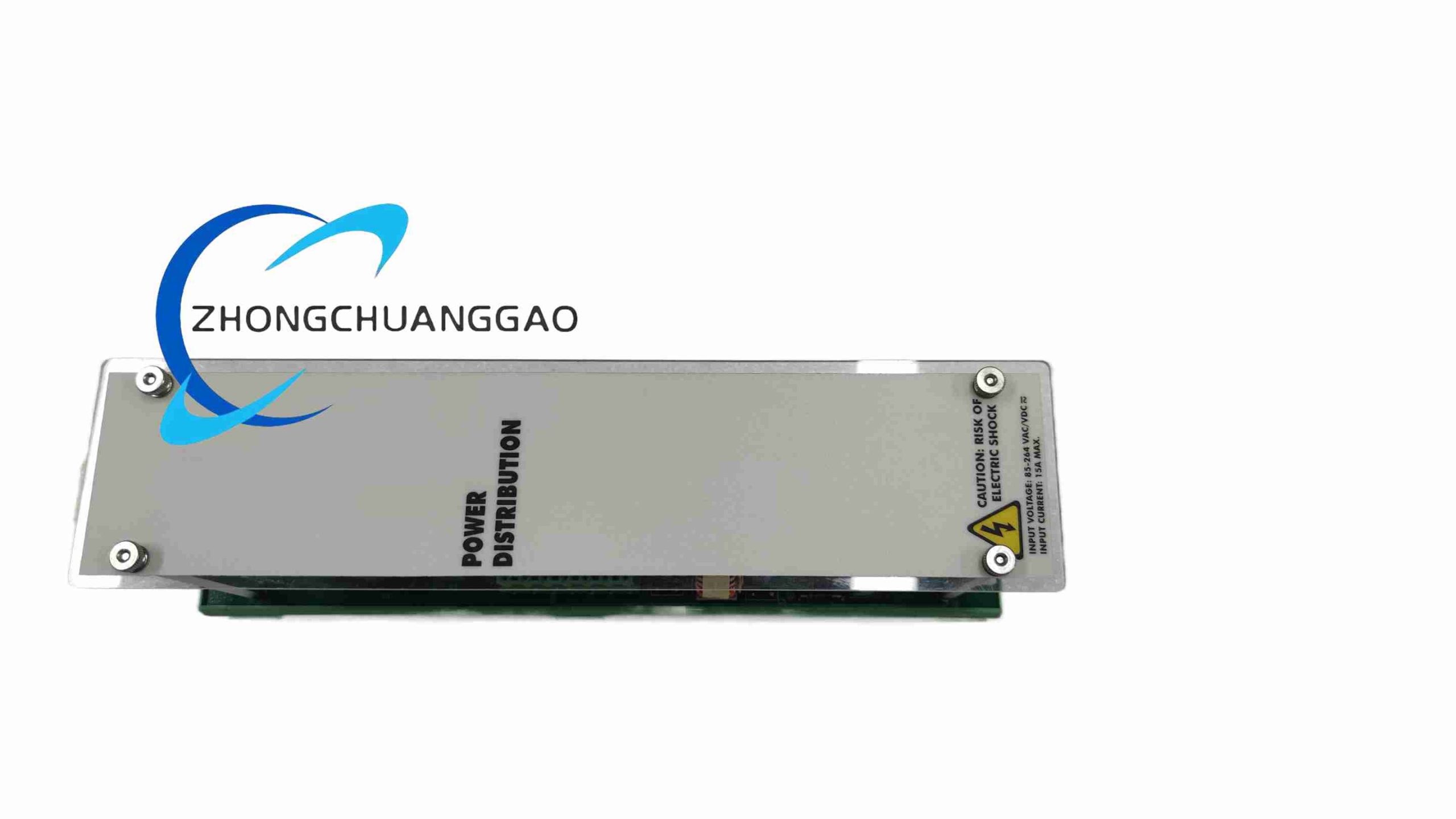

Emerson 1X00102H01

Description

  • Key Functions:
    • Hot-swap capability
    • Modular diagnostics
    • Redundant configuration support
  • Technical Specifications:
    • Input Voltage: 90–260 VAC
    • Output Voltage: 5 VDC, 12 VDC, 24 VDC
    • Mounting: Backplane mount
    • Dimensions: 12.1 × 5.2 × 16.6 cm
    • Operating Frequency: 50 Hz
  • Structural Features: Circuit-board module designed for insertion into a dedicated slot of the Ovation system rack or cabinet.
  • Operating Environment: Industrial grade; wide temperature tolerance for harsh environments.
  • Application Scenarios: Power generation, oil & gas, petrochemical, manufacturing, water & wastewater treatment.
  • Installation Requirements: Install onto the Ovation I/O backplane; ensure correct keying and torque on fixing screws.
  • Usage Notes: Verify input AC range before energizing; observe proper ESD handling when inserting/removing.
