Product Short Description

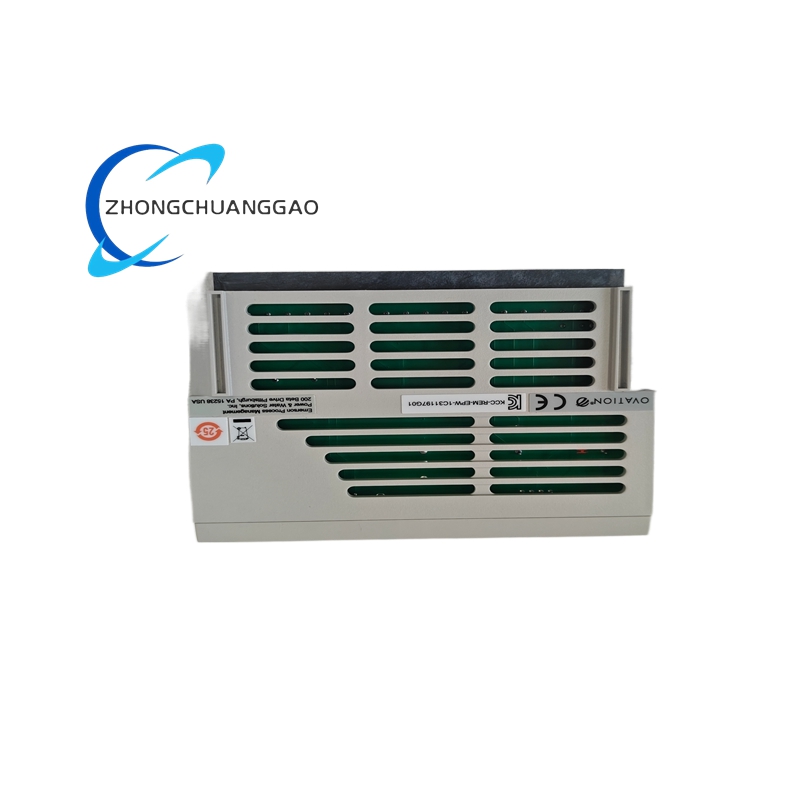

Product Name: Emerson Ovation Communication Interface Module
Product Brief: DCS system dedicated communication interface module, responsible for data interaction between Ovation main control system and third-party intelligent devices, realizing multi-protocol data transmission and protocol conversion.
Description
- Communication Port Quantity: 2 independent serial communication ports
- Supported Protocols: Modbus RTU, Modbus ASCII, custom industrial serial protocols
- Port Standard: RS-485 electrical interface
- Baud Rate Range: 1200 bps ~ 115200 bps configurable
- Operating Temperature Range: 0 °C to +60 °C
- Storage Temperature Range: -40 °C to +85 °C
- Relative Humidity: 5% ~ 95% non-condensing
Functional Features:
- Dual-port independent communication operation
- Automatic protocol identification and parsing
- Communication fault self-diagnosis and alarm
- Data buffer function to prevent packet loss
- Hot-swappable and online configuration
- Communication line fault detection
Performance Parameters:
- Isolation Voltage: 1500 VAC for each communication port
- Maximum Communication Distance: 1200 m (at 9600 bps)
- Maximum Slave Node Quantity: 32 nodes per port
- Data Bit: 7 / 8 bit configurable
- Parity Check: None / Odd / Even configurable
Material Composition:
- Housing: UL94 V0 flame-retardant ABS
- Main Board: Industrial grade FR-4 PCB
- Communication Chip: Anti-electromagnetic interference dedicated serial transceiver chip
- Terminal Connector: Shielded aviation terminal base
Structural Characteristics:
- Standard 3U rack-mount size
- Front panel equipped with communication status, running and fault LEDs
- Rear backplane bus connector
- Built-in terminal resistor switch for RS-485 bus matching
Working Principle:
The module receives data commands from Ovation DCS controller via backplane bus, converts internal bus protocol to standard RS-485 serial protocol, and exchanges data with third-party instruments, PLCs and intelligent meters. It uploads field device data to DCS system and forwards control commands downwards.
Advantages & Highlights:
- Multi-protocol compatibility, wide adaptability for third-party equipment
- Dual-port design supports two independent communication loops
- Built-in isolation circuit effectively resists common-mode interference
- Long-distance stable communication performance
Applicable Industries: All process automation industries supporting Modbus protocol, including power, chemical, metallurgy, water supply and drainage
Model Series: Emerson Ovation DCS Communication Module Series
Installation Requirements:
- Install on Ovation dedicated communication rack
- RS-485 bus uses shielded twisted-pair cable
- Terminal resistor enabled at both ends of long-distance bus
- Communication cable separated from power cable
Usage Notes:
- Set correct baud rate, parity and address matching field devices
- Do not connect over-limit number of slave nodes
- Check bus shielding and grounding regularly
- Disable communication port power before wiring
