Description
Product Overview
High-performance three-phase 480 VAC mains-fed servo drive designed for high-dynamic, high-precision motion control of permanent magnet synchronous motors, linear servo motors, and brushless DC actuators. The 1080-01355 marking is the factory unique production serial tracking identifier for unit calibration traceability.
Technical Specifications
- Nominal 3-Phase Input Voltage: 480 VAC ±10%, 50/60 Hz
- Continuous Sinusoidal Output RMS Current: 30 A (25 °C natural convection cooling)
- Peak Overload Output Current: 60 A, maximum sustained duration 100 ms
- Rated Continuous Output Power: 11.3 kW standard matched motor capacity
- Auxiliary Control Circuit Supply Power Draw: 35 VA
- Supported Control Modes: Torque (current), velocity, position, electronic cam (ECAM), master-slave gantry synchronization
- Native Industrial Communication Protocols: EtherCAT, CANopen, USB 2.0, 10/100 Ethernet TCP/IP
- Supported Encoder Feedback Types: EnDat 2.2, Hiperface, A/B/Z incremental, single/double loop gantry feedback
- Physical Enclosure Rating: IP20
- External Dimension (H×W×D): 241 mm × 86.1 mm × 180.1 mm
- Unit Net Weight: 3.25 kg
- Operating Temperature (Full Load): 0 °C ~ +40 °C; derated operation up to +50 °C
- Storage Temperature Range: -40 °C ~ +85 °C
- Compliance Certifications: CE, UL, RoHS 3.0
Material Composition
- Main Power Heat Sink: High-density extruded aluminum alloy black anodized anti-corrosion finish
- Power Switching Semiconductor Module: Silicon IGBT high-temperature power chips with silicon thermal interface compound
- Control Circuit PCB: FR4 high-Tg flame-retardant laminate gold-plated signal traces
- External Housing: Cold-rolled steel electrostatic powder-coated cabinet frame
- Signal Connectors: Shielded D-Sub multi-pin industrial grade metal shell connectors
Structural Characteristics
- Vertical panel-mount integrated heat sink architecture optimized for upward natural convection cooling
- Segregated internal power and signal circuit zones separated by electromagnetic shielding baffles

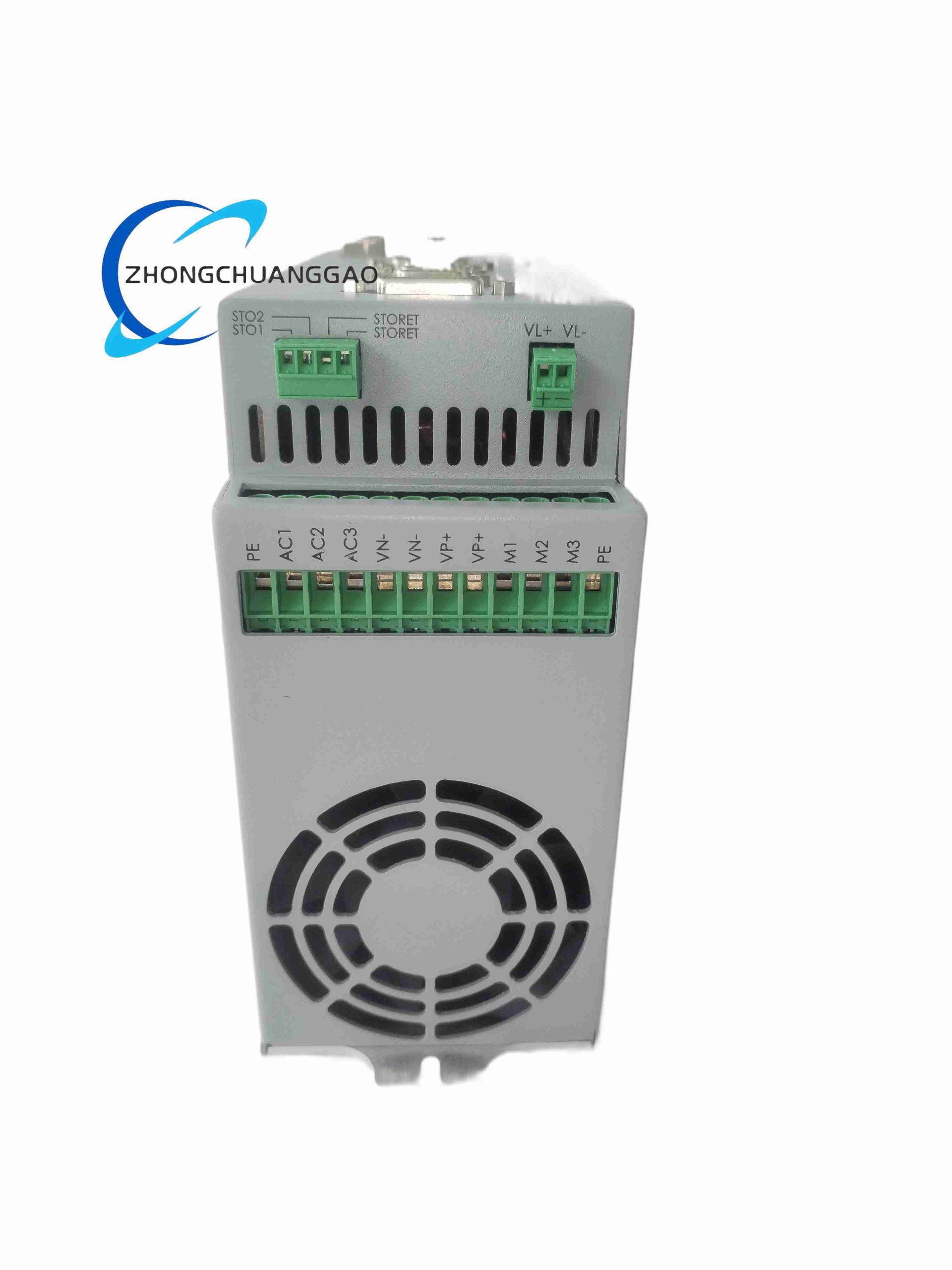

- Dedicated isolated terminal blocks for three-phase mains input, motor power output, and external braking resistor

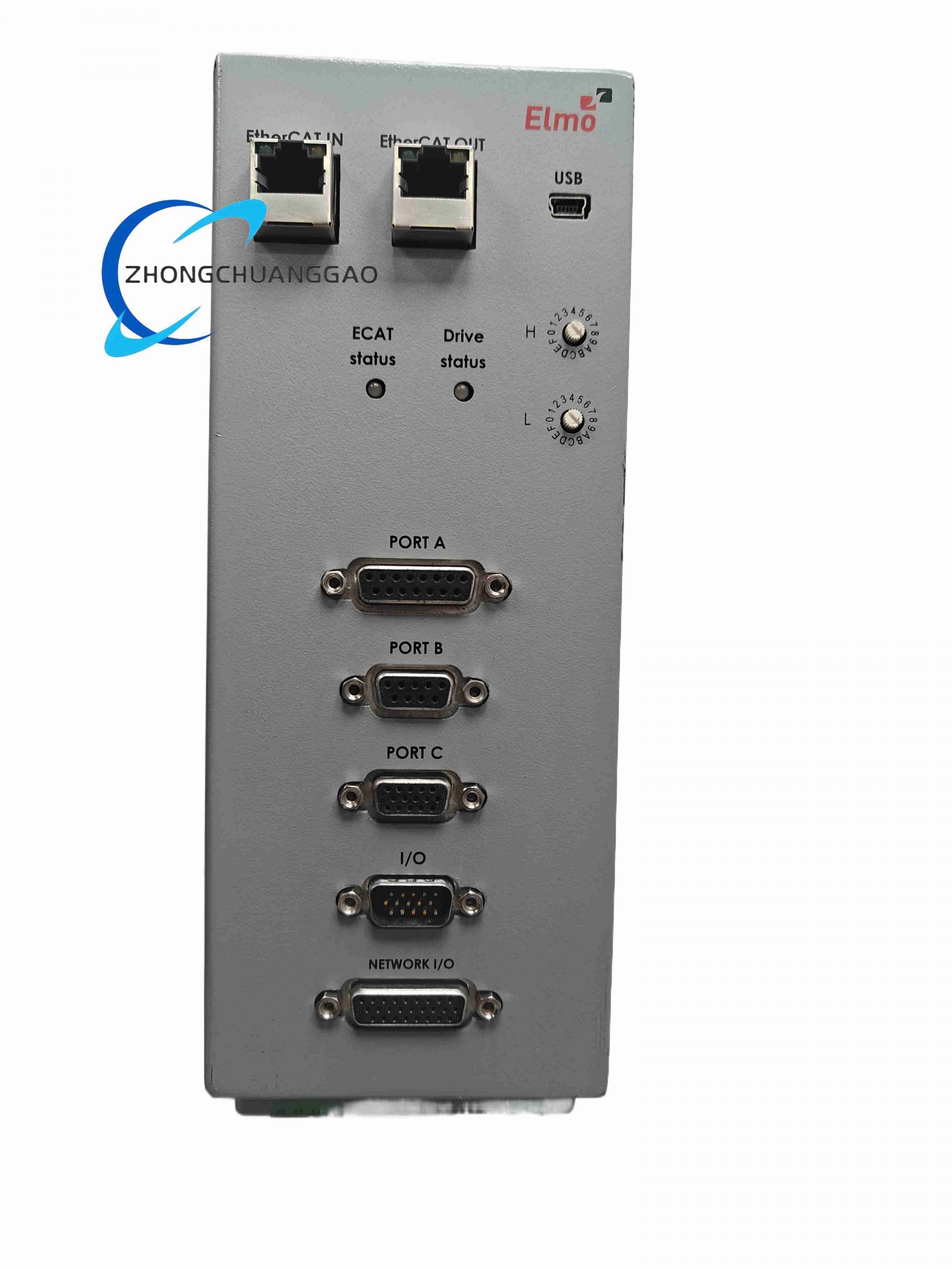

- Front panel dual Ethernet EtherCAT communication ports for daisy-chain multi-axis drive networking
- Multiple D-Sub encoder feedback, digital I/O, analog reference signal connectors on front interface panel
Working Principle
Three-phase 480 VAC mains AC power is directly rectified to high-voltage DC bus without external step-down transformers. Digital vector sinusoidal commutation IGBT power stages generate precisely modulated three-phase variable-frequency AC output to drive servo motors. Dual-core safety processor executes real-time closed-loop torque/velocity/position control algorithms with adaptive load disturbance compensation. High-speed EtherCAT industrial Ethernet achieves sub-1 µs synchronized multi-axis motion coordination; multi-type encoder feedback provides high-resolution position sampling for nanometer-level positioning accuracy. Integrated hardware fault detection continuously monitors overcurrent, overvoltage, overtemperature, and short-circuit conditions.
Function & Feature Highlights
- Direct-to-mains 480 VAC three-phase input eliminates external isolation transformers reducing cabinet footprint
- Dual EtherCAT port daisy-chain multi-axis synchronous motion control with microsecond synchronization jitter
- Native support for single-loop, dual-loop, and cross-gantry master-slave mechanical synchronization algorithms
- Built-in automatic motor parameter self-tuning for rapid commissioning without manual electrical characteristic input
- Hardware safety torque-off (STO) circuit meeting ISO 13849 PLd safety performance level
- Integrated dynamic braking transistor stage compatible with external passive braking resistors for high-speed deceleration loads
- Multi-channel digital isolated I/O (4 input / 2 output) for machine safety interlock and trigger signal integration
Core Advantages
- High power density compact design for space-restricted automated equipment cabinet layouts
- Advanced thermal management system enables continuous full-load operation at 40 °C ambient temperature
- Multi-protocol universal communication eliminates expensive protocol adapter hardware for heterogeneous control system integration
- Adaptive disturbance suppression algorithm compensates mechanical backlash, friction, and variable load mass fluctuations
- Complete CE/UL industrial safety certification for global equipment export compliance
- Long service cycle design with minimum 10-year MTTFd mean time to dangerous failure
Applicable Industries
Semiconductor wafer handling & dicing equipment, precision CNC machine tools, high-speed packaging automation, lithium-ion battery manufacturing equipment, aerospace component test rigs, electronic surface mount assembly equipment, medical precision robotic positioning systems
Installation Requirements
- Mandatory vertical panel mounting orientation; horizontal installation blocks natural convection airflow triggering overtemperature fault shutdown
- Minimum 50 mm vertical clearance above and below unit for heat sink exhaust circulation
- Three-phase mains input wiring must use shielded high-temperature power cable with dedicated equipment grounding conductor
- EtherCAT communication cable must use Cat5e industrial shielded Ethernet cable with maximum segment length 100 meters
- External braking resistor wiring must be rated for continuous peak current matching drive overload specification
Usage Precautions
- Ambient operating temperature exceeding 40 °C requires output current derating proportional to temperature rise
- Unshielded motor power cables create severe electromagnetic noise interfering with encoder feedback signals and communication buses
- Never energize drive without connected motor feedback encoder; open-loop operation triggers irreversible position control instability
- Short-circuit of motor output terminals causes instantaneous IGBT power module destruction
- Annual thermal interface compound inspection required for heavy continuous duty cycle equipment to prevent heat sink delamination and overtemperature faults
