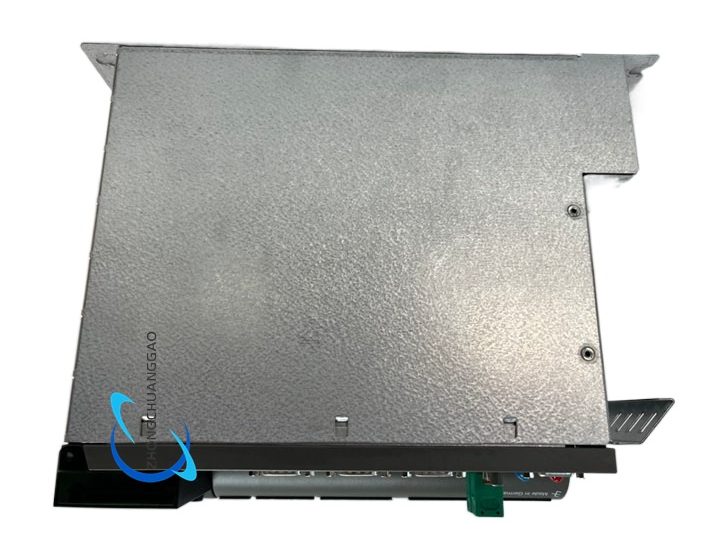

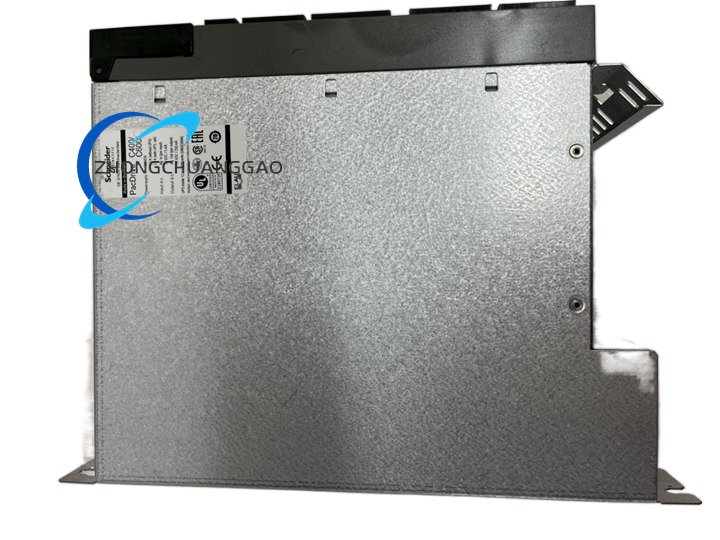

ELAU C400A811110

Description

• • Product type: High-performance motion controller
  • Platform: ELAU PacDrive series
  • Synchronous axes: Up to 8 axes (4-axis response ≤ 2 ms, 8-axis response ≤ 4 ms)
  • Interpolation: 2D linear interpolation and circular arc interpolation
  • Programming standard: IEC 61131-3 (Ladder, Structured Text, etc.)
  • Communication protocols: EtherCAT, CANopen, Modbus
  • Protection: Built-in overload, short-circuit, phase-loss protection
  • Dimensions: 275 mm × 130 mm × 146 mm
  • Operating temperature: –10°C to +20°C
  • Storage temperature: –20°C to +75°C
• Key Features: 8-axis synchronous control, 2D linear & circular interpolation, IEC 61131-3 programming, EtherCAT/CANopen/Modbus connectivity, integrated protection functions.
• Functional Characteristics: Executes high-speed logic operations, multi-axis synchronization, and precision trajectory planning for packaging and processing equipment.
• Application Scenarios: Labeling machines, precision slitting, high-speed packaging lines, and other equipment requiring complex coordinated motion.
• Structural Characteristics: Compact controller unit (275×130×146 mm) with industrial-grade housing, designed for panel or cabinet mounting.
• Working Principle: Receives motion commands via EtherCAT/CANopen/Modbus, calculates synchronized trajectories for up to 8 axes, and outputs control signals to servo drives while performing real-time closed-loop compensation.
• Installation Requirements: Mount in a control cabinet with adequate ventilation; ensure operating temperature stays within –10°C to +20°C; connect fieldbus cables with proper shielding.
• Usage Notes: Use only IEC 61131-3 compliant development tools; avoid exceeding the rated axis count; ensure proper grounding to prevent EMC issues; perform regular firmware updates through authorized channels.
