Product Short Description
Manufacturer: ELAU (Schneider Electric)
Product Overview:

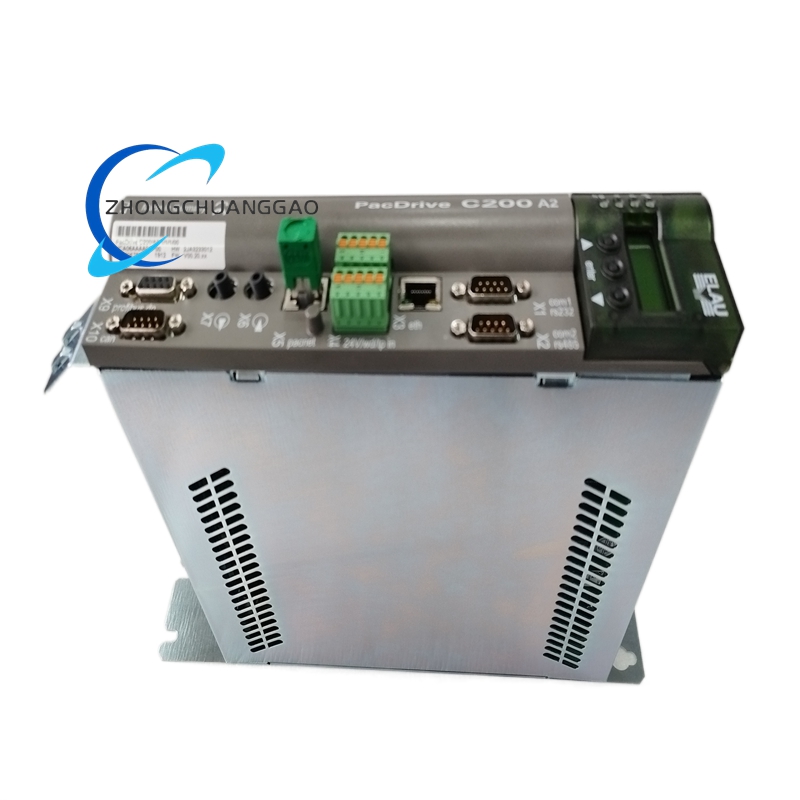

The ELAU C200A211100 is a compact servo drive from ELAU’s C200 series, designed for single-axis motion control of servo motors. The suffix breakdown: C200 = series, A = variant, 211100 = specific configuration code (voltage, current, feedback type).
Description
Technical Specifications:
| Parameter | Value |
|---|---|
| Series | C200 (Compact Servo Drive) |
| Axis Count | 1 axis (single-axis drive) |
| Continuous Output Current | 6.0 Arms (peak: 18 A) |
| DC Bus Voltage | 310–340 VDC (from 230V AC rectifier) |
| AC Input Voltage | 200–240V AC (single-phase) or 380–480V AC (three-phase) |
| Rated Motor Power | Up to 2.2 kW (continuous) |
| Control Mode | Velocity, Position, Torque |
| Positioning Accuracy | ±1 encoder count (with absolute feedback) |
| Velocity Bandwidth | Up to 200 Hz |
| Current Bandwidth | Up to 1,000 Hz |
| Encoder Input | Incremental (TTL/RS-422): 5V differential, up to 8 MHz |
| Encoder Types | Sin/Cos, TTL, Hiperface, EnDat, SSI (option-dependent) |
| Communication | CANopen, EtherCAT (with option module), RS-232 |
| Digital I/O | 8 inputs, 4 outputs (24VDC) |
| Analog I/O | 1 analog input (±10V), 1 analog output (±10V) |
| Brake Output | 24VDC, 2A (for electromagnetic brake) |
| Power Consumption | Approximately 800W (at rated load) |
| Dimensions (W x H x D) | 140 x 160 x 200 mm |
| Weight | Approximately 3.2 kg |
| Mounting | DIN-rail (35mm) or panel mount |
| Cooling | Forced air (built-in fan) |
| Operating Temperature | 0°C to +45°C (derate above 40°C) |
| Certifications | CE, UL, RoHS |
Functional Features:
- Three-loop control: Current loop (1kHz), Velocity loop (200Hz), Position loop (configurable)
- Automatic tuning (motor identification via no-load and locked-rotor test)
- Electronic gearbox function for cam profiles and synchronized multi-axis motion
- S-curve acceleration/deceleration for smooth motion
- Safe Torque Off (STO) — SIL2/SIL3 certified (with option)
- Firmware upgradeable via CANopen or RS-232
Working Principle:
The drive rectifies AC input to DC bus (310–340VDC). The IGBT inverter stage (6-switch, 3-phase bridge) synthesizes variable-frequency, variable-voltage AC to the servo motor using Space Vector PWM (SVPWM). The current loop (inner loop, 1kHz) controls motor torque, the velocity loop (middle loop, 200Hz) controls speed, and the position loop (outer loop) controls position. The encoder feedback closes all three loops.
Advantages:
- Compact footprint — 140 x 160 x 200 mm
- High current bandwidth (1kHz) — excellent torque response
- Multiple feedback options — compatible with most encoders
- CANopen + EtherCAT — easy integration into modern networks
Applicable Industries:
Packaging machinery, printing presses, textile machines, material handling, conveyor systems, laboratory automation
Installation Requirements:
- Mount on DIN-rail or vertical panel with minimum 50mm clearance above/below
- Connect AC power via dedicated circuit breaker (10A for 230V, 6A for 400V)
- Connect motor power cables (3-phase + PE, max 10m, shielded recommended)
- Connect encoder cable using shielded twisted pair (max 15m for TTL, 50m for RS-422)
- Ground the drive chassis and motor frame
Usage Notes:
- Perform auto-tuning before first operation (mandatory)
- Set current limit to 110% of motor rated current during tuning
- Use shielded cables for encoder — route away from power cables
- Update firmware via ELAU PowerFacts software or CANopen SDO
