Product Short Description

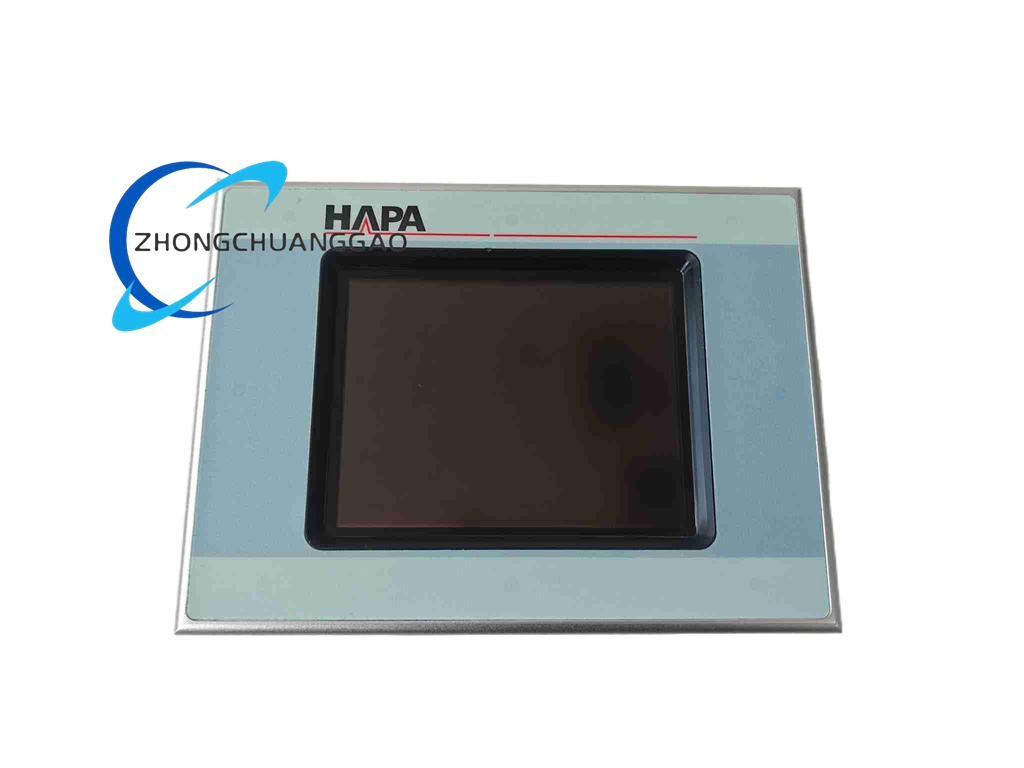

Product Brief: 5.7-inch industrial touchscreen human-machine interface supporting MPI communication for industrial automation monitoring and operation.
Technical Specifications
- Display Size: 5.7 inch TFT LCD
Description
- Power Supply: 24 VDC
- Touch Type: Resistive touch screen
- Communication Interface: MPI interface
- Operating Temperature: 0 °C ~ +50 °C
- Front Panel Protection: IP65
Function Features
- Graphical industrial operation interface, real-time data display
- MPI bus communication for direct connection with PLC systems
- Support alarm logging, recipe storage, trend curve display
- Multi-language text display support
Application Scenarios: Packaging machines, textile equipment, injection molding machinery, small production line control stations
Material Composition: ABS reinforced plastic front housing, TFT liquid crystal module, resistive touch film, sealed silicone gasket
Structural Features: Embedded panel mounting design, front panel fully sealed, rear housing with wiring terminals
Working Principle: Receives real-time data from PLC via MPI bus; displays parameters on LCD; converts touch operation into control instructions and sends back to PLC
Installation Requirements: Embedded cabinet cutout installation; install sealing gasket to guarantee IP65 protection
Usage Notes
- Prevent liquid and dust intrusion from rear housing
- Avoid sharp objects scratching touch surface
- Stabilize 24 VDC power supply to avoid voltage fluctuation
