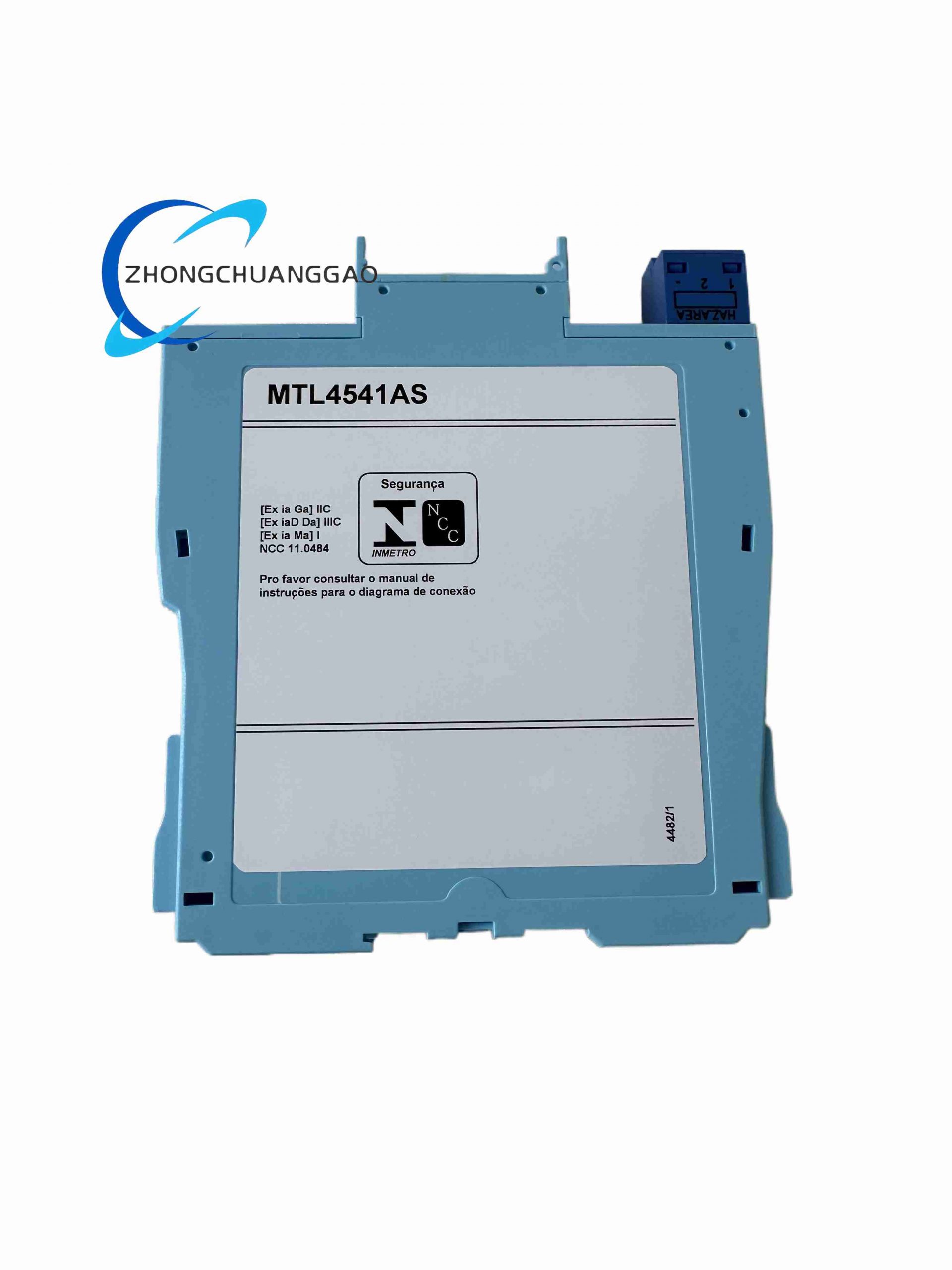

Single-channel intrinsically safe signal isolator from Eaton MTL 4500 series, designed to interface 4–20mA HART-enabled process transmitters installed in Zone 0/1/2 hazardous explosive industrial areas with safe-area DCS/PLC analog input modules. The AS variant is configured as a safe-side current sink load design, differing from standard MTL4541A current source models. Certified for functional safety instrumented systems up to SIL2 single-module deployment.
Description
Technical Core Specifications
- Signal Compatibility: Passive 4–20mA analog loop with full bidirectional HART digital communication overlay
- Circuit Architecture: Galvanic magnetic transformer isolation between hazardous and safe circuit sides
- Power Supply Requirement: 20–35 VDC cabinet supply; typical operating current 45mA at 24VDC
- Safe Side Load Configuration: Current sink (MTL4541AS exclusive circuit topology)
- Intrinsic Safety Certification: IEC 60079-11 Ex ia IIC / Ex ib IIB for gas hazardous zones
- Functional Safety Rating: SIL2 capable (HFT=0 single unit); SIL3 via redundant dual-module voting architecture
- Channel Count: Single independent signal channel per module
- Termination: Split-level 6-way screw terminal blocks for hazardous area and safe area wiring separation
- Mounting: Standard MTL 4500 series 8/16-slot DIN mounting backplane
- Operating Temperature: -20°C ~ +60°C standard; extended -40°C ~ +70°C with conformal coated backplane
- Max Wire Gauge Compatibility: 2.5 mm² (14 AWG) solid/stranded field wiring
Functional Features
- Full transparent bidirectional HART signal transmission without attenuation for remote transmitter calibration and diagnostics
- Complete galvanic electrical isolation eliminates ground loop interference between hazardous field wiring and central control cabinets
- Internal energy limiting resistors and Zener diode safety network restrict voltage/current entering hazardous zones to non-ignition levels for explosive gas atmospheres
- Green power status LED indicator confirms backplane DC supply integrity
- Built-in reverse polarity protection for safe-side and hazardous-side wiring connections
- Short-circuit current limiting protection prevents damage to field transmitters under wiring fault conditions
- Modular plug-and-play design allows individual module hot swap without powering down the entire backplane rack
- Compliance with IEC 61508 functional safety standard for process safety loop deployment
Material & Structural Composition
- Module Housing: Flame-retardant black polycarbonate industrial plastic with impact resistance rating IK08
- Internal Isolation Components: High-insulation ferrite core isolation transformers, high-voltage withstand isolation barrier material
- Safety Circuitry: Precision wire-wound energy limiting resistors, low-leakage Zener safety diodes, thermal fuse over-temperature protection
- Terminal Blocks: Nickel-plated copper screw terminals with spring wire retention clips to prevent loose field wiring
- Backplane Contact Pins: Gold-plated copper alloy for long-term low-resistance electrical connection
Working Principle
The MTL4541AS splits the process signal circuit into two fully isolated electrical domains: hazardous area field circuit and safe area control circuit. A magnetic transformer barrier transfers analog 4–20mA current and superimposed HART digital signals without conductive electrical connection. Integrated intrinsic safety components limit maximum voltage, current and power delivered to the hazardous zone to levels incapable of igniting flammable gas/vapor mixtures. The AS sink topology absorbs loop current from safe-area DCS analog input cards and mirrors identical current levels to the hazardous-side transmitter loop for accurate process measurement transmission. Internal fault protection circuits automatically limit output energy during wiring short-circuit or reverse polarity misconnection.
Installation Requirements
- Entire backplane rack must be installed inside IP54 minimum rated industrial control cabinet to block dust and moisture ingress
- Hazardous area field wiring must use certified intrinsically safe cable with dedicated blue insulation jacket per IEC 60079-14 standard
- Maintain physical separation minimum 50mm between intrinsically safe field wiring and non-safe high-voltage power cables inside cabinet
- All cabinet earthing connections must be bonded to factory building protective earth with 4mm² copper earth wire
- Mount backplane horizontally or vertically only; avoid enclosure locations exposed to direct process fluid splashing
- Crimp all stranded field wire ends with certified wire ferrules before inserting into terminal block screw clamps
Application Scenarios
Petrochemical refinery process measurement, natural gas pipeline pressure/temperature transmitters, chemical batch reactor monitoring, offshore oil platform instrumentation, pharmaceutical explosive solvent production plants, coal mine underground gas detection transmitters, fertilizer plant hazardous zone flow meters
Operation & Maintenance Notes
- Installation, wiring and commissioning must be performed by certified intrinsically safety qualified electrical technicians
- Do not modify internal module circuitry or replace factory safety components with non-original spare parts; safety certification voided upon modification
- Conduct annual loop integrity testing to verify isolation barrier resistance and HART communication performance
- Avoid installation in environments with continuous corrosive chemical vapor exposure; specify conformal coated backplane for such sites
- When replacing modules, disconnect hazardous field wiring first before removing unit from backplane to eliminate ignition risk
- Maintain module dust-free surfaces; compressed air cleaning only with power supply fully disconnected
