Product Short Description

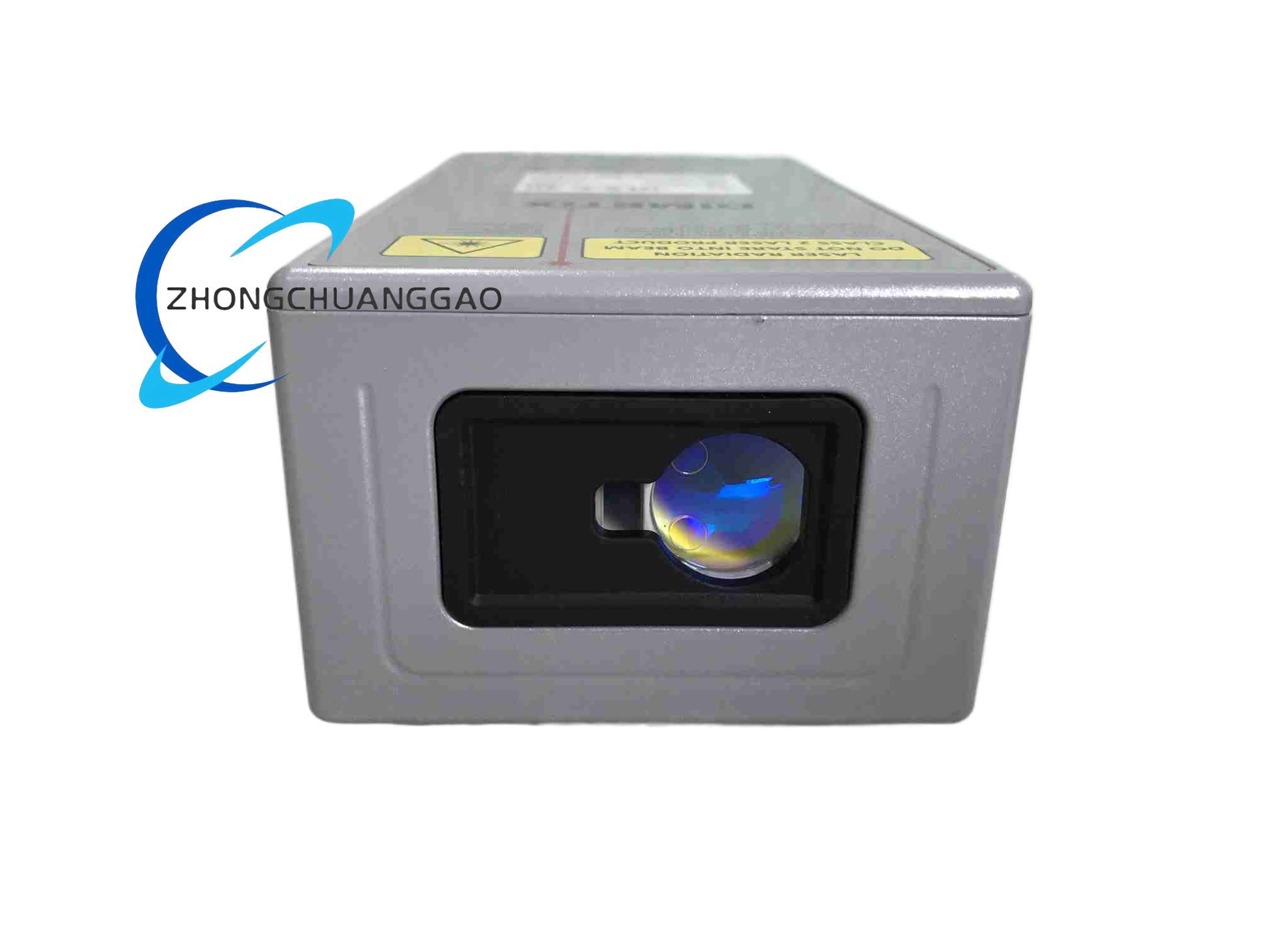

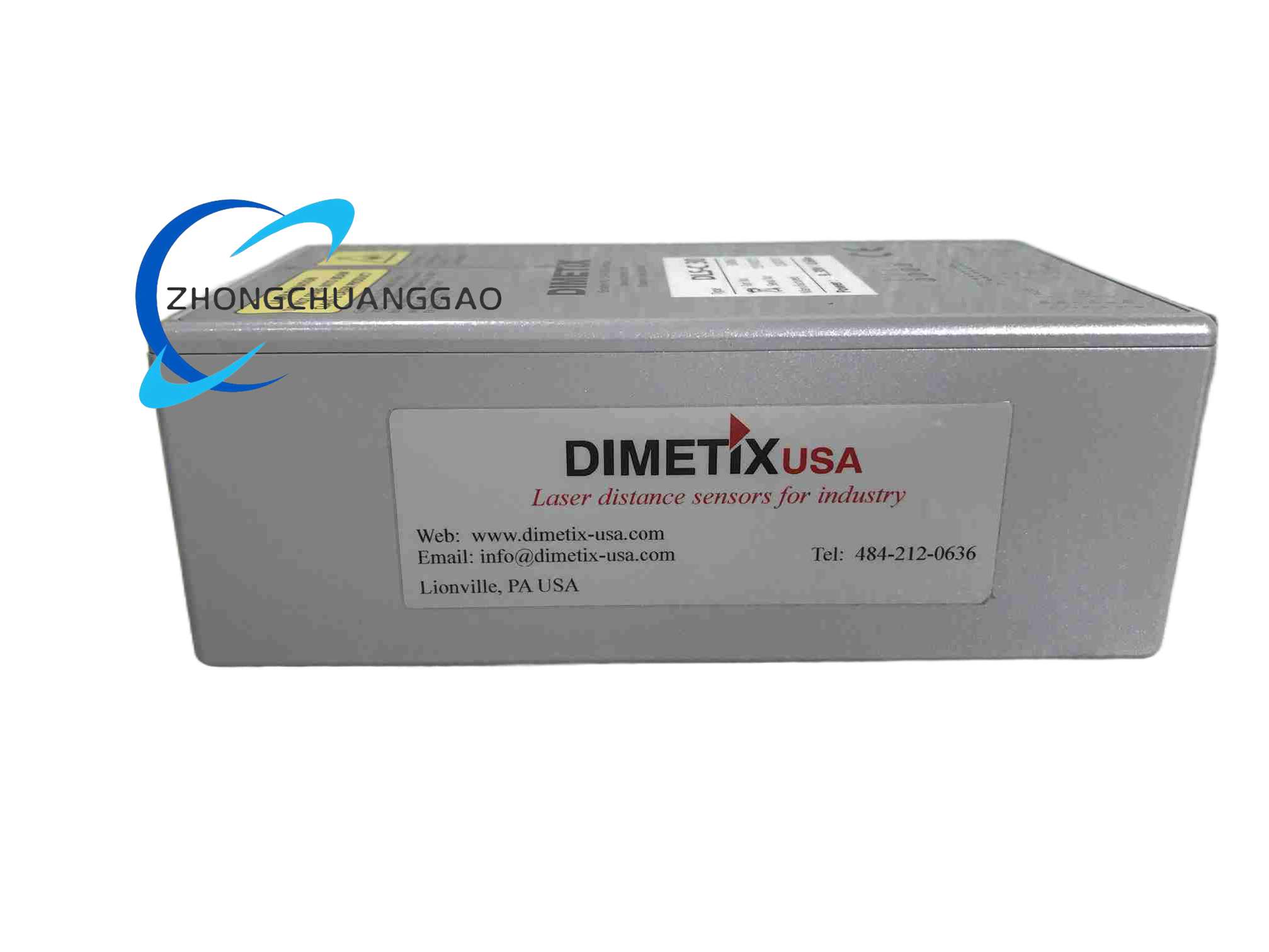

Product Name: DIMETIX DLS-C30 Industrial Laser Distance Sensor
Product Overview: The DIMETIX DLS-C30 is a long-range industrial laser distance sensor from the D series, designed for non-contact absolute distance measurement up to 150 m. It is built for heavy industrial and outdoor applications with a robust metal housing and IP65 protection.
Description
Technical Specifications:
- Measuring Range (natural surface): 0.05 … ~65 m
- Measuring Range (with reflector): ~25 … 150 m
- Typical Accuracy @ ±2σ (±1σ): ±3 mm (±1.5 mm)
- Repeatability @ ±2σ (±1σ): ±0.5 mm (±0.25 mm)
- Maximum Measurement Frequency: 6 Hz
- Maximum Output Frequency: 6 Hz
- Working Temperature: –10 … +50 °C
- Protection Class: IP65
- Working Voltage: 9 … 30 V DC
- Working Current @ 24 V DC: 0.6 A
- Laser Class: 2 (< 1 mW), red visible laser
- Laser Spot Size @ 10 / 50 / 100 m: 8 / 25 / 40 mm
- Dimensions (L×W×H): 150 × 80 × 55 mm
- Weight: 690 g
Interface & Output:
- Programmable analog output: 0/4 … 20 mA (accuracy ±0.2%)
- Digital input: 1 channel
- Digital outputs / error display: 2 / 1 (NPN type)
- Serial communication: RS-232, RS-422 / RS-485
- Optional: PROFIBUS (external)
- Connectors: M12 (5-pin), D-Sub (15-pin), terminal block
Functional Features:
- Automatic stand-alone operation mode
- Direct connection to external displays
- Adjustable measurement constants (increase/decrease)
- Data filtering function
- Adjustable measurement behavior
- Configurable sensor ID
- External trigger function for moving object measurement
Housing Material: Solid metal housing with IP65 sealing for harsh industrial environments.
Working Principle: The sensor emits a visible red laser (Class 2) toward the target. The time-of-flight or phase-shift measurement determines the absolute distance. The result is output via analog, digital, or serial interfaces.
Application Scenarios: Automotive, paper, metal, and textile industries for dimensional measurement, position detection, and distance monitoring in heavy industrial and outdoor environments.
Installation Requirements:
- Mount with solid metal housing exposed to target
- 9–30 V DC power supply
- M12 or D-Sub connector for signal interface
- Operating temperature –10 … +50 °C
Usage Notes:
- Laser Class 2—avoid direct eye exposure
- For ranges beyond 65 m on natural surfaces, use reflective tape/target
- 6 Hz maximum measurement rate—suitable for static or slow-moving targets
- IP65 protection allows outdoor and wash-down environments
