Product Short Description

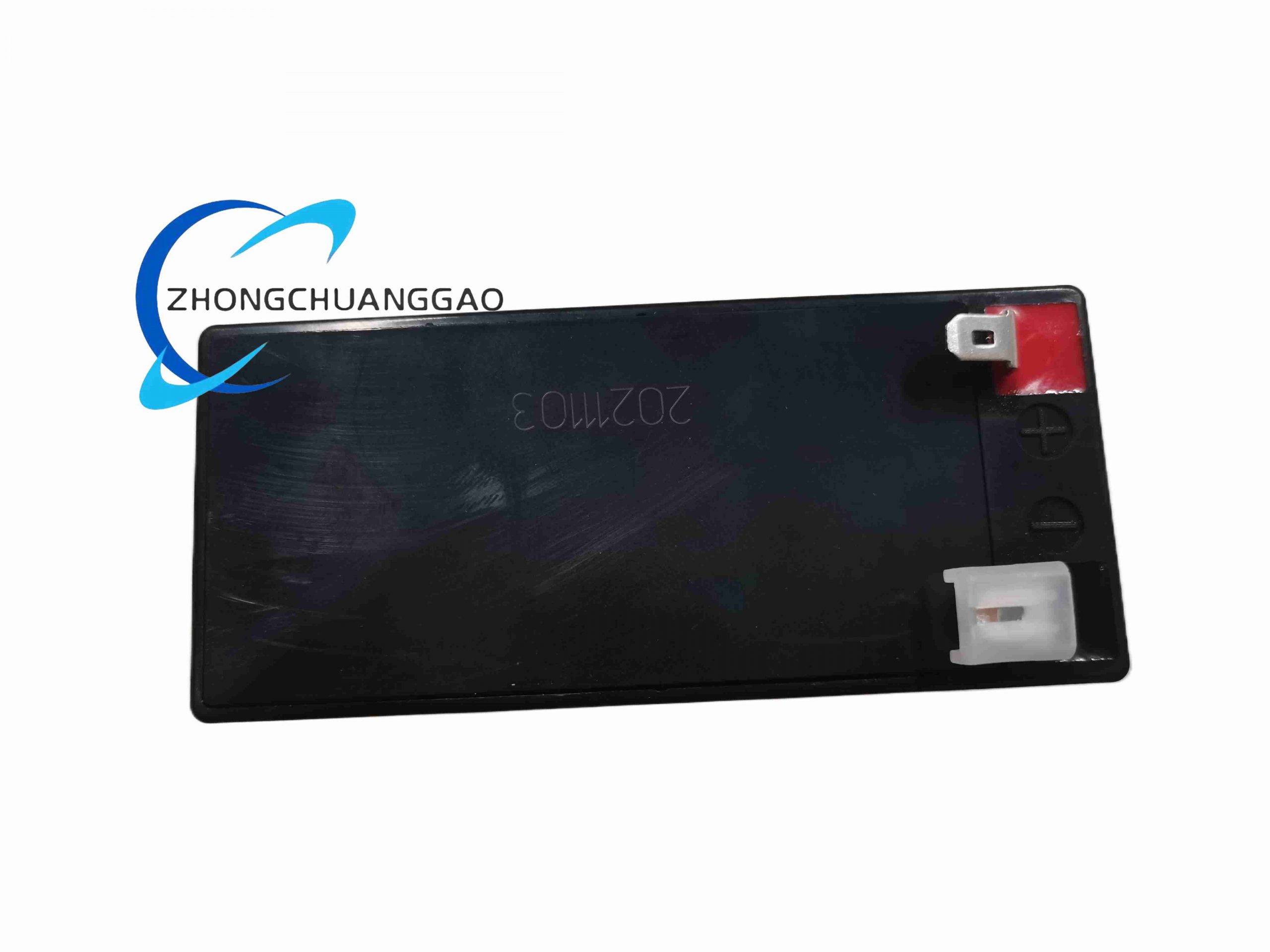

Product Overview: VRLA AGM battery for standby power, UPS, laboratory equipment, and industrial power packs. It provides stable 12 V output and supports float and cycle charging.
Technical Specifications: Nominal voltage 12 V from six cells in series. Nominal capacity 12 Ah at 20-hour rate to 10.50 V at 600 mA. 11.4 Ah at 10-hour rate. 10.2 Ah at 5-hour rate. 7.2 Ah at 1-hour rate to 9.30 V. Internal resistance approximately 18 mΩ at full charge. Weight approximately 4030 g. Maximum discharge current 180 A for 5 seconds. Maximum charge current 3.6 A. Standard terminal T2, optional T1.
Description
Dimensions: Length 151 mm. Width 98 mm. Container height 94 mm. Total height 98 mm with terminals.
Environmental Parameters: Charge ambient 0 to 40 °C. Discharge ambient -20 to 50 °C. Storage ambient -20 to 40 °C. Standby charging voltage 2.25 to 2.30 V/cell at 20 °C. Cycle-service charging voltage 2.40 to 2.50 V/cell. Temperature compensation required outside 5 to 35 °C.
Material And Structure: ABS case. Lead alloy plates. Glass-mat separator holding electrolyte. Pressure-relief safety valves. Sealed terminals. The AGM design allows operation in multiple orientations without leakage under normal valve operation.
Working Principle: Electrochemical reactions between lead-dioxide positive plates and sponge-lead negative plates in sulfuric electrolyte generate DC voltage. During charging, electrical energy restores active material; during discharging, chemical energy delivers current to the load.
Installation Requirements: Install in ventilated battery compartment or UPS bay. Use correctly sized cables and terminal torque. Maintain ambient temperature within charge/discharge limits. For standby service use constant-voltage charging with current restriction. For cycle service use constant-voltage and constant-current charging per manufacturer schedule.
Usage Precautions: Do not short terminals. Do not exceed 3.6 A charging current. Do not expose to open flame or incinerate. Inspect valves and case for swelling. Equalize charging only under recommended schedule. Recycle according to local battery disposal regulations.
