Product Short Description

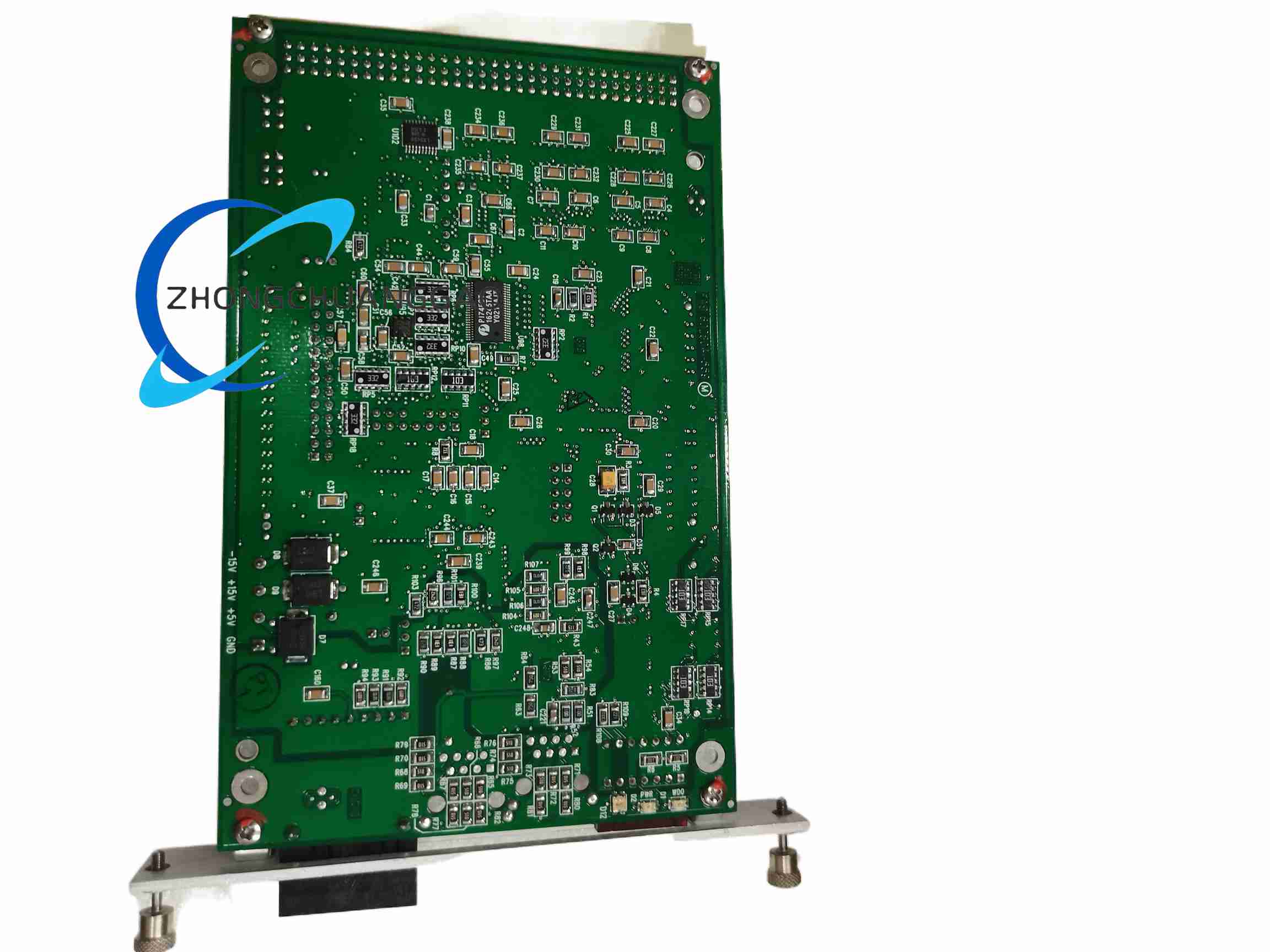

Product Name: 3U MACRO CPU Board (MACRO-CPU), part of UMAC MACRO / MACRO Stack
Product Introduction: The 602804-109 (belongs to the 3A0-602804-10x family) is the processor and MACRO ring interface board at the heart of Delta Tau’s 3U MACRO Station. It executes motion-control firmware and communicates with PMAC2 Ultralite or Turbo PMAC2 Ultralite masters via the electrically isolated MACRO ring, providing remote access to encoders, flags, PWM/analogue/stepper drives and digital I/O.
Description
Technical Specifications:
-
Processor: 80 MHz DSP56303
-
Flash Memory: 512 k × 8 for user backup & firmware
-
Serial Interface: RS-232 for setup and debugging (10-pin header)
-
Accessory Connectors: Stack connectors for servo and I/O accessory boards
-
Backplane Connector: UBUS connector for connection to other 3U-format boards
-
Multiplexed I/O: JTHW port with 26-pin IDC header
-
Power Requirement: 1.5 A @ +5 V (±5%), ≈ 7.5 W for 8-channel configuration with typical encoder load
-
Physical Size: 100 mm × 160 mm (3U format); overall board ~33.5 cm × 9.9 cm × 3.8 cm
-
Weight: ~0.5 lb
-
Operating Temperature: 0°C to 60°C
-
Storage Temperature: 12°C to 82°C
-
Humidity: 10% to 95% non-condensing
Configuration Elements:
-
SW1: MACRO slave node configuration
-
SW2: MACRO master number select (0–15)
-
E-point jumpers: Various hardware configuration settings
-
E1 (Rev 105+): Watchdog timer disable
-
E40 (Rev 105+): MACRO input (fibre/wired) selector
Functional Features:
-
Full motion-control processing for up to 8 servo/stepper axes (depending on accessory boards)
-
Electrically isolated MACRO ring communication
-
Extensible via stack and UBUS accessory boards
-
Static-sensitive components—qualified handling required
Application Scenarios: Multi-axis motion control in CNC machinery, robotics, semiconductor manufacturing equipment, packaging lines, and any application requiring coordinated, high-speed servo/stepper control.
Installation & Notes: Handle with anti-static precautions. Install in an industrial electrical cabinet or industrial PC to protect from moisture, corrosive atmospheres and conductive debris. Set SW1/SW2 and E-point jumpers per the target MACRO ring topology. Ensure +5 V supply can deliver 1.5 A. Use RS-232 for initial commissioning. Firmware updates are downloadable to flash.
