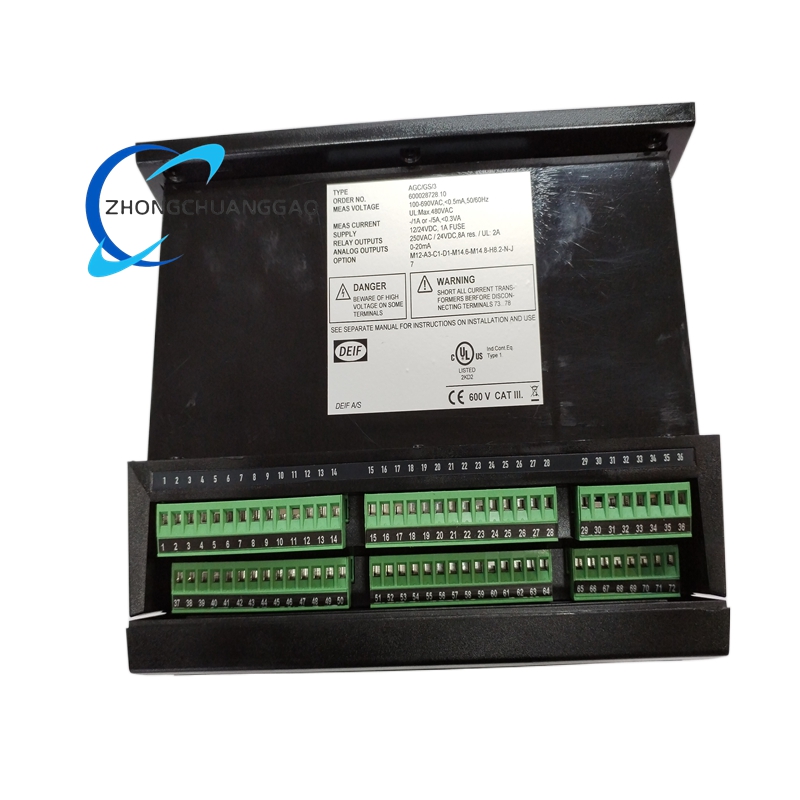

Product Short Description
Manufacturer: DEIF A/S (Denmark)
Product Overview:
The AGCGS3 is a microprocessor-based automatic generator controller designed for standby and prime power applications. It manages engine start/stop, voltage regulation, frequency control, and load sharing for diesel or gas generator sets.
Description
Technical Specifications:
| Parameter | Value |
|---|---|
| Power Supply | 24V DC (18–30V DC) or 110/230V AC |
| Control Outputs | 8 programmable relay outputs, 4 transistor outputs |
| Analog Inputs | 4–20 mA (up to 8 channels) |
| Digital Inputs | 12 opto-isolated inputs |
| Communication | RS-485 (Modbus RTU), CAN bus |
| Display | 128 x 64 graphical LCD with backlight |
| Operating Temperature | -20°C to +70°C |
| IP Rating | IP65 (front panel) |
| Certifications | CE, DNV-GL, Lloyd’s, BV, ABS |
Functional Features:
- Automatic start/stop based on mains failure or remote signal
- Voltage regulation (AVR) via digital excitation control
- Frequency regulation (governor control) via engine actuator
- Load sharing capability for parallel generator sets (up to 32 units)
- Engine protection — overspeed, low oil pressure, high coolant temp, overtravel
- Pre-lubrication and cool-down timer functions
- Amfleet/Mains failure detection with adjustable time delays
Performance Parameters:
- Voltage Regulation Accuracy: ±0.5%
- Frequency Regulation Accuracy: ±0.1 Hz
- Start Time: < 10 seconds (typical, from signal to rated voltage)
Applicable Industries: Marine, Offshore, Telecom, Data Centers, Hospitals, Mining, Construction
Structure & Design:
- Wall-mount or panel-mount enclosure
- Plug-in terminal blocks for field wiring
- Internal EEPROM for parameter storage (retains settings without power)
Installation Notes:
- Minimum 100mm clearance above unit for ventilation
- Use shielded cable for all analog signals
- Ground shield at one end only to prevent ground loops
