Product Short Description

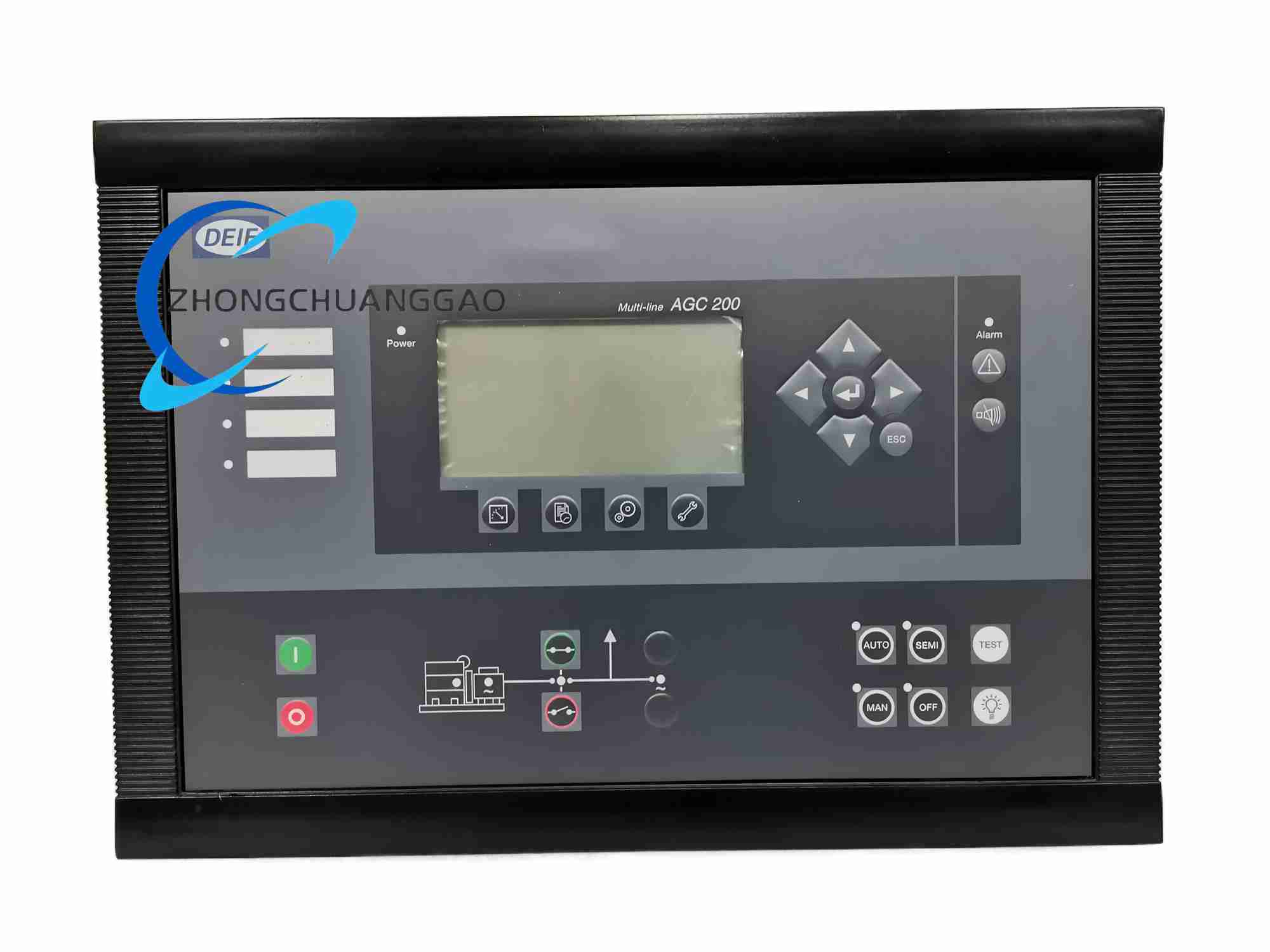

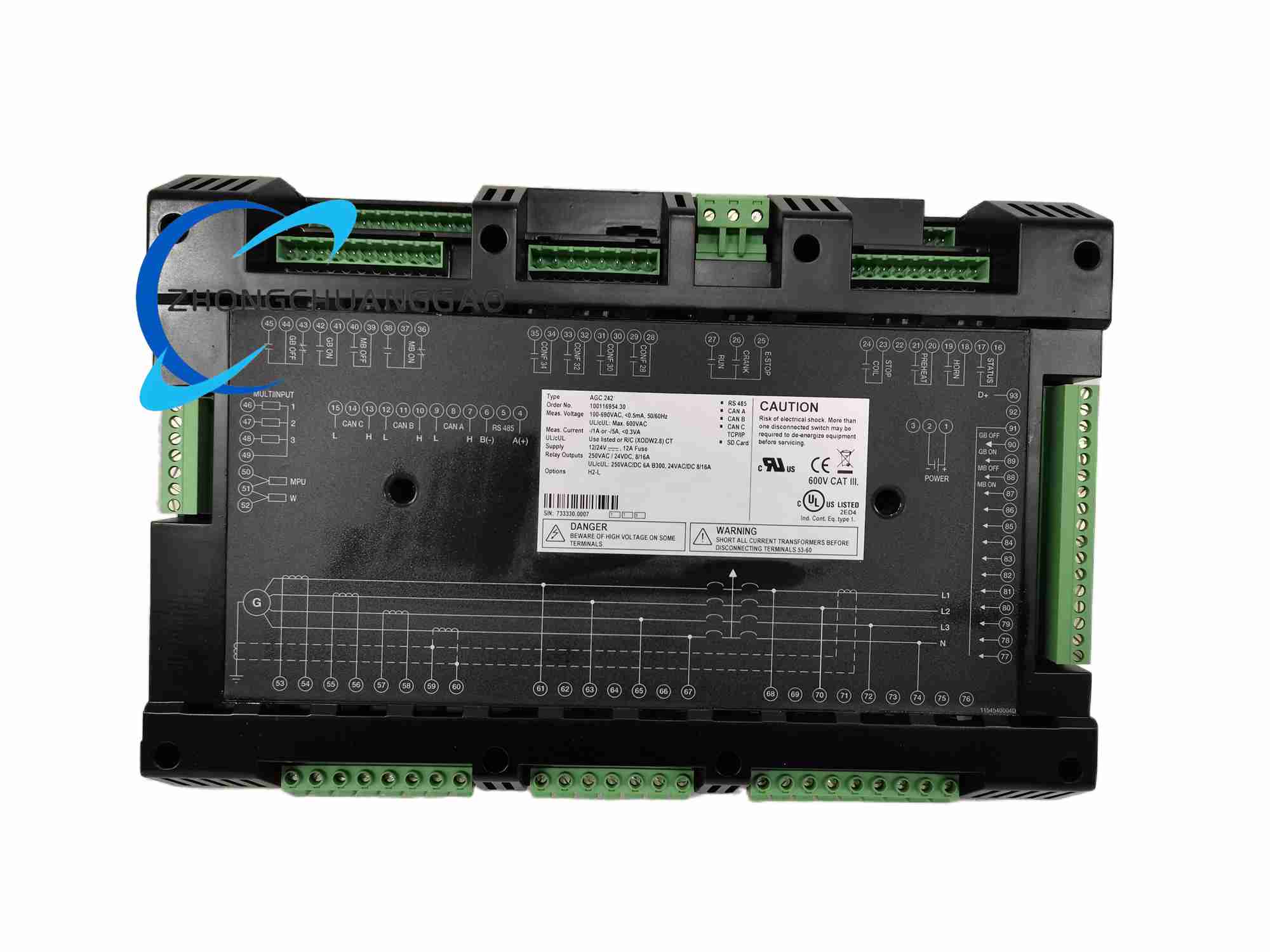

Product Overview: The DEIF AGC242 is an advanced generator-set controller designed for high-reliability power management in both marine and land-based installations. It offers fully integrated control, protection, synchronization and load sharing for single or multiple genset configurations, supporting island mode and parallel-to-mains operation. With a 5.7-inch colour graphic display, extensive I/O and multiple communication ports, the AGC242 acts as the intelligent core of a power management system (PMS) for up to 16 to 32 gensets depending on configuration.
Description
Technical Specifications:
-
Model Number: AGC242 (ordering no. 100170396.10)
-
Power Supply: 8 to 36 V DC (nominal 12/24 V DC), typical consumption < 15 W
-
Measured Voltage: 100 to 690 V AC, 50/60 Hz
-
Measured Current: Via 1 A or 5 A current transformers
-
Inputs: 3 analog (configurable), 12 to 17 digital isolated inputs
-
Outputs: 6 to 12 configurable relay outputs, 3 analog outputs
-
Display: 5.7-inch TFT colour display, 320 × 240 resolution
-
Communication: Ethernet (Modbus TCP/IP), CAN bus, RS-485 (Modbus RTU)
-
Measurement Accuracy: Voltage, current, frequency, power, power factor — better than ±1 %
-
Data Logging: 200 events + 500 measurements
-
Protection: Over/under voltage, overcurrent, reverse power, frequency deviation, earth fault
-
Synchronization: Built-in automatic synchronizer; supports up to 32 gensets in parallel via CAN bus
-
Operating Temperature: –20 °C to +70 °C
-
Front/Rear Protection: IP54 front / IP20 rear
-
Mounting: Panel mount
-
Weight: Approx. 1.2 kg
-
Compliance: CE, UL, DNV, ABS, GL marine standards
Key Features:
-
Automatic synchronization and load sharing across multiple gensets for optimized fuel efficiency
-
Multi-master redundant communication ensures continuous control even if one controller fails
-
Black-start capability — automatically restarts gensets after total power loss
-
Comprehensive protection functions meeting marine and industrial certification requirements
-
Event and data logging for advanced diagnostics and predictive maintenance
-
Firmware upgradable via USB or Ethernet
Application Scenarios: Marine power systems, industrial plants with up to 16–32 gensets, data centres, hybrid power systems (diesel + solar + battery), prime-power and standby applications.
Installation Requirements:
-
Mount on a vibration-isolated panel to reduce mechanical stress
-
Use shielded twisted-pair cable for all communication lines to prevent interference
-
Wire CT/VT inputs according to DEIF wiring diagrams; observe polarity
-
Provide a stable 12/24 V DC control supply with appropriate fusing (e.g., 12 A fuse)
Usage Notes:
-
Periodically update firmware and back up configuration via USB or network
-
Inspect terminal connections every six months to ensure stable performance
-
Maintain proper ventilation within the control cabinet to prevent heat accumulation
-
When operating in parallel-to-mains mode, verify synchronizer settings before closing the breaker
