Product Short Description
Product Name

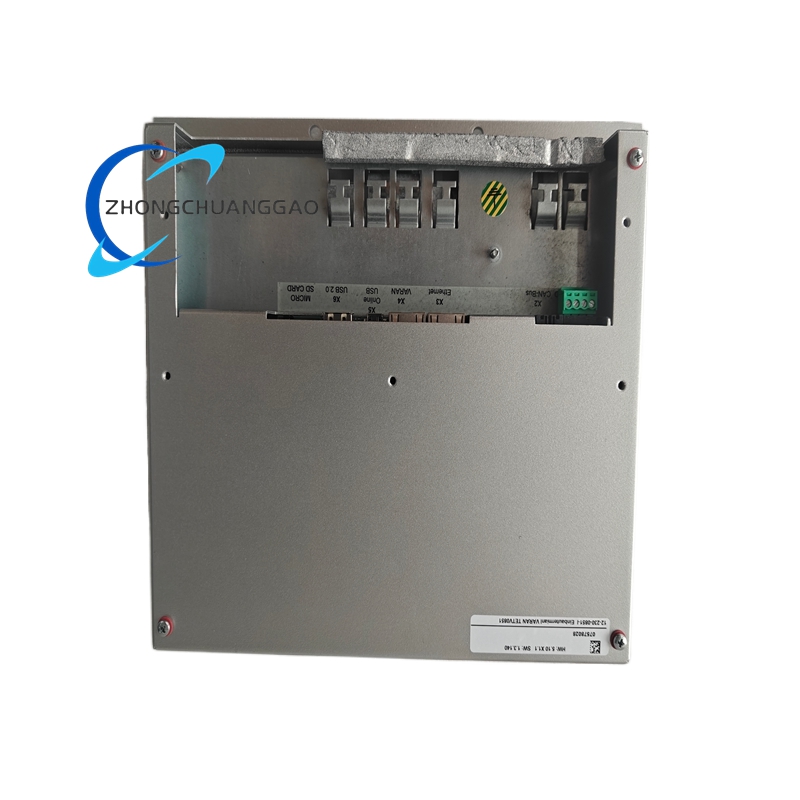

Deif Generator Controller / Power Management Module 11-0018905
Product Brief
Original electronic control module produced by DEIF (Denmark), specially used for generator set control, power parameter monitoring and power grid management, widely applied in power generation and backup power systems.
Description
Model Series
Deif 11 Series Power & Generator Control Module
Technical Specifications
- Part Number: 11-0018905 standard control module
- Input Voltage: Generator set standard auxiliary power supply voltage
- Sampling Range: Voltage, current, frequency multi-parameter sampling
- Communication Port: Standard industrial communication interface
- Working Mode: Automatic / manual dual control mode
Functional Features
- Real-time monitoring of generator voltage, current, frequency, power parameters
- Automatic start, stop and load regulation of generator set
- Over-voltage, under-voltage, over-current, over-frequency protection
- Data recording and remote signal transmission function
Performance Parameters
- Sampling Accuracy: High-precision electrical parameter sampling
- Response Time: Fast protection action response
- Operating Temperature: -15 °C to +55 °C
- Anti-interference: Meet power industry EMC anti-interference standard
Material Composition
- Module Shell: Flame-retardant ABS engineering plastic
- Internal Circuit: Industrial grade electronic components + multilayer PCB
- Terminal Interface: Copper alloy conductive terminals with oxidation resistance
Structural Characteristics
- Standard DIN rail mounting modular structure
- Front panel with status LED indicators and operation buttons
- Isolated input and output signal terminals
- Compact integrated circuit layout
Working Principle
Collect real-time electrical parameters of generator set through voltage and current sampling circuit. Compare with preset threshold values, execute logic control such as start-stop, load adjustment and fault protection. Transmit operating data to upper monitoring system via communication interface.
Advantage Highlights
- High measurement accuracy and stable control performance
- Comprehensive electrical fault protection functions
- Simple installation and convenient parameter setting
- Strong adaptability for various generator sets
Applicable Industries
Diesel generator set system, standby power station, marine power system, industrial emergency power supply, distributed power generation
Installation Requirements
- Mount on standard DIN rail inside control cabinet
- Wire strictly according to generator circuit diagram
- Ensure reliable system grounding
- Keep away from high-power electromagnetic interference sources
Usage Notes
- Set protection parameters according to generator rated parameters
- Operate within specified supply voltage range
- Regularly check terminal connection tightness
- Avoid operation in high humidity and corrosive gas environment
