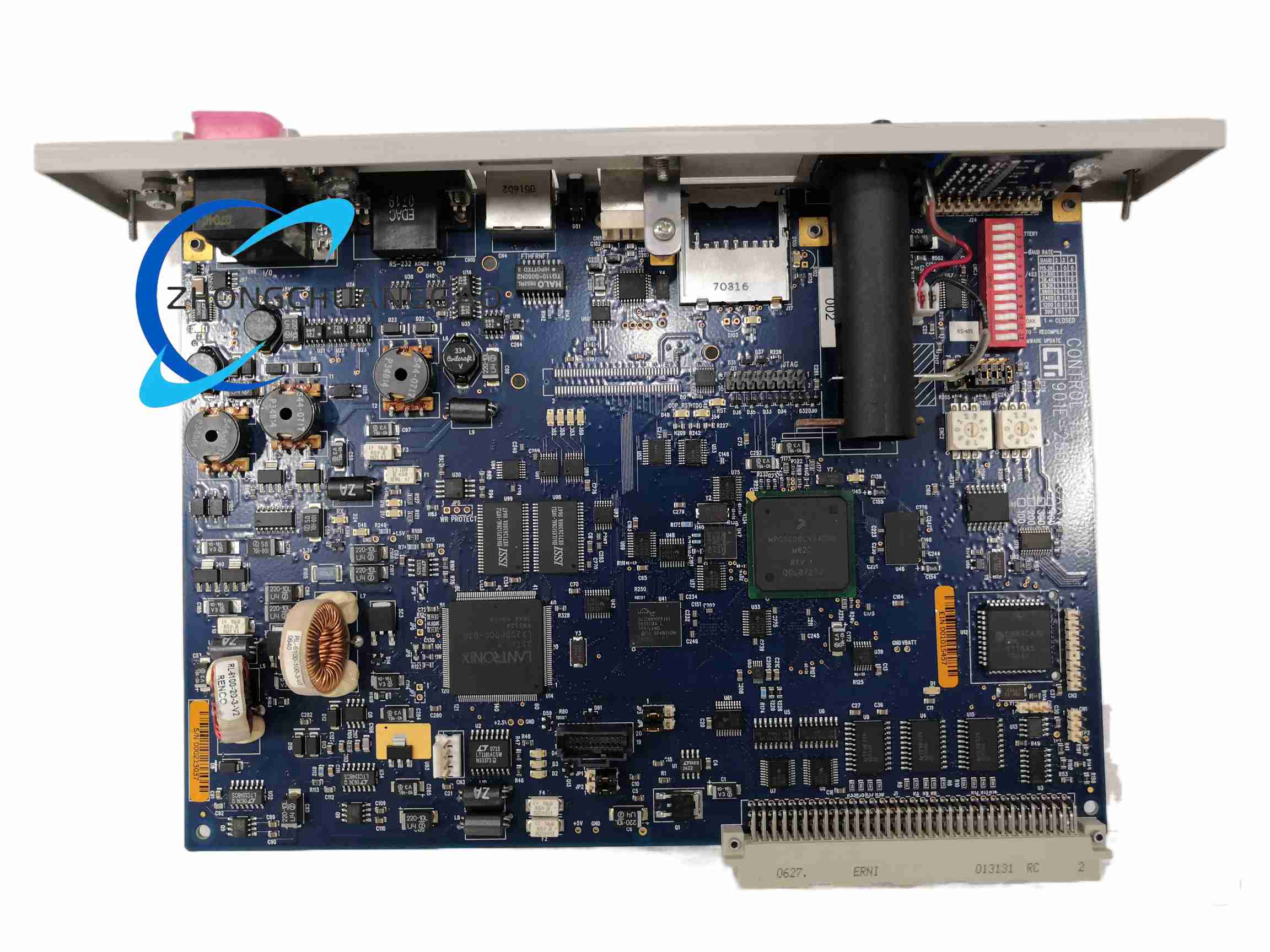

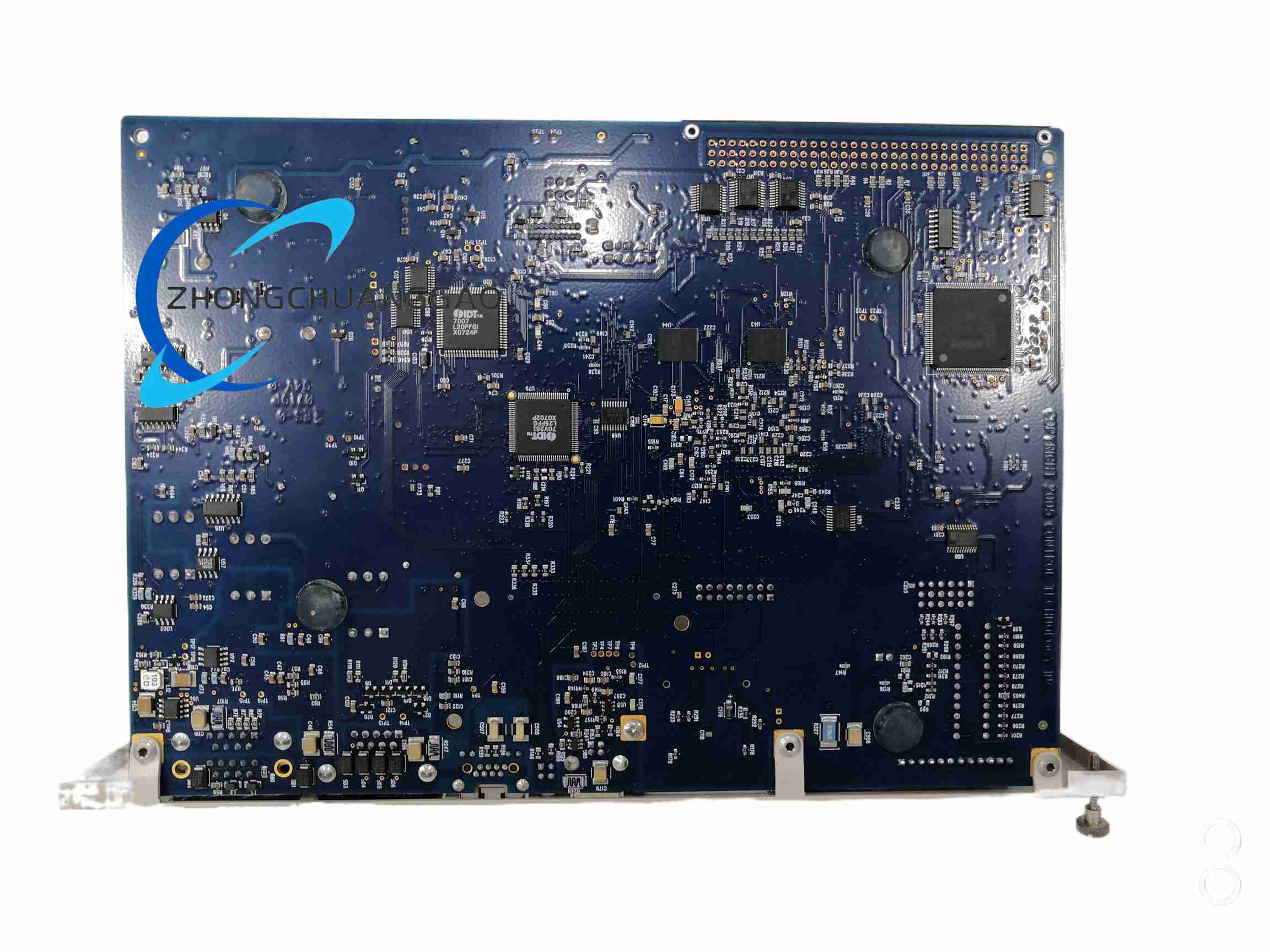

CTI 2500-C200

Description

• User Memory:​ 256 KB
• Digital I/O:​ 2048 points
• Analog I/O:​ 1024 points
• Control Loops:​ 64 PID loops
• Alarms:​ 128 alarms
• Communication Ports:​ Built-in Ethernet (100 Mbit, RJ45), USB (programming), RS-232C (DB9), Profibus-DP (12 Mbit, DB9), RS-485 Remote I/O (DB9)
• SD Flash Card:​ Up to 32 GB (for firmware updates, V6.18+)
• Backplane Power:​ 7 W maximum
• Operating Temperature:​ 0 °C to 60 °C
• Storage Temperature:​ -40 °C to 85 °C
• Humidity:​ 5% to 95%
• Agency Approvals:​ CE, UL, UL-C, Class 1 Div 2
• Shipping Weight:​ 1.5 lb (0.68 kg)

• Direct replacement for Siemens 545 and 555 series controllers
• Built-in Ethernet and USB ports for programming and MMI
• Profibus-DP master and RS-485 Remote I/O on-board
• SD flash card slot for convenient firmware updates
• Runs on Integrity real-time operating system for high reliability
• 3-digit LED display for system status, error reporting, and IP address
• Compatible with Workshop programming software

• Medium to large discrete manufacturing control
• Basic and advanced process control
• Systems requiring PID loop control and extensive alarm handling
• Retrofit upgrades of legacy Siemens 545/555 installations
• Industrial automation requiring Profibus-DP connectivity

• Before putting into service, move dipswitch SW1 to the CLOSED position to enable the lithium backup battery
• Mount on a CTI 2500 series I/O base or compatible backplane
• Ensure proper grounding of the control cabinet
• Verify power supply capacity for the 7 W maximum backplane draw

• The module includes a lithium battery for user program, retentive variables, and diagnostics backup
• For transportation safety, the battery is shipped disabled and MUST be enabled via SW1 before operation
• Relay ladder logic provides equivalent instructions for all Simatic 555 instructions except XSUB
• External subroutines using XSUB are not supported and will be ignored if downloaded
