Product Short Description

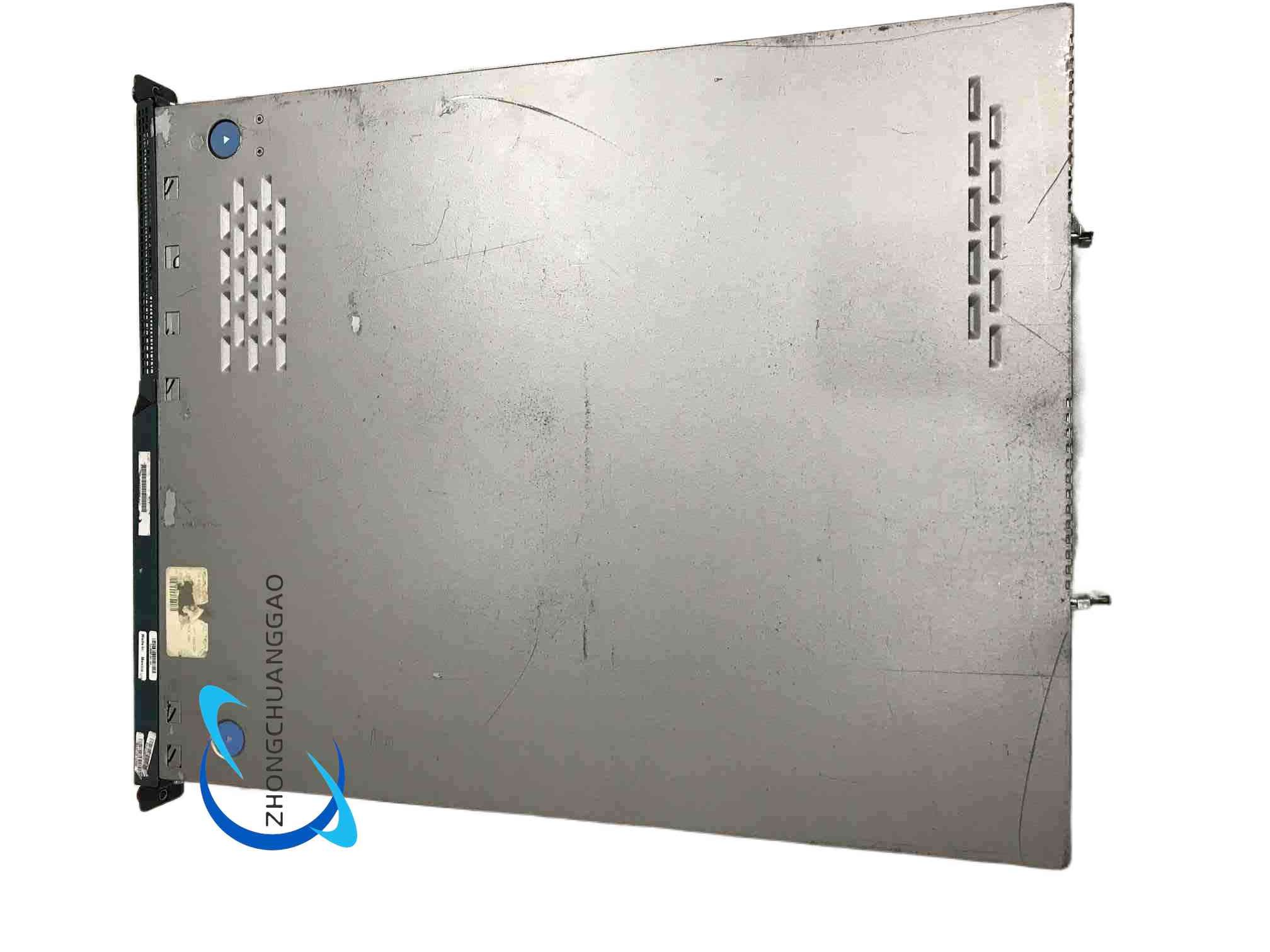

Product Name: Cisco Secure Access Control Server 1121 Appliance (CSACS-1121-K9) — Rack-Mount Security Appliance
Product Introduction: The Cisco CSACS-1121-K9 is a 1U rack-mountable hardware appliance running Cisco Secure Access Control System (ACS) 5.1 software. It provides centralized identity and access control services for network devices and applications, managing authentication, authorization, and accounting (AAA) via industry-standard protocols.
Description
Technical Specifications:
- Brand: Cisco
- Model: CSACS-1121-K9
- Product Type: Security appliance (Access Control Server)
- Form Factor: 1U rack-mountable
- Dimensions: 1.8″ H × 17.3″ W × 22″ D (Height: 1 RU)
- Weight: Approximately 28 lb
- Processor: Intel Core 2 Quad, 2.66 GHz (Intel Xeon 2.66 GHz Q9400 Quad-Core per some specs)
- Memory: 4 GB DDR2 SDRAM (DDR2 ECC)
- Storage: 2 × 250 GB 3.5″ SATA HDD (7200 RPM)
- Optical Drive: DVD-ROM
- Power Supply: Internal, 351 W
- Software: Cisco Secure ACS 5.1 (Base License)
Network & Connectivity:
- 4 × 1000Base-T Gigabit Ethernet ports (RJ-45)
- 1 × RS-232 DB-9 serial console port
- 1 × VGA video port
- 2 × PS/2 (keyboard/mouse)
- 4 × USB 2.0 Type A
- 1 × PCI-X expansion slot (1 total / 1 free)
- 1 × external Slim Line 5.25″ bay (total 1 / free 0)
- 2 × internal 1/3H 3.5″ bays (total 2 / free 0)
Supported Protocols & Standards:
- IEEE 802.1x
- Authentication Methods: RADIUS, TACACS+, PAP, CHAP, MS-CHAP, EAP, EAP-FAST, PEAP, LDAP, Active Directory
- Encryption: MD5, PEAP, TLS
- Features: ACL support, LDAP support, VLAN support
- Compliant Standards: IEEE 802.1x
Management & Monitoring:
- Remote management via HTTP
- LED status indicators: Error, HDD activity, Link OK, Link/activity, Power
Environmental:
- Operating Temperature: 50°F to 95°F (10°C to 35°C)
- ENERGY STAR Certified: No
Functional Features:
- Centralized AAA services for network access control
- Support for both RADIUS and TACACS+ protocols
- Active Directory and LDAP integration for enterprise identity
- EAP methods for 802.1x network authentication
- Web-based remote management interface
- 1U form factor for standard 19″ rack deployment
Application Scenarios: Enterprise network access control, device administration authentication (TACACS+ for network infrastructure), 802.1x wired/wireless network access (RADIUS), VPN authentication, centralized policy enforcement for Cisco and multi-vendor network environments.
Installation Requirements:
- Mount in a standard 19″ equipment rack (1U height)
- Provide AC power to the internal 351 W power supply
- Connect at least one Gigabit Ethernet port to the management network
- Use the DB-9 RS-232 port for initial console configuration
- Ensure adequate rack ventilation; operating temperature 50°F–95°F (10°C–35°C)
- Initial setup requires connection to a monitor (VGA) and keyboard/mouse (PS/2) or console cable
Usage Precautions: This is a first-generation ACS 1121 appliance running ACS 5.1 — verify software license and support status with Cisco for current deployments. Operating temperature range is limited to 10°C–35°C; do not deploy in environments outside this range. The unit draws 351 W; ensure the rack PDU provides adequate power. Not ENERGY STAR certified. For initial configuration, use the serial console (DB-9) before network management is enabled.
