Product Short Description

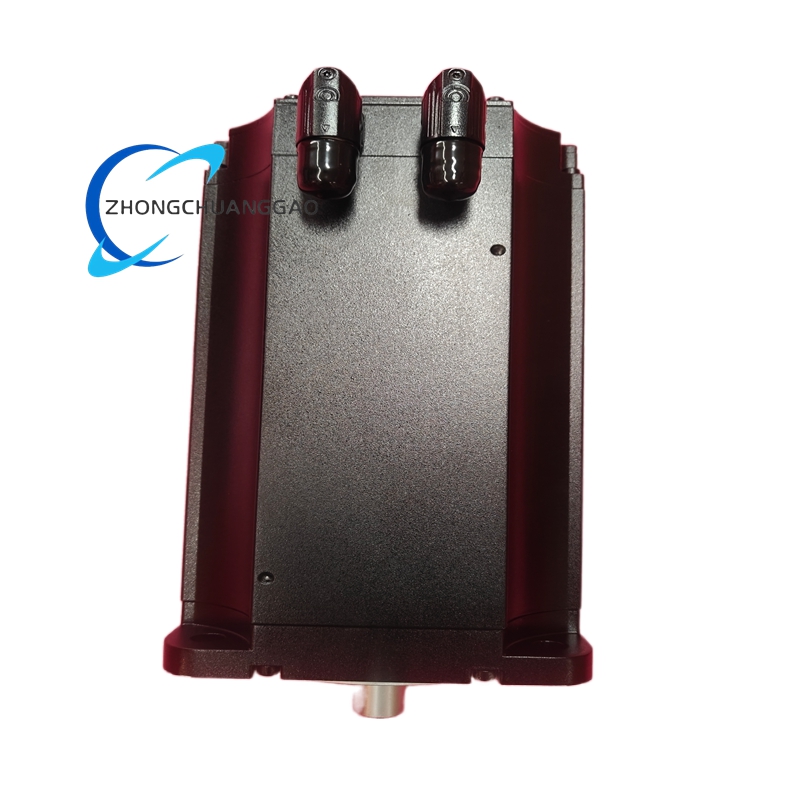

Model Series: B&R 8LSA Large Frame High-power Servo Motor Series
Product Introduction: A large-frame high-power permanent magnet synchronous servo motor, designed for heavy-load industrial motion control. It matches B&R high-power servo drives, and is applied to heavy-duty automation equipment requiring large torque and high power output, with high structural strength and excellent dynamic and static performance.
Description
- Rated Power: 22 kW
- Frame Size: 75 mm large frame
- Rated Working Voltage: 400 VAC three-phase
- Protection Class: IP65
- Insulation Class: F
- Encoder Type: High-resolution absolute encoder
- Brake Configuration: External brake matching interface (no built-in brake)
- Shaft Type: Thickened keyway shaft for heavy load
- Large torque output, adapting to heavy-load driving conditions
- High-resolution absolute position feedback, high positioning accuracy
- Multi-point temperature detection inside the winding for comprehensive overheat protection
- Strong anti-vibration and anti-impact ability, adapting to harsh industrial working conditions
- Support high-speed operation and stable torque output in full speed range
- Dedicated interface for external brake assembly to realize power-off braking function
- Rated Torque: 70 Nm
- Peak Torque: 210 Nm
- Rated Speed: 2000 rpm
- Maximum Speed: 4000 rpm
- Dynamic Response Time: ≤ 8 ms
- Allowable Operating Ambient Temperature: 0 °C ~ +55 °C
- Cable Adaptation: High-power shielded industrial cable
- Motor housing: Thickened die-cast aluminum alloy + reinforced heat dissipation ribs
- Stator: High-grade silicon steel sheet + high-temperature resistant composite enameled wire
- Rotor: Large-size high-energy permanent magnet assembly
- Main shaft: Forged high-strength alloy steel, overall heat treatment
- Bearings: Heavy-duty double-row sealed bearings
- Internal insulation material: High-temperature resistant insulation paper and insulating paint
- Large frame reinforced flange structure, high overall rigidity and load-bearing capacity
- Thickened main shaft and keyway structure, resisting large torque and radial load
- Dual-channel connector design, independent power interface and signal interface
- Fully sealed shell structure, dust-proof, waterproof and oil-proof
- External reserved brake installation position, modular assembly design
- Internal enhanced fixed structure for windings and magnetic steel to prevent loosening under strong vibration
The motor follows the working principle of permanent magnet synchronous motor. The high-power servo drive outputs three-phase variable frequency AC to the stator winding to generate a rotating magnetic field, which drives the rotor permanent magnet to rotate and output large mechanical torque. The built-in absolute encoder collects real-time position and speed data and feeds it back to the drive to form a closed-loop control system, realizing precise regulation of speed, position and torque. The multi-point temperature detection system monitors the temperature of each part of the winding in real time. When the temperature exceeds the threshold, the system will automatically reduce power or stop operation to protect the motor. The reserved brake interface can be connected with an external electromagnetic brake to realize reliable locking after power failure.
- Ultra-large power and torque output, meeting heavy-load driving demands
- Reinforced mechanical structure, strong durability and impact resistance
- Stable operation in full speed range, no torque attenuation
- Comprehensive temperature protection system, effectively avoiding burnout failure
- Modular design, convenient for assembling external brakes and on-site maintenance
- Good compatibility with B&R high-power servo system, stable overall operation
Heavy-duty machine tools, metallurgical equipment, port handling machinery, large packaging equipment, industrial robots, stone processing machinery, heavy-duty automated production lines
- Adopt heavy-duty flange installation, the base must have sufficient bearing capacity and rigidity
- Use high-strength bolts for fixing, and perform anti-loosening treatment
- The coaxiality between motor shaft and load must be strictly guaranteed to avoid eccentric load
- Use special high-power shielded cables for wiring, and do not share cables with weak current signals
- Leave sufficient ventilation and heat dissipation space around the motor; forced heat dissipation can be equipped in high-temperature environment
- Strictly prohibit long-term overload and locked-rotor operation
- Regularly check the fastening state of the mounting bolts and the wear of the shaft parts
- It is forbidden to work in the environment with serious dust, oil pollution and corrosive gas for a long time
- Cut off the total power supply before disassembly, maintenance and wiring
- When matching external brakes, follow the parameter matching requirements strictly
- Once abnormal sound, vibration or sharp temperature rise is found, stop the machine for troubleshooting immediately
