Product Short Description
Product Name
Automation Panel 900, 15-inch XGA Touchscreen HMI
Product Introduction

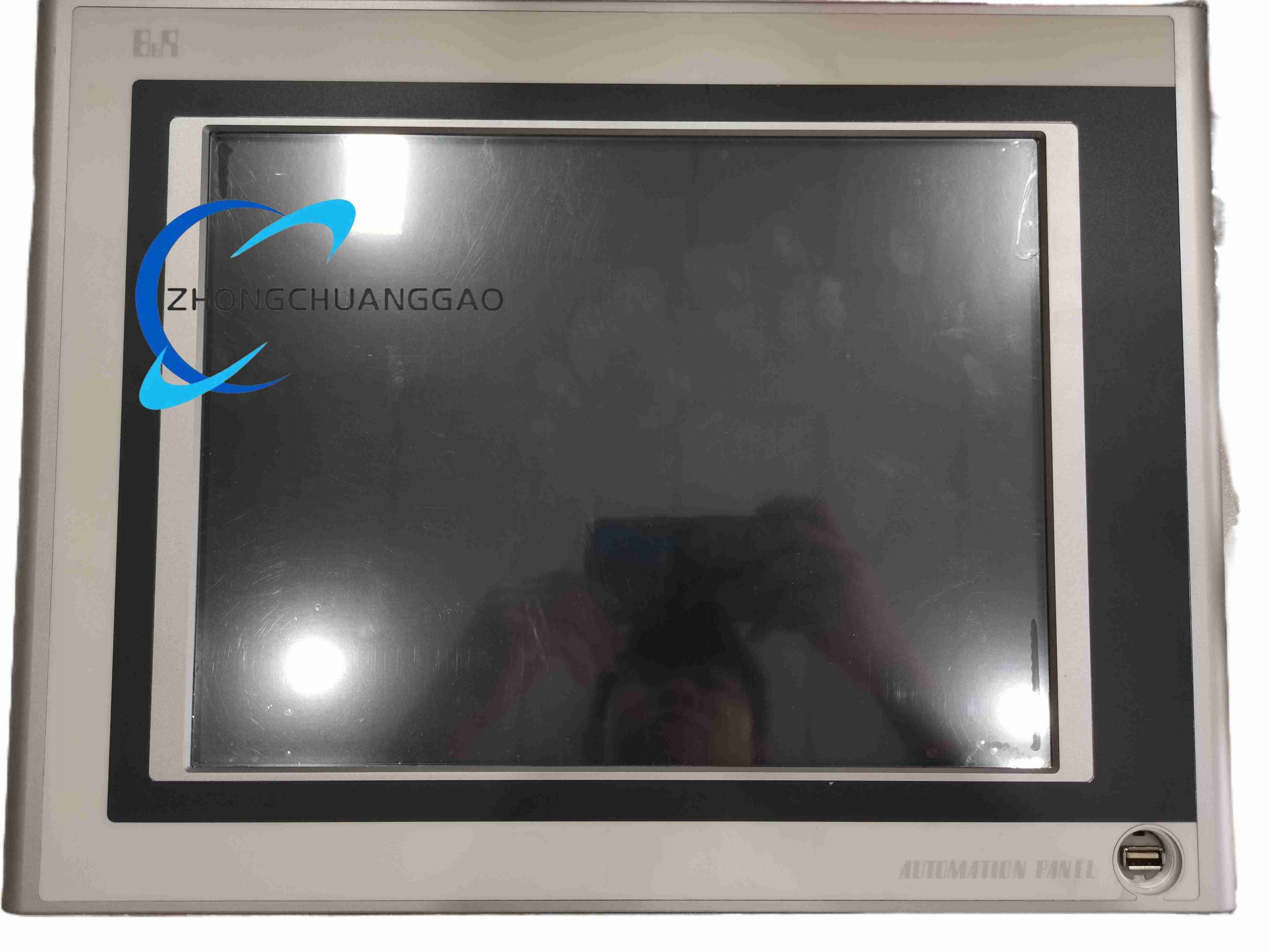

The B&R 5AP920-1505 (often listed as 5AP920.1505-01) is a 15-inch industrial operator panel with analog resistive touch and XGA TFT display. It is a display-only HMI; compute is supplied by a PPC300 insert or Automation Panel Link card.
Description
Technical Specifications
- Display: 15 in TFT, 1024 × 768 (XGA), 16.7 M colors, 350 cd/m², 1000:1
- Backlight: LED, ~70,000 h half-life
- Touch: Analog resistive, 12-bit Elo serial controller
- Interfaces: 3 × USB 2.0 Type-A
- Power: 24 V DC ±25% (SELV), typical 24 W, max 31 W (41 W with USB load)
- Front Protection: IP65 / NEMA 4X (indoor)
- Housing Depth: 54 mm
- Dimensions: 435 × 330 × 54 mm (W × H × D)
- Weight: ~5.1 kg
- Operating Temperature: 0 to 50 °C
Functional Features
- Fanless metal housing
- Resistive touch operable with gloves
- PPC300 computer insert support turns panel into a PC-based HMI
- Automation Panel Link for remote display from B&R controller
Application Scenarios
Machine operator stations, packaging HMI, CNC front panels, and process skids where a shallow 15-inch industrial display is needed.
Structural Characteristics

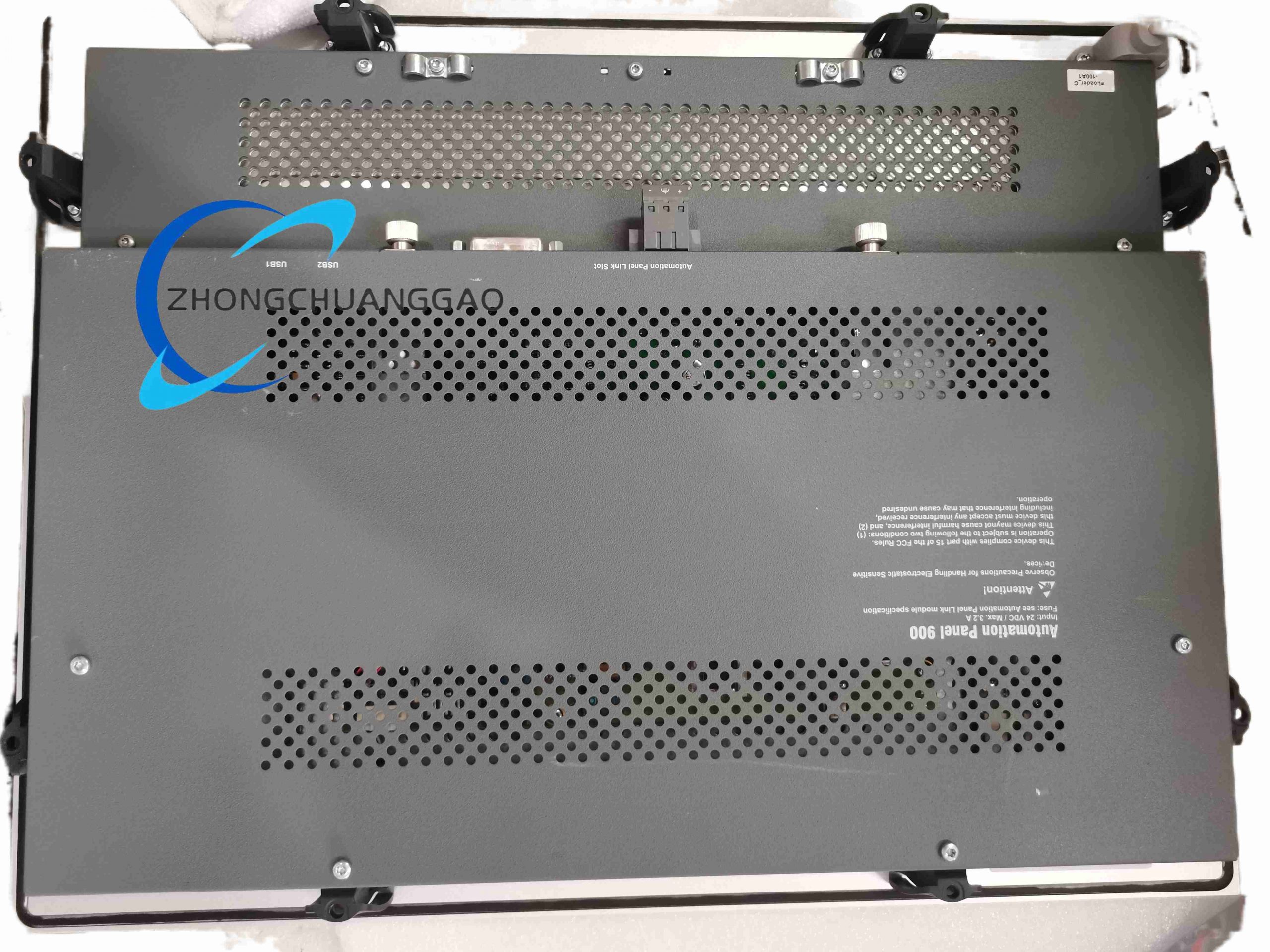

Aluminum front frame, steel rear bracket, LED-backlit LCD, resistive overlay, no internal fan. Rear compartment accepts PPC300 or APL card.
Working Principle
As a pure monitor, it receives video and touch data from a linked controller or PPC300 insert over the Automation Panel Link or internal PCIe/embedded bus. The touch controller reports coordinates over serial USB.
Installation Requirements
Cutout must match 435 × 330 mm face with 54 mm rear clearance. Secure with front clamps or rear brackets. Supply regulated 24 V DC SELV.
Usage Precautions
Do not power the 24 V DC while the APL/PPC300 card is unplugged if configured as smart panel. Clean the resistive surface with non-abrasive cloth. Avoid prolonged moisture exposure beyond IP65 rating.
