Product Short Description

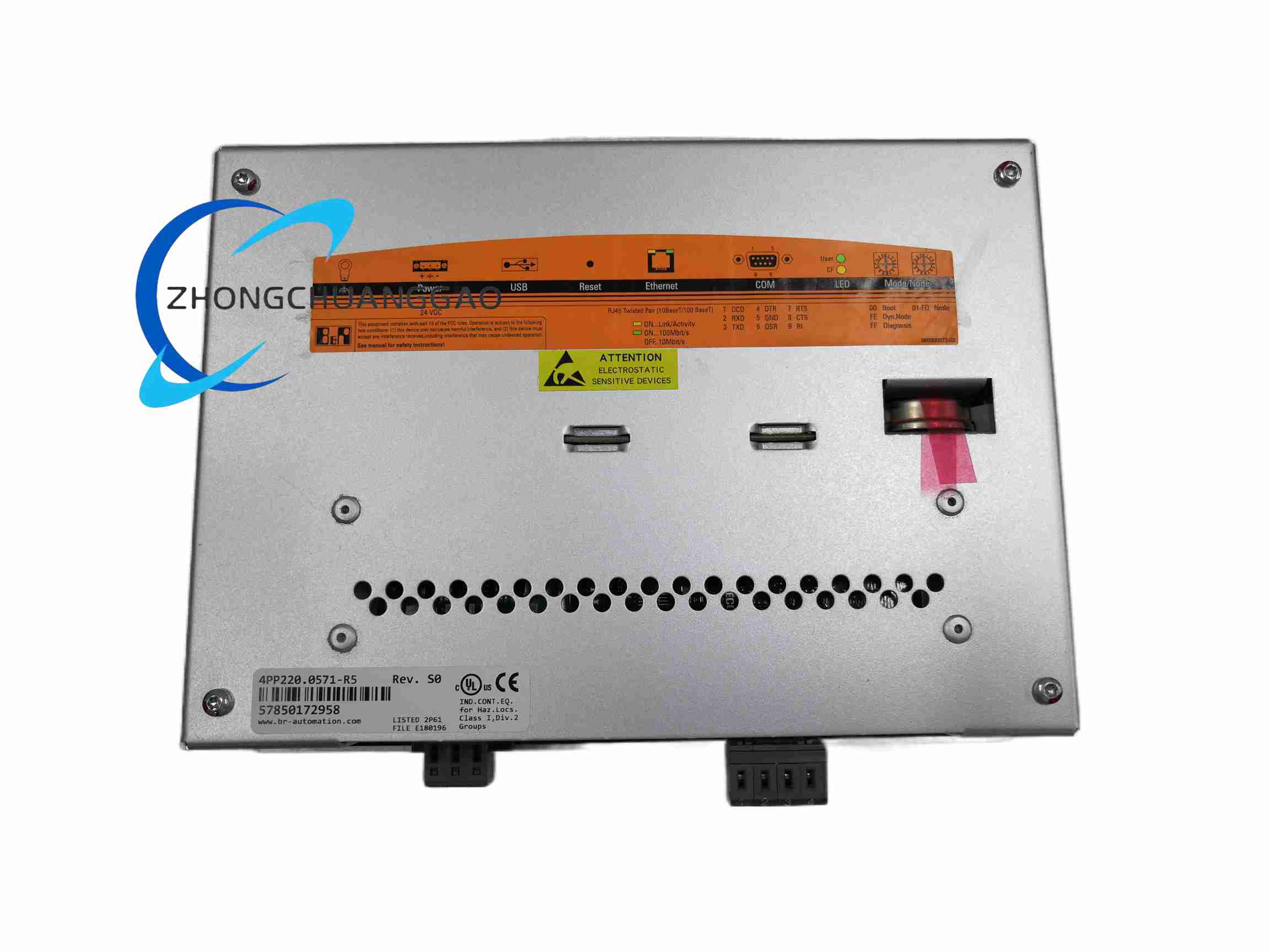

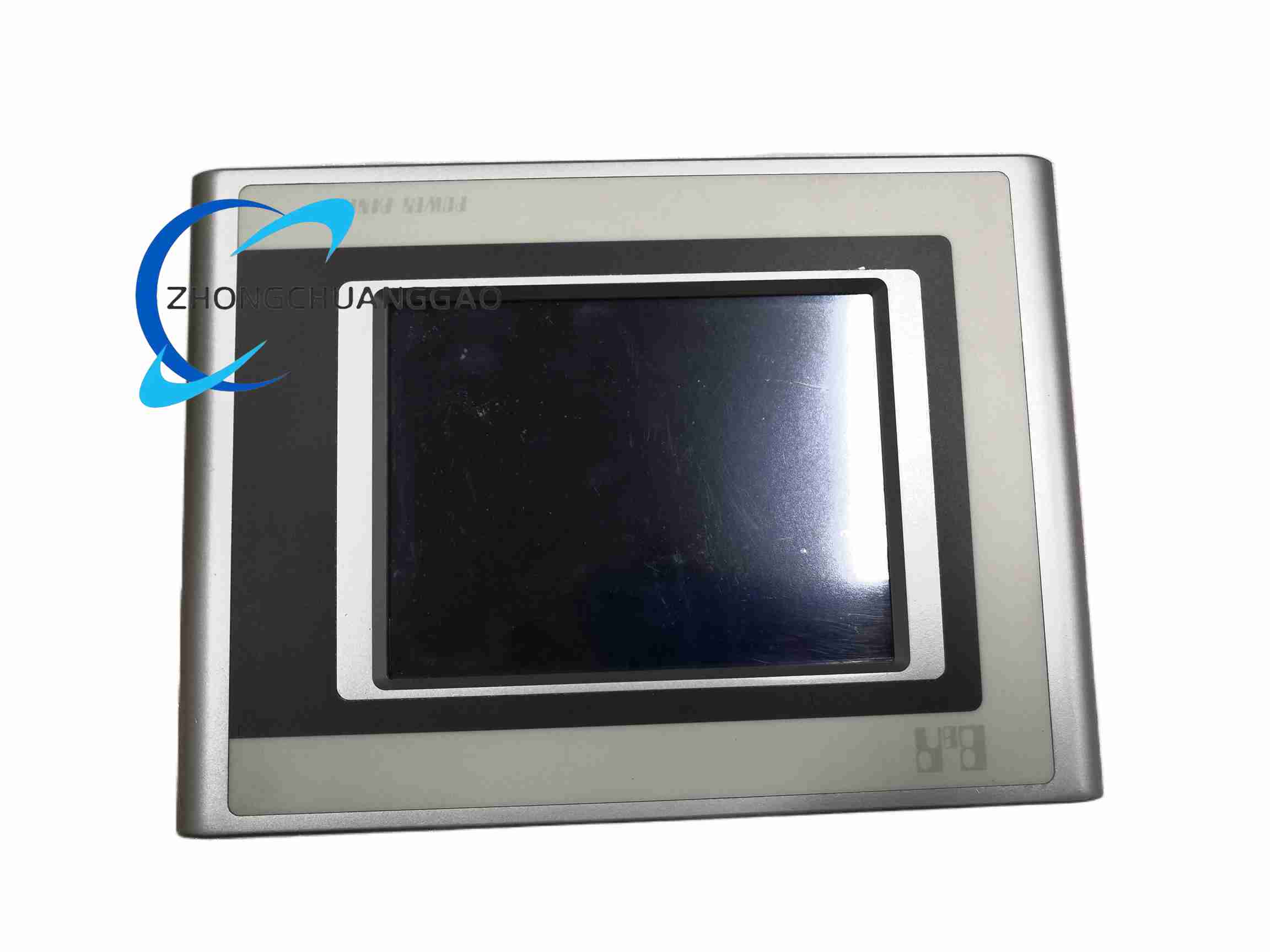

Product Name: Power Panel PP220
Product Introduction: An industrial-grade HMI with resistive touch screen, 5.7″ monochrome display, 64 MB SDRAM, and rich communication interfaces including Ethernet, USB, and RS232.
Technical Specifications:
-
Display: 5.7″ QVGA monochrome LCD with resistive touch screen
Description
-
Memory: 64 MB SDRAM, 256 KB SRAM
-
CompactFlash Slot: Type I
-
Ethernet: 10/100 Mbps
-
Serial: 1 × RS232
-
USB: 2 × USB 2.0
-
Expansion: 2 × aPCI slots
-
Power Supply: 24 VDC
-
Protection: IP65 (front)
-
Housing: Metal housing, aluminum naturally anodized front frame, polyester panel overlay
-
Dimensions (W×H×D): 212 × 156 × 98 mm
-
Weight: 2000 g
-
Altitude: Up to 3000 m
Functional Features:
-
aPCI expansion slots for POWERLINK, CAN, X2X Link interfaces
-
CompactFlash storage expansion
-
Resistive touch for harsh industrial environments
Application Scenarios: Small-to-medium equipment operation panels, production line data acquisition terminals, pump/valve control in water treatment, AGV navigation displays.
Required Accessories:
-
0TB103.9 (screw clamp terminal block) or 0TB103.91 (cage clamp terminal block)
Optional Accessories: CompactFlash cards (64 MB to 8 GB SLC), lithium batteries (0AC201.91), USB flash drives.
