Product Name: B&R 4PP065.0571-X74F Human-Machine Interface Panel
Product Series: B&R 4PP Series Industrial Touch Panel
Product Brief: Industrial grade human-machine interface panel for on-site operation, parameter setting, data display and equipment monitoring. It establishes man-machine interaction channel between operators and B&R automation control systems, widely used in on-site operation stations.
Description
- Operating Supply Voltage: 24 V DC ±15%
- Display Size: 6.5 inch TFT LCD
- Display Resolution: 640 × 480 pixels
- Touch Type: Resistive industrial touch screen
- Operating Temperature: 0 °C ~ +55 °C
- Storage Temperature: -20 °C ~ +70 °C
- Relative Humidity: 10% ~ 85% RH (Non-condensing)
- Communication Interface: Ethernet, RS232, RS485
- Real-time display of equipment operating data, running status and fault information
- Touch operation for parameter modification, program switching and equipment control
- Multi-language display and operation interface support
- Data recording, trend curve display and alarm log storage
- Remote program upload, download and system configuration
- Total Power Consumption: ≤ 18 W
- Display Brightness: 400 cd/m²
- Touch Service Life: ≥ 10 million touches
- Vibration Resistance: 5 Hz ~ 150 Hz, 0.7 g
- MTBF: ≥ 85000 hours
- Front Panel: Reinforced anti-scratch industrial glass + ABS plastic frame
- Rear Enclosure: Die-cast aluminum alloy with electrostatic spraying
- Display Component: Industrial TFT LCD module, backlight assembly
- Touch Component: Resistive touch film, drive circuit board
- Internal Mainboard: Industrial-grade main control PCB and embedded chips
- Embedded panel mounting structure for cabinet door installation
- Fully sealed front panel with IP65 front protection grade

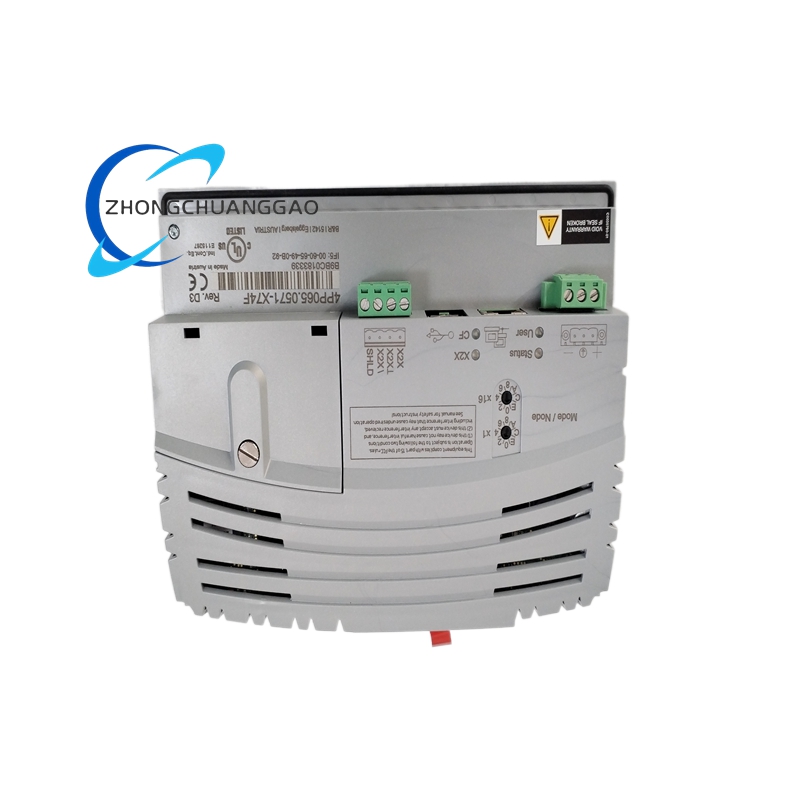

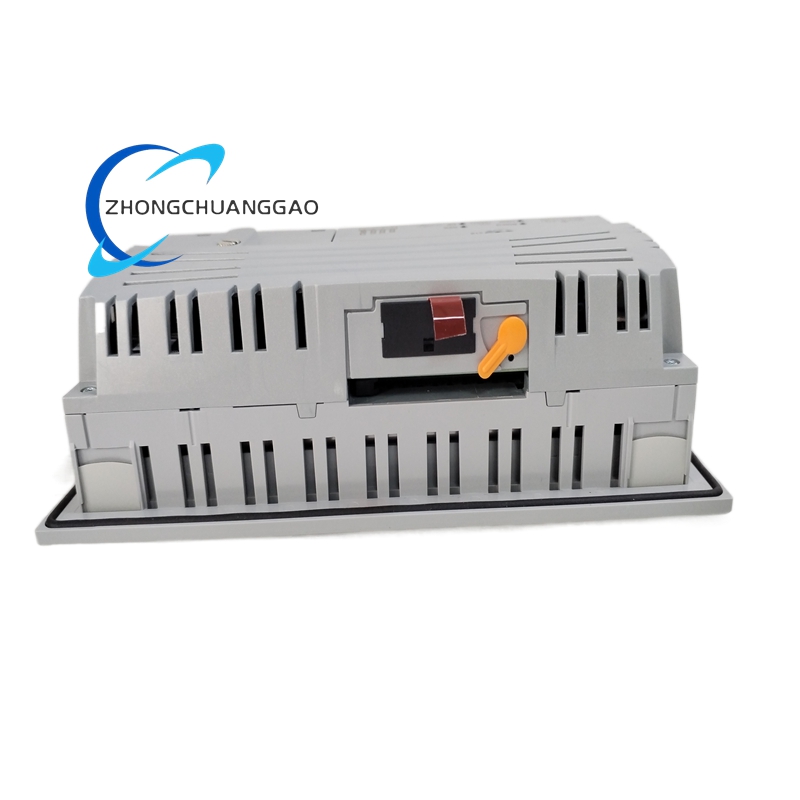

- Rear side centralized layout of communication ports, power port and function interfaces
- Integrated mounting flanges and fixing holes around the panel
- Internal modular assembly structure for easy component replacement
After power-on, the panel establishes communication connection with the lower PLC and controllers. It receives operating data and status signals, converts data into graphics, numbers and text for screen display. When operator touches the screen, the touch sensor captures coordinate signals and transmits operation commands to the control system to realize equipment control and parameter adjustment.
- IP65 front protection, dustproof and waterproof for harsh workshop environment
- High brightness display, clear view under strong ambient light
- Multiple standard communication ports, strong system compatibility
- Stable long-term operation, low failure rate for on-site continuous use
- Compact embedded structure, beautiful and space-saving layout
Machinery equipment, automotive manufacturing, new energy, food & beverage, pharmaceutical equipment, plastic machinery, intelligent production lines
- Embed into standard cabinet door with matching installation cutout size
- Tighten fixing fasteners evenly to ensure front panel sealing performance
- Use shielded cables for communication wiring, single-point grounding for shielding layer
- Install away from direct strong sunlight and high-temperature heat sources
- Reserve maintenance space at the rear of the panel for wiring and inspection
- Use dry soft cloth to clean screen surface, do not use corrosive detergent
- Do not apply excessive impact or pressure on the touch screen
- Avoid liquid infiltration from panel gaps during operation and cleaning
- Cut off power supply before disassembling or replacing the panel
- Regularly back up program and log data to prevent data loss
