Product Short Description

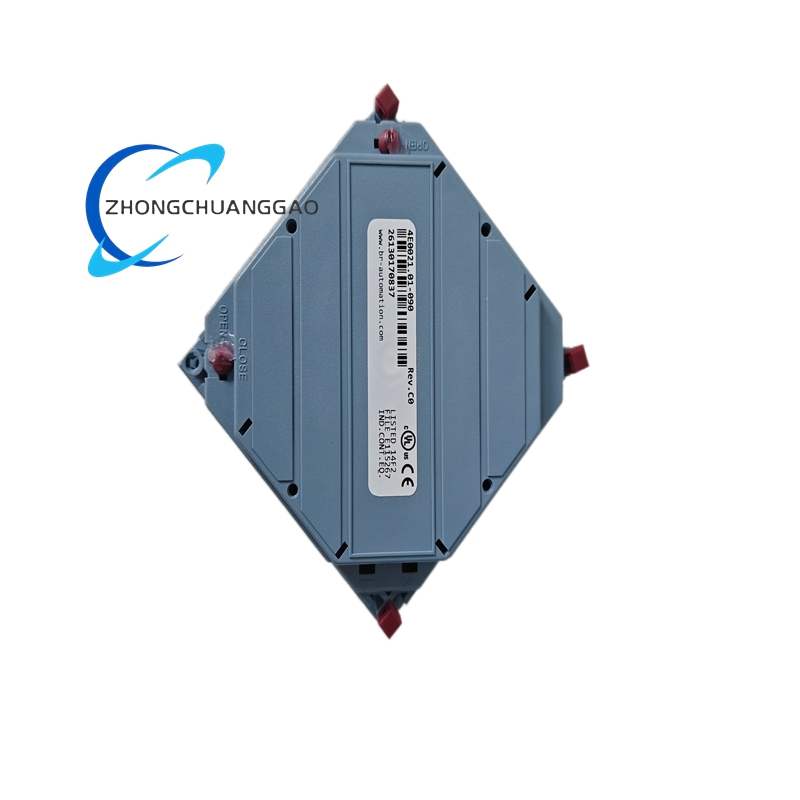

Product Name: B&R 4E0021.01-090 Digital Output Module
Product Series: B&R 4E Series Industrial I/O Module
Product Brief: High-reliability digital output module matched with B&R automation control system. It receives control commands from main controller and drives on-site actuators. Designed for standard on-off control tasks in industrial fields.
Description
- Rated Supply Voltage: 24 V DC ±10%
- Operating Temperature: -25 °C ~ +70 °C
- Storage Temperature: -40 °C ~ +85 °C
- Relative Humidity: 5% ~ 95% RH (Non-condensing)
- Output Channel Count: 8 isolated digital output channels
- Rated Output Current per Channel: 0.5 A
- Output Response Time: ≤ 0.4 ms
- Isolation Voltage: 1500 V AC
- Convert control commands into digital switching signals to drive field actuators
- Over-current, short-circuit and overload automatic protection for each channel
- LED status indicators for each output channel
- Short-circuit self-recovery function after fault elimination
- Support bus-based remote monitoring and fault diagnosis
- Total Power Consumption: ≤ 8 W
- Insulation Resistance: ≥ 100 MΩ
- Vibration Resistance: 10 Hz ~ 180 Hz, 1 g continuous vibration
- Shock Resistance: 18 g peak acceleration (10 ms duration)
- MTBF: ≥ 110000 hours
- Main PCB: FR-4 high-temperature flame-retardant multilayer PCB
- Enclosure: Flame-retardant reinforced PA66 engineering plastic
- Core Components: High-power drive transistors, optocouplers, fuses
- Terminal Blocks: Copper alloy tin-plated contacts, impact-resistant plastic base
- Internal Heat Conduction Parts: Thermally conductive insulating gaskets
- Standard 35 mm DIN rail modular structure
- Front centralized terminal layout with clear channel identification
- Bidirectional snap buckles for seamless combination with adjacent modules
- Shell with integrated heat dissipation grooves for passive heat dissipation
- Fully enclosed dustproof and anti-interference structure
The module receives digital control commands from the main controller via internal bus. The isolation circuit transmits signals to drive units, which output 24 V DC switching signals to external solenoid valves, contactors and other actuators. Once over-current or short circuit occurs, the protection circuit immediately cuts off the faulty channel and triggers status alarm.
- Independent protection for each channel, prevent chain fault spread
- Stable load driving capability for common low-power industrial actuators
- Excellent anti-vibration and anti-interference performance
- Modular plug-and-play design for easy replacement and maintenance
- Wide temperature range for diverse industrial working conditions
Hydraulic & pneumatic control, packaging machinery, printing equipment, automation assembly, metallurgy auxiliary equipment, environmental protection equipment
- Install on standard 35 mm DIN rail inside industrial control cabinet
- Keep unobstructed heat dissipation grooves, no coverage or blockage
- Power lines and output signal lines shall be routed separately
- Complete reliable protective grounding in accordance with industrial standards
- Keep distance from heat sources and high-frequency interference equipment
- Do not connect loads exceeding rated 0.5 A per channel
- Perform all wiring operations under power-off state
- Regularly clean dust on shell and terminals every 3 months
- Do not use in environment with flammable gas or explosive dust
- After channel protection tripping, eliminate fault before restart operation
