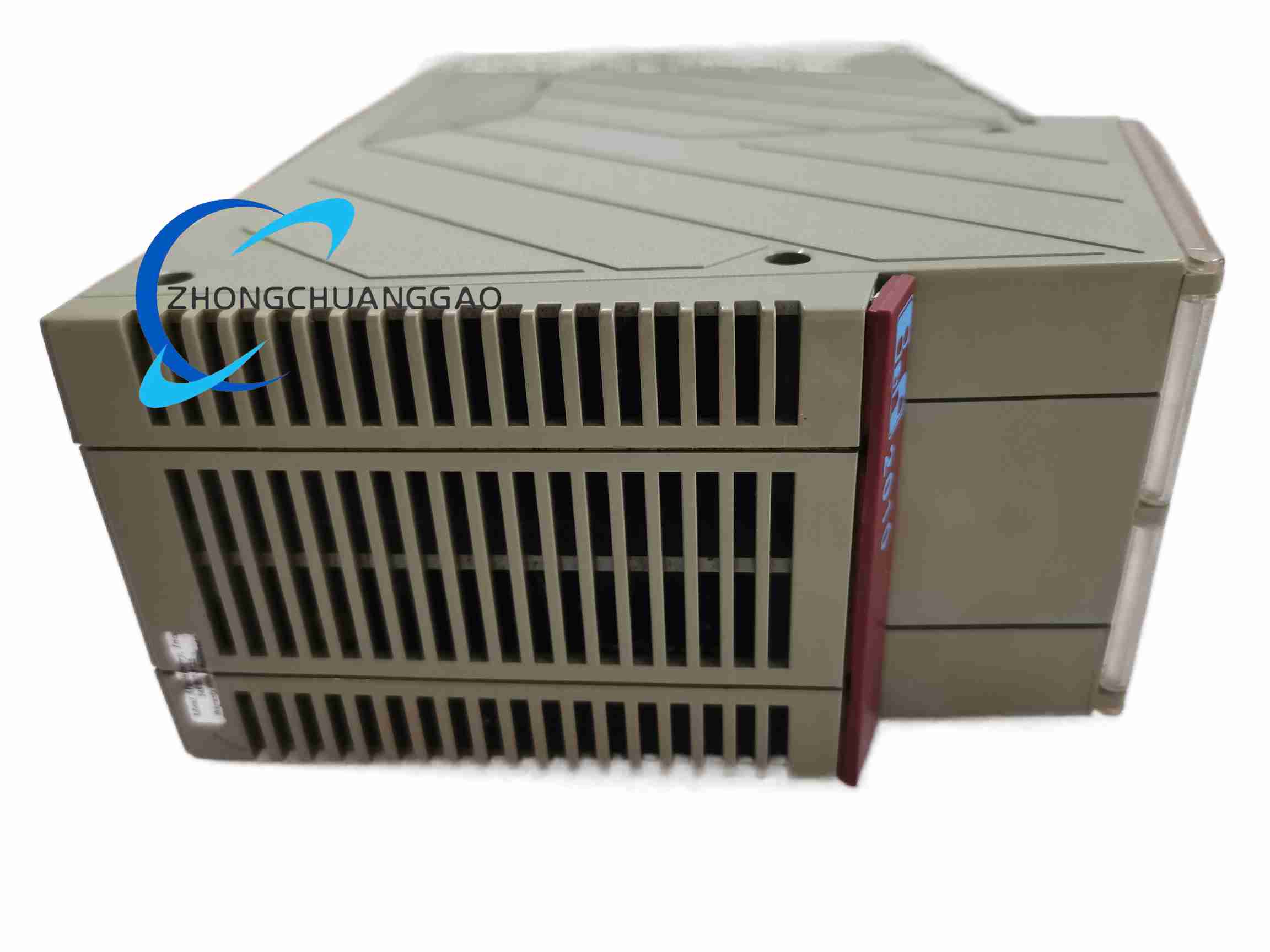

B&R 2CP100.60-1

Description

• • Interfaces:
    • 1 × RS232
    • 1 × electrically isolated RS232/TTY
    • 1 × electrically isolated RS485/RS422 (network capable)
  • Typical Instruction Cycle Time: 0.8 µs
  • Real-Time Clock: Battery-buffered, 10 ms resolution
  • System Bus: Yes
  • Key Switch: Yes
  • Reset Button: Yes
  • Operating Voltage: 120 / 230 VAC (via system power supply)
  • Battery Backup: Lithium battery (in CPU)
  • Battery Monitoring: ≥ 2 years
  • Certifications: CE, UL cULus E115267 (Industrial control equipment)
  • B&R ID Code: $20
• Note: Application memory must be ordered separately.
• Optional Memory Modules:
  • 2ME910.90-1: 64 KB SRAM, 256 KB FlashPROM (PCC OS)
  • 2ME913.90-1: 512 KB SRAM, 1 MB FlashPROM (PCC OS)
  • 2ME915.90-1: 2 MB SRAM, 2 MB FlashPROM (PCC OS)
• Optional Accessories:
  • 0AC201.91: Lithium battery set (4 pcs, 3 V / 950 mAh)
  • 0AC912.9: CAN bus adapter (1 interface)
  • 0AC913.92: CAN bus adapter (2 interfaces, 30 cm DSUB cable)
• Application: Machine automation, process control, and system integration within B&R 2005 architectures.
• Installation Requirements: Install on BP300 backplane; occupies two adjacent slots.
• Usage Notes: Application memory is ordered separately—must be installed for program execution. Replace lithium battery according to the ≥2 year monitoring interval.
