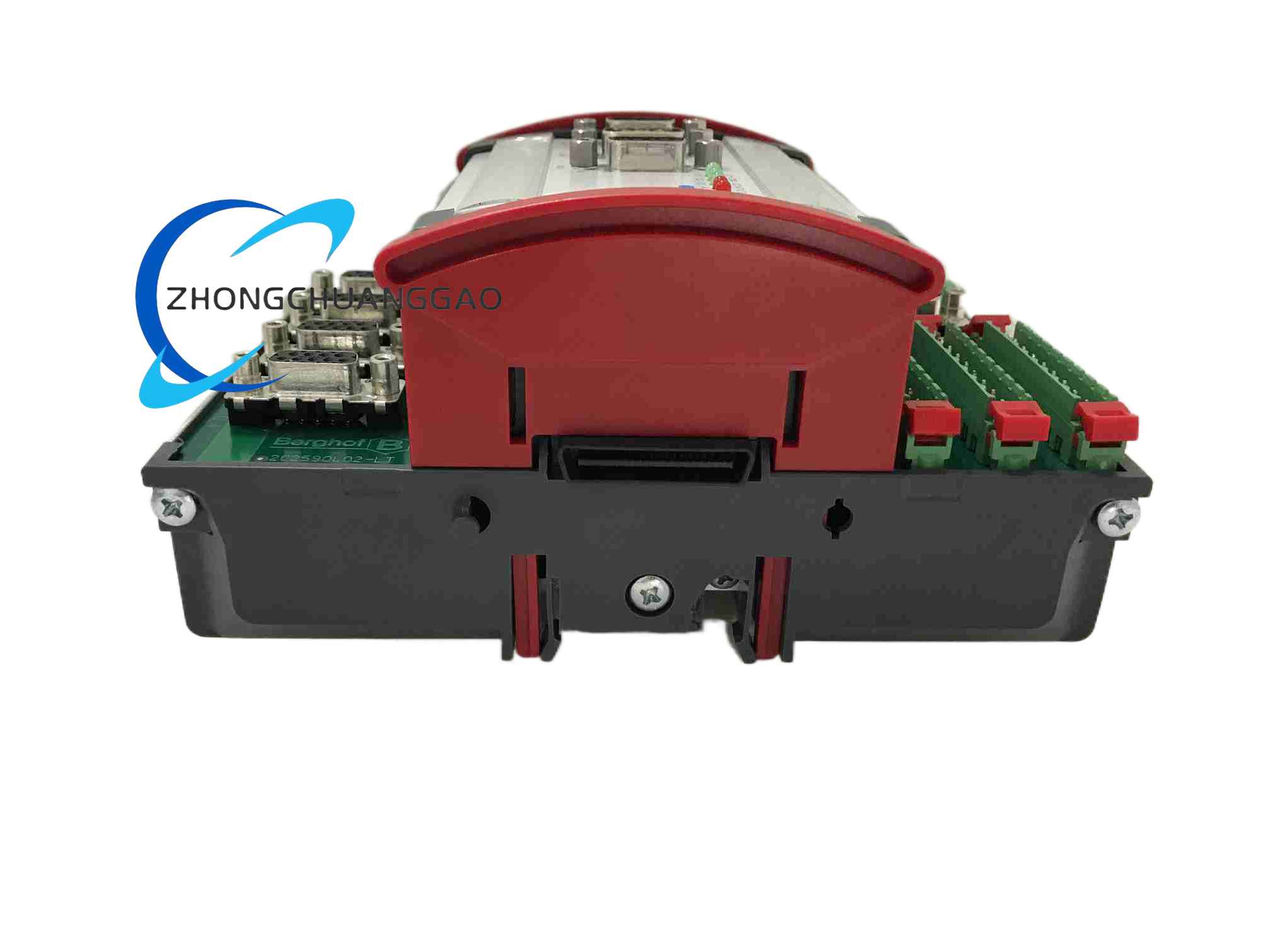

BERGHOF C1CPU-4S-07

Description

• • Product category: Controller / automation module
  • Operating voltage: 24 V DC
  • Digital inputs: 4 (configurable)
  • Digital outputs: 4 (configurable)
  • Communication protocols: Modbus RTU, CANopen
  • Power consumption: 4 W maximum
  • Operating temperature: –20°C to +60°C
  • Protection class: IP20 (dustproof)
  • Mounting: DIN rail
  • Dimensions: 90 mm × 70 mm × 60 mm
• Key Features: Compact form factor, configurable I/O, dual industrial bus support (Modbus RTU & CANopen), low power consumption, IP20 protection.
• Functional Characteristics: Capable of controlling sensors, actuators, switches, relays and other field devices; communicates with PLCs, HMIs and SCADA over Modbus RTU or CANopen.
• Application Scenarios: Space-constrained control panels, factory automation, outdoor installations, and distributed I/O nodes in industrial networks.
• Structural Characteristics: DIN-rail mountable plastic/metal hybrid enclosure, 90×70×60 mm, with terminal blocks for 4 DI and 4 DO.
• Working Principle: The controller scans its 4 configurable digital inputs, executes logic according to the application program, and drives the 4 configurable digital outputs; data exchange with the host system is carried out through Modbus RTU or CANopen.
• Installation Requirements: Securely clip onto a 35 mm DIN rail inside a control cabinet; supply 24 VDC; ensure ambient temperature stays within –20°C to +60°C; maintain IP20 environment (no direct water or heavy dust).
• Usage Notes: Configure DIP switches or software for correct I/O assignment before power-up; do not exceed 4 W total load; verify Modbus/CANopen termination resistors are properly set on the bus.
