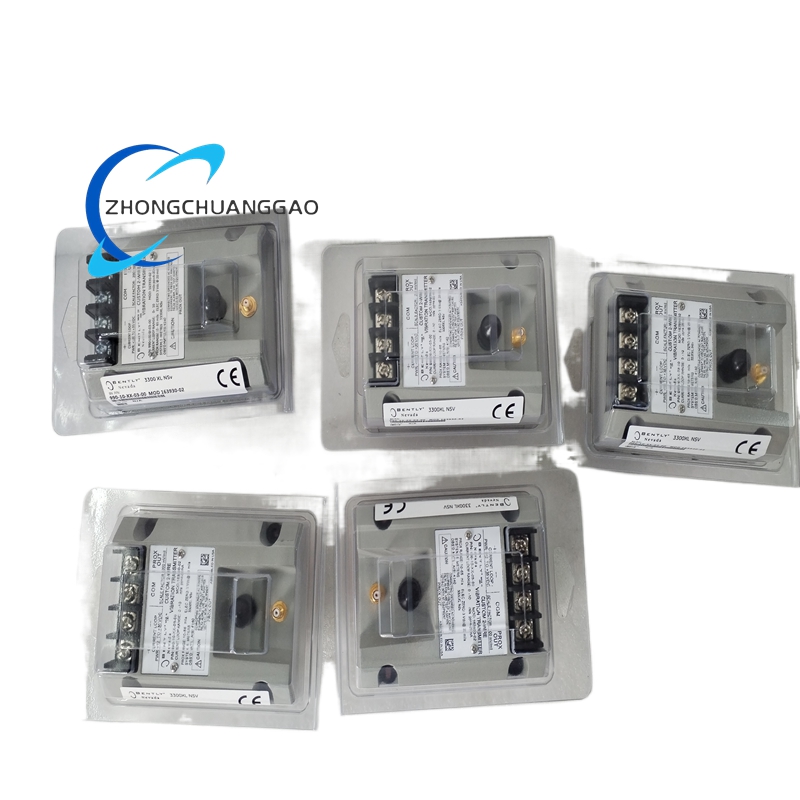

Bently Nevada 990-10-XX-03-00

Description

Basic Identification Parameters

• Brand: Bently Nevada (Baker Hughes)
• Exact Model: 990-10-XX-03-00
• Origin: United States
• Product Category: Integrated Proximity Thrust Position Transmitter / Vibration Signal Conditioner
• Standard Warranty: 12 months original factory warranty
• Compatible Probe Series: 3300 NSv Narrow Side View Eddy Current Proximity Probes

Electrical & Power Supply Specifications

• Operating Mode: Two-wire loop-powered
• Rated Supply Voltage: 24 VDC
• Operating Voltage Range: 12–35 VDC
• Maximum Loop Resistance: 500 Ω
• Quiescent Operating Current: ≤22 mA
• Inrush Current: ≤1.5 A, duration ≤3 ms
• Analog Output Signal: 4–20 mA DC standard industrial current loop

Measurement & Performance Specifications (990-10-XX-03-00 Thrust Version)

• Primary Measurement Object: Shaft Axial Thrust Displacement (Axial Position)
• Full-Scale Measurement Range: 0–10 mils peak-to-peak (0–250 μm peak-to-peak)
• System Cable Length Options (XX): 5.0 m / 7.0 m standard matching extension cable
• Valid Probe Operating Gap: 0.5–1.75 mm (20–55 mils)
• Frequency Response: 5 Hz–6000 Hz (+0 / -3 dB)
• Full-Scale Accuracy: ±1.0% FS
• Linearity Deviation: ≤0.5% FS
• Hysteresis Error: ≤0.3% FS
• Dynamic Response Time: ≤10 ms
• Built-in Diagnostic Signal Output: Dynamic vibration signal + DC gap voltage output via coaxial connector

Mechanical & Environmental Specifications

• Enclosure Protection Grade: IP65
• Housing Structure: Fully epoxy potted sealed construction
• Housing Material: Industrial flame-retardant plastic + metal base
• Mounting Method: Standard 35 mm DIN rail mounting / panel screw mounting
• Overall Dimensions: 100 mm × 74 mm × 53 mm
• Product Weight: 0.82 kg
• Operating Temperature Range: -20°C to +70°C
• Storage Temperature Range: -40°C to +85°C
• Operating Humidity: 0–100% RH, condensing environment resistant
• Anti-vibration Rating: 10 g RMS, 10–2000 Hz
• Electromagnetic Compatibility: Compliant with EN 61000-6-2 / EN 61000-6-3

Certifications

• Compliance: CE, CSA Division 2
• Industrial Standard Compliance: API 670 machinery protection standard

Core Functional Features

1. Dedicated Axial Thrust Position Monitoring Design

   Optimized signal conditioning algorithm for shaft axial displacement and thrust movement monitoring, accurately reflecting shaft axial drift, thrust bearing wear and abnormal thrust load conditions.

2. Integrated Proximitor Architecture

   Built-in complete proximity signal conditioning circuit, no external proximitor module required, greatly simplifies on-site wiring and installation.

3. Complete Fault Safety Protection Circuits

   Equipped with Not OK / Signal Defeat circuit, automatically locks output and prevents false high alarms when probe damage, cable breakage or loose connection occurs. Built-in power-up inhibit circuit eliminates signal distortion caused by power supply voltage transients.

4. Independent Zero & Span Adjustment

   Non-interacting zero and span potentiometers support on-site loop signal calibration and range fine-tuning.

5. Built-in Test Input Terminal

   Supports quick loop output verification with external signal generator without disassembling on-site wiring.

6. Dual Signal Output Mode

   Provides standard 4–20 mA control loop output for system interlock protection, and independent dynamic diagnostic signal output for advanced fault analysis.

7. Ultra-High Environmental Adaptability

   Fully potted sealed structure, resistant to high humidity, dust, oil mist and corrosion, suitable for long-term unattended operation.

8. Compact & Flexible Deployment

   Ultra-small size, adapts to narrow installation space of small and medium rotating machinery, supports direct OEM matching and retrofitting reconstruction.

Main Application Scenarios

1. Air Compressor Industry

   Axial thrust position monitoring for centrifugal air compressors, screw compressors and compressor main shaft systems.

2. Power & Turbomachinery Industry

   Thrust bearing position monitoring for small gas turbines, steam turbine auxiliary machines, motor rotors and generator shaft systems.

3. Petrochemical & Chemical Industry

   Axial displacement monitoring of large centrifugal pumps, reciprocating compressors, fan main shafts and reaction kettle drive equipment.

4. General Industrial Rotating Machinery

   Thrust position and vibration monitoring for industrial motors, high-speed centrifuges, water pumps, drainage pump stations and other key rotating assets.

5. OEM Original Equipment Matching

   Standard customized monitoring solution for machinery manufacturers integrating vibration protection into original control systems.
