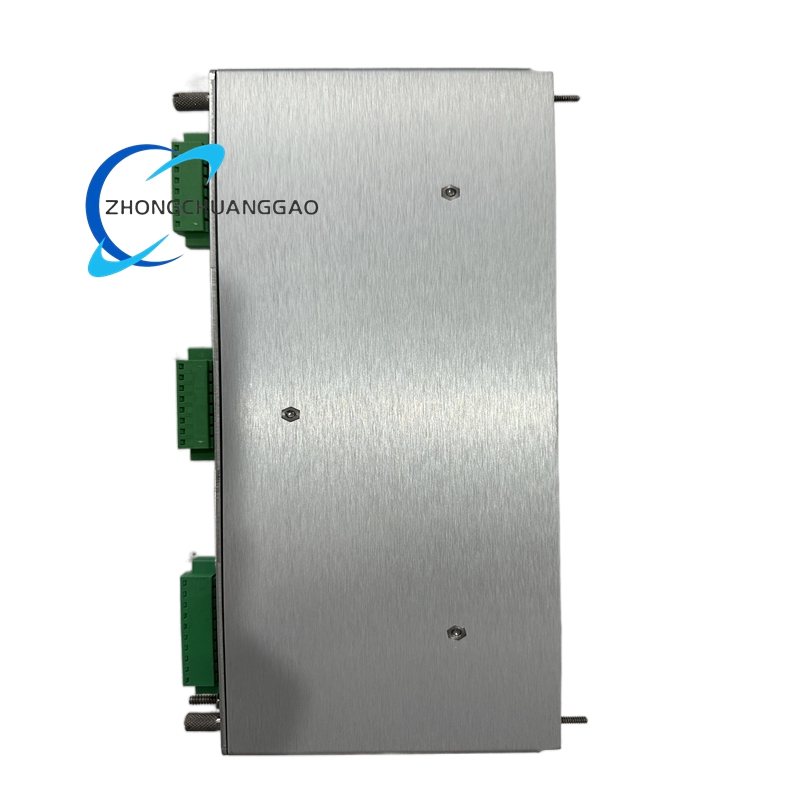

Bently Nevada 3500/72 140471-01

Description

Basic Identification Parameters

• Brand: Bently Nevada
• Part Number: 140471-01
• System Matching Model: 3500/72 Proximitor/Seismic Combined Monitor
• Product Type: 4-Channel Integrated Vibration Monitoring & Protection Monitor Module
• Origin: United States
• Product Weight: 0.55 kg
• Factory Warranty Period: 12 months original factory warranty
• Overall Dimensions: 241.3 mm × 24.4 mm × 99.1 mm
• Mounting Mode: Standard 19-inch EIA industrial rack plug-in installation, installed in dedicated monitor slot of 3500 system rack
• Protection Grade: IP20
• Certifications: CE, UL, CSA, ATEX/IECEx Hazardous Area Certification, API 670 Compliant

Electrical Specifications

• System Power Supply: 18–36 V DC, supplied by 3500 main rack power supply
• Total Power Consumption: ≤6.8 W
• Input Channel Quantity: 4 independent fully galvanic isolated analog input channels
• Supported Input Sensors: Eddy current proximity probes (3300 XL NSv), Velomitor seismic velocity sensors, ICP accelerometers
• Matching Keyphasor Input: Synchronous speed/phase signal from 3500/25 (97199-01) keyphasor module
• Isolation Level: 2500 Vrms channel-to-channel & channel-to-system bus galvanic isolation
• Output Signals:
  • Internal ±10 V DC buffered diagnostic analog signal
  • Independent SPDT alert alarm & danger trip relay contact outputs
• Relay Contact Rating: 5 A @ 250 VAC, 5 A @ 30 VDC
• Overall Measurement Accuracy: ±1.0% Full Scale
• Proximitor Sensitivity Matching: 7.87 mV/μm / 3.94 mV/μm configurable
• Signal Response Time: <15 ms
• Terminal Matching: Dedicated rear termination I/O module (external termination version)

Measurement & Functional Specifications

• Vibration Frequency Response Range: 2 Hz – 2000 Hz, ±3 dB tolerance
• Proximity Displacement Linear Range: 0.25 mm – 1.65 mm
• Seismic Velocity Measurement Range: 0 – 152 mm/s peak
• Supported Monitoring Parameters: Shaft radial displacement vibration, shaft eccentricity, casing absolute seismic velocity vibration, 1X/2X harmonic vibration, vibration orbit analysis
• Speed Matching Range: 1 RPM – 240,000 RPM
• Built-in Filters: Configurable high-pass / low-pass anti-interference filters
• Alarm Configuration: Independent dual-level alert & danger trip setpoints per channel
• Status Indication: Power OK, Channel OK, Alarm, Trip, Fault LED indicator lights

Environmental Specifications

• Operating Temperature Range: -40 ℃ to +70 ℃
• Storage Temperature Range: -51 ℃ to +85 ℃
• Operating Humidity: 0%–95% RH, non-condensing
• Shock Resistance: 15 g peak anti-vibration performance
• Electromagnetic Compatibility: Fully meets industrial EMC anti-interference standards, adapts to high EMI industrial sites

Core Functional Features

1. 4-Channel Integrated Proximitor + Seismic Combined Monitoring

   One module realizes synchronous monitoring of shaft relative vibration and casing absolute seismic vibration, completes comprehensive machinery health evaluation.

2. Full Galvanic Isolation Architecture

   Complete channel-to-channel and channel-to-system isolation thoroughly eliminates ground loop interference, common-mode noise and surge impact.

3. Keyphasor Synchronous Vibration Analysis Function

   Cooperates with 3500/25 keyphasor module to support vibration orbit analysis, 1X/2X harmonic analysis, unbalance, misalignment and rubbing fault diagnosis.

4. High-Precision Signal Conditioning & Linearization

   Built-in professional filtering, amplification and linearization circuits ensure stable and accurate measurement under complex operating conditions.

5. Programmable Dual-Level Alarm & Trip Protection Logic

   Independent alert alarm and emergency danger trip setpoints for each channel, realizes automatic machinery interlock protection.

6. Complete Embedded Self-Diagnosis Function

   Automatic detection of sensor disconnection, signal loss, channel fault and module internal fault; real-time uploads fault status to system host.

7. Safety-Grade Failsafe Protection Logic

   Automatically enters safe trip state under power failure, signal abnormal and module fault conditions to avoid machinery damage.

8. Plug-in Hot-Swap Structure

   Supports online plug and replacement without powering down the entire monitoring system, greatly reduces maintenance downtime.

9. Buffered Diagnostic Signal Output

   Reserved buffered signal outputs support oscilloscope access for on-site waveform analysis and fault troubleshooting.

Applicable Application Scenarios

• Power generation industry: Steam turbines, gas turbines, turbo-generator units, combined cycle power plants
• Petroleum & petrochemical industry: Centrifugal compressors, process pumps, fans, offshore platform heavy rotating machinery
• Chemical industry: Large high-speed compressors, reciprocating machinery, high-speed heavy-duty gearboxes
• Metallurgy, cement & mining industry: Rotary kilns, heavy grinding mills, large heavy-duty fans
• Water conservancy & wastewater treatment: Large vertical circulating pump units
• Marine industry: Ship propulsion machinery and auxiliary heavy rotating power equipment
• Hazardous area industrial sites with ATEX/IECEx certification requirements
• OEM heavy machinery manufacturing and industrial predictive maintenance condition monitoring systems

System Compatibility

• Fully compatible with Bently Nevada 3500 series full monitoring system: 3500/05 rack, 3500/15 power supply modules, 3500/20 interface module, 3500/25 (97199-01) keyphasor module, all I/O modules and relay modules
• Perfectly matches 3300 XL NSv proximity probes, 33050 series Velomitor seismic velocity sensors and extension cables
• Seamlessly connects to System 1 diagnostic analysis platform, PLC, DCS and SCADA control systems
• Compatible with official 3500 rack configuration software V3.3 and above versions
• Fully complies with API 670 international machinery protection standard requirements
