Product Short Description

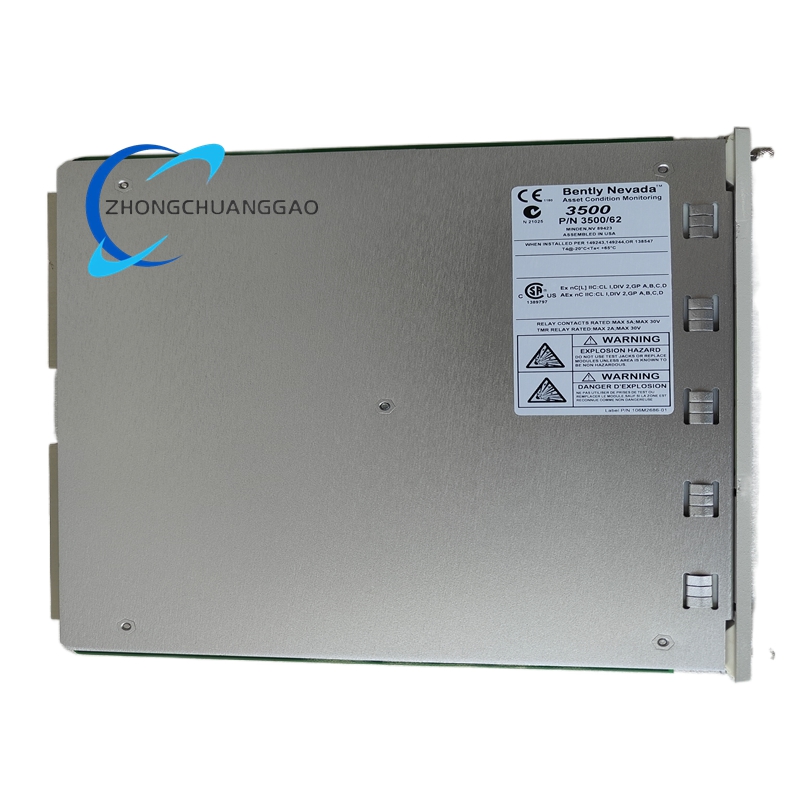

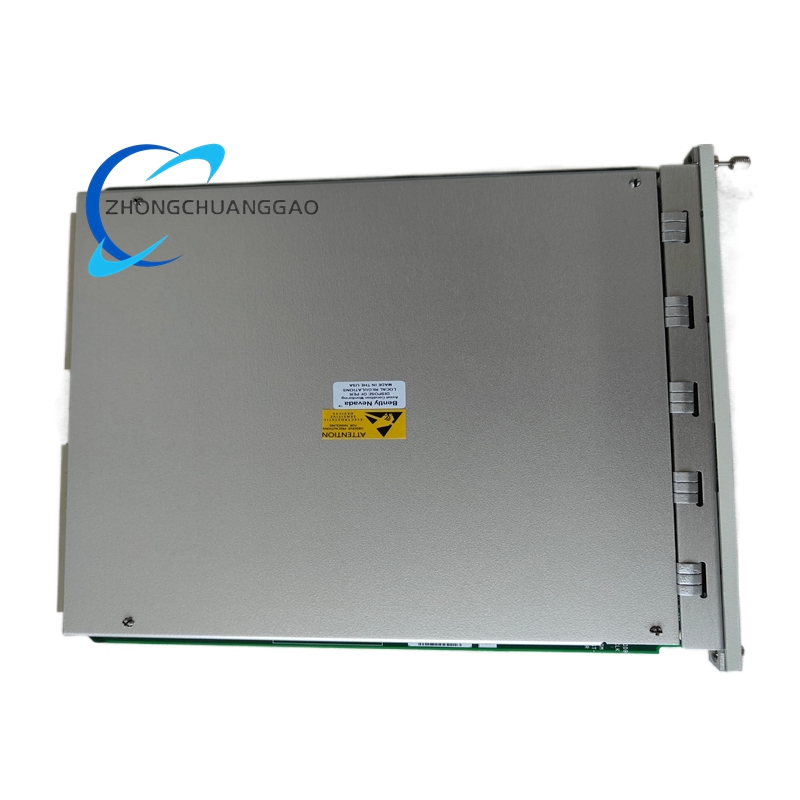

3500/62 (163179-03) is a high-precision dedicated dual-channel monitoring module from the Bently Nevada 3500 Series Machinery Protection System. It is professionally designed for continuous measurement and protection of rotating machinery axial thrust position, rotor axial displacement and shaft axial drift. This module receives conditioned analog signals from 3300 XL eddy current proximity probes and matching proximitors, performs high-precision signal processing, alarm logic judgment and protection output.
Description
Detailed Technical Specifications
| Parameter | Exact Specification |
|---|---|
| Product Series | 3500 Series Machinery Protection Monitoring System |
| Main Model | 3500/62 |
| Factory Assembly Part Code | 163179-03 |
| Channel Quantity | 2 independent fully isolated axial thrust position input channels |
| Matching Sensor Type | Bently Nevada 3300 XL eddy current proximity probes & proximitors |
| Input Signal Type | Linear analog DC voltage signal from proximitor conditioning output |
| Input Voltage Range | -1 VDC to -17 VDC full linear input range |
| Measurement Resolution | 0.1 μm |
| Measurable Axial Displacement Range | 0.25 mm to 2.25 mm standard linear range |
| System Sensitivity Matching | Fully compatible with 7.87 V/mm (200 mV/mil) 3300 XL transducer systems |
| Alarm Logic Configuration | Independent adjustable alarm 1, alarm 2, danger trip limit for each channel |
| Trip Action Mode | Latching trip / non-latching trip configurable |
| Signal Filter Bandwidth | DC to 1 kHz, optimized for low-frequency axial displacement signal |
| Power Supply | 24 VDC backplane power supplied by 3500/15 power supply module |
| Operating Current Consumption | 175 mA maximum |
| Operating Temperature Range | -40 °C to +85 °C |
| Storage Temperature Range | -55 °C to +125 °C |
| Operating Humidity | 0% to 95% non-condensing |
| Mounting Mode | Standard half-slot insertion into 3500 system rack backplane |
| Hot-Swap Support | Fully hot-swappable, no system shutdown required for replacement |
| Signal Isolation | Complete galvanic isolation between input channels and system backplane |
| Fault Diagnosis Functions | Probe open circuit, cable short circuit, signal loss, transducer fault automatic detection |
| EMC Performance | Compliant with EN 61000-6-2, EN 61000-6-4, high EMI/RFI immunity |
| Module Dimensions | Standard 3500 half-slot size |
| Module Weight | 0.37 kg |
| Compliance Standards | API 670 4th Edition, CE, UL, CSA, IECEx intrinsically safe certification |
| Origin | United States |
Core Functional Features
- Dual Independent Redundant Thrust Position Monitoring
Two fully isolated channels realize redundant mutual verification monitoring of rotor axial thrust position; greatly improves monitoring reliability and avoids single-point fault failure.
- Ultra-High Precision Axial Displacement Measurement
0.1 μm high measurement resolution, matches API 670 precision requirements; accurately captures tiny axial drift, thrust offset and rotor movement state.
- Multi-Level Configurable Alarm & Trip Protection Logic
Independent adjustable alarm 1 (warning), alarm 2 (pre-danger) and danger trip protection limits for each channel; supports latching/non-latching trip mode selection to meet different machinery safety interlock requirements.
- Low-Frequency Specialized Signal Filtering
DC–1 kHz bandwidth optimized for slow-changing axial thrust displacement; effectively filters high-frequency radial vibration noise and improves axial position measurement accuracy.
- Complete Real-Time Self-Diagnosis Function
Automatic detection of probe disconnection, cable short circuit, transducer fault and signal loss; immediately outputs fault alarm to system rack and upper monitoring platform.
- Full Galvanic Isolation Design
Electrical isolation between sensor input, module circuit and system backplane; isolates industrial electromagnetic interference and ensures long-term signal stability.
- Hot-Swappable & Fully Interchangeable Structure
Standard 3500 half-slot design, plug-and-play hot swap; fully compatible with all 3500 system racks and backplanes, no field recalibration required for replacement.
- Perfect System Integration Compatibility
Seamlessly matches 3500/15 power modules, 3500/33 Keyphasor modules, 3500/22 vibration modules and system display/relay output modules.
Typical Application Scenarios
- Power Generation Industry (Core Application)
Axial thrust position monitoring and trip protection for steam turbines, gas turbines, turbo generators and boiler feed water pumps; prevents rotor-stator axial collision and bearing burnout damage.
- Oil & Gas Industry
Axial displacement protection monitoring for natural gas compressors, pipeline booster units and refinery large rotating equipment; suitable for flammable and explosive hazardous areas.
- Petrochemical & Chemical Industry
Thrust position monitoring for centrifugal process pumps, high-power process compressors, large axial flow fans and mixer rotating shafts; monitors shaft thrust offset, bearing wear and axial rubbing faults.
- Metallurgy & Cement Industry
Axial position protection monitoring for rotary kilns, rolling mill main shafts, heavy crushers and induced draft fans under high-temperature and strong-vibration harsh environments.
- Heavy Manufacturing & Power Equipment Testing
Startup/shutdown transient axial thrust monitoring, operation protection and factory testing for large motor units and rotary processing equipment.
System Matching & Reliability Information
- Matching devices: 3300 XL series proximity probes, 3300 XL proximitors, 3500 system racks/backplanes, 3500/15 power modules, 3500/33 Keyphasor modules, 3500/22 vibration modules.
- Warranty period: 12 months for brand new original factory sealed products.
- Product status: Original brand new, in stock, available for global delivery.
- Installation requirement: Installed in dedicated thrust position monitoring slot of 3500 system rack; supports dual redundant module configuration for high-reliability power plant projects.
