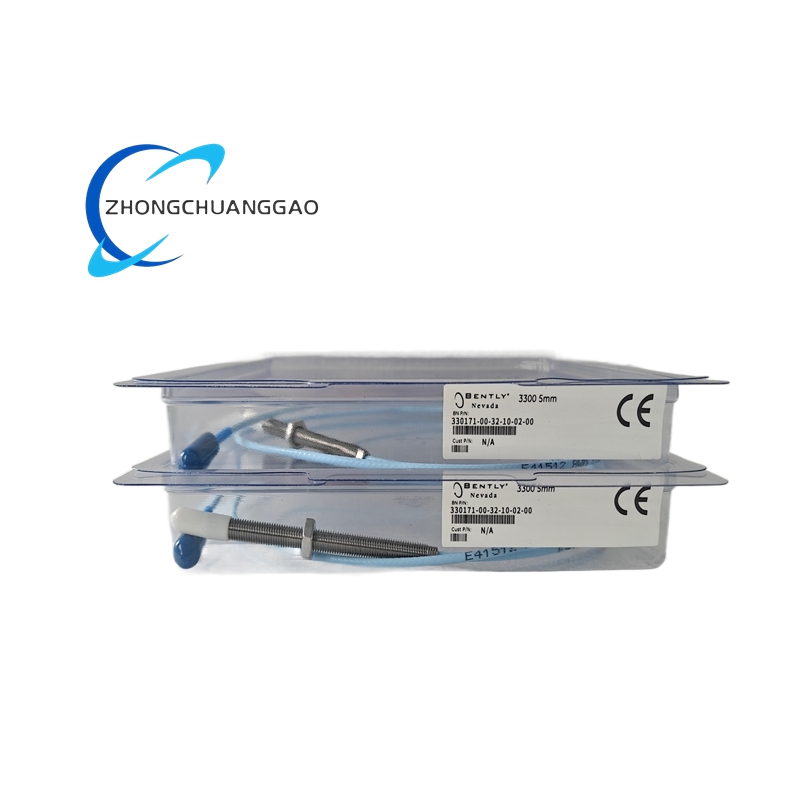

Bently Nevada 330171-00-32-10-02-00

Description

Basic Identification Parameters

• Brand: Bently Nevada (Baker Hughes Group)
• Exact Model: 330171-00-32-10-02-00
• Product Series: 3300 XL NSv Narrow Side View Series
• Product Category: Side-View Right-Angle Integrated Eddy Current Proximity Probe (Built-in Cable Type)
• Origin: United States
• Standard Warranty: 12 months original factory warranty
• Matching Equipment: 3300 XL NSv Proximitor Signal Conditioner, 3300 Series, 3500 Series Machinery Protection System
• Probe Detection Head Style: Right-angle side-view radial emission
• Mounting Thread: M10 × 1 metric thread
• Probe Tip Material: High-temperature resistant PPS engineering plastic
• Probe Body Material: AISI 304 Premium Stainless Steel
• Cable Type: FEP high-temperature resistant double-shielded coaxial cable
• Integrated Fixed Cable Length: 10 meters
• Connector Type: Original ClickLoc™ miniature gold-plated coaxial positive locking connector

Measurement & Electrical Specifications

• Measurement Principle: Non-contact Eddy Current Induction Technology
• Effective Linear Measuring Range: 0–1.8 mm
• Optimal Operating Working Gap: 1.0 mm
• System Sensitivity (ISF): 7.87 V/mm (200 mV/mil)
• Operating Power Supply: -18 VDC to -26 VDC negative DC power (supplied by matching proximitor)
• Frequency Response Range: DC (0 Hz) – 10 kHz flat amplitude response
• Full-Scale Measurement Accuracy: ±0.5% Full Scale
• Static Gap Resolution: 0.1 μm
• Temperature Drift Coefficient: ≤0.01% FS/°C
• Dynamic Response Time: ≤5 ms
• Output Signal: Composite signal of DC static gap voltage + AC dynamic vibration voltage
• Output Impedance: Standard 50 Ω impedance
• Minimum Effective Conductive Target Diameter: ≥25 mm circular surface

Mechanical & Environmental Specifications

• Side-view detection head offset dimension: 32 mm (fixed by model code)
• Minimum Cable Bend Radius: 25.4 mm
• Cable Pull Resistance Strength: ≥330 N
• Environmental Protection Grade: IP67 dustproof, waterproof and oil-proof
• Operating Temperature Range: -40°C to +85°C continuous operation
• Probe Tip Maximum Short-Term Temperature Resistance: +177°C
• Cable Operating Temperature Range: -40°C to +105°C
• Storage Temperature Range: -55°C to +125°C
• Operating Humidity: 0–95% RH, non-condensing
• Anti-vibration Performance: 15 g RMS, 10–2000 Hz
• Anti-shock Performance: 100 g, 11 ms duration
• Electromagnetic Compatibility: Compliant with EN 61000-6-2, EN 61000-6-3 industrial EMC standards

Certifications & Compliance

• Industry Standard Compliance: API 670 4th Edition Machinery Protection Standard
• Safety Certifications: CE, ATEX, IECEx Intrinsically Safe Certified
• Full backward compatibility with all original Bently Nevada 3300 XL NSv, 3300 and 3500 protection systems

Core Functional Features

1. Unique Right-Angle Side-View Detection Structure

   Radial side-emitting design completely solves installation restrictions of conventional front-view probes, perfectly adapts to narrow bearing boxes, compact equipment structures and occasions without axial installation space.

2. Integrated Fixed Cable Integrated Molding Design

   Integrated probe and cable structure eliminates intermediate connectors, reduces signal attenuation and fault points, greatly improves overall system long-term reliability.

3. Simultaneous Static & Dynamic Multi-Parameter Monitoring

   Independently outputs DC axial thrust position gap signal and AC radial vibration dynamic signal, realizes synchronous monitoring of shaft axial displacement, rotor vibration, eccentricity and Keyphasor speed.

4. Ultra-Low Temperature Drift High Precision Performance

   Professional temperature compensation circuit, extremely low temperature drift coefficient, maintains stable accurate measurement data under drastic ambient temperature changes.

5. Patented ClickLoc™ Reliable Locking Connector

   Gold-plated positive locking coaxial connector, tool-free quick plug/unplug, low signal loss, stable connection under strong vibration conditions.

6. Full Robust Harsh Environment Adaptability

   Full stainless steel body, high-temperature resistant cable, IP67 protection, resistant to high temperature, oil mist, corrosion, dust and moisture.

7. Perfect NSv System Matching Performance

   Original factory dedicated NSv series probe, fully matches NSv dedicated proximitors, no additional on-site calibration required after installation.

8. Full API 670 Safety Compliance

   Meets global machinery protection safety standards, applicable to safety-critical interlock protection occasions.

Main Application Scenarios

1. Power Generation Industry

   Side-view shaft vibration and thrust position monitoring for compact steam turbine auxiliary machines, small gas turbines, generator auxiliary bearing systems with narrow installation space.

2. Oil & Natural Gas Industry

   Narrow-space rotating machinery monitoring for offshore platform compact compressors, small gas turbines, pipeline pump units and gas transmission station compact equipment.

3. Petrochemical & Chemical Industry

   Side-view health monitoring of compact centrifugal pumps, small compressors, fan main shafts and compact reaction kettle drive rotating machinery.

4. General Industrial Rotating Machinery

   Vibration and position monitoring for compact industrial motors, high-speed small centrifuges, miniature pump units with limited bearing box installation space.

5. Equipment Maintenance & Retrofit Projects

   Original spare replacement and upgrade of legacy 3300 XL NSv side-view probes, realizing seamless continuation of original narrow-space machinery protection monitoring functions.
