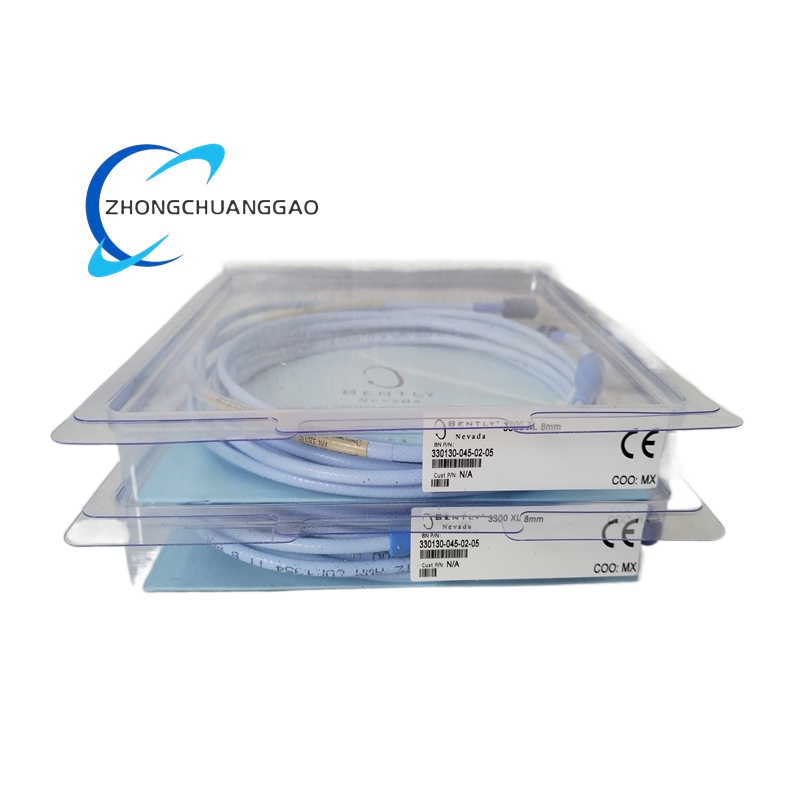

Bently Nevada 330130-045-02-05

Description

Basic Identification Parameters

• Brand: Bently Nevada (Baker Hughes Group)
• Exact Model: 330130-045-02-05
• Product Series: 3300 XL Series
• Product Category: Proximity Probe Double-Shielded Signal Extension Cable
• Origin: United States
• Standard Warranty: 12 months original factory warranty
• Matching Devices: All 3300 XL series eddy current proximity probes, 3300 XL proximitors, 3300/3500 machinery protection systems
• Total Cable Length: 4.5 meters
• Cable Structure: Double-shielded high-performance industrial coaxial cable

Electrical & Signal Transmission Specifications

• Characteristic Impedance: 50 Ω standard matching impedance
• Conductor Material: High-purity oxygen-free copper inner conductor
• Insulation Material: FEP fluoroplastic high-temperature resistant insulation
• Shielding Structure: Double-layer copper braided shielding (inner + outer shield)
• Signal Attenuation: Ultra-low attenuation ≤0.1 dB/m at 10 kHz
• Operating Frequency Range: DC (0 Hz) – 10 kHz full flat response
• Isolation Resistance: ≥1000 MΩ
• Insulation Voltage Withstand: 1000 VAC
• Signal Transmission Delay: ≤1 μs
• Compatibility System Sensitivity: Fully matches 7.87 V/mm (200 mV/mil) standard system sensitivity

Connector & Mechanical Specifications

• Connector Type (Both Ends): Original ClickLoc™ miniature gold-plated coaxial positive locking connector
• Connector Material: Gold-plated contact, metal locking shell
• Minimum Cable Bend Radius: 25.4 mm (1 inch)
• Cable Pull Resistance Strength: ≥330 N
• Overall Cable Outer Diameter: 6.8 mm
• Cable Outer Sheath Material: Industrial oil-resistant, corrosion-resistant PVC composite material

Environmental Specifications

• Environmental Protection Grade: IP67
• Operating Temperature Range: -40°C to +105°C continuous operation
• Storage Temperature Range: -55°C to +125°C
• Operating Humidity: 0–95% RH, non-condensing
• Anti-vibration Performance: 15 g RMS, 10–2000 Hz
• Anti-oil, anti-corrosion, anti-chemical solvent performance
• Electromagnetic Compatibility: Compliant with EN 61000-6-2, EN 61000-6-3 industrial EMC standards

Certifications & Compliance

• Industry Standard Compliance: API 670 4th Edition Machinery Protection Standard
• Safety Certifications: CE, ATEX, IECEx Intrinsically Safe Certified
• Full compatibility with original 3300 XL probe-proximitor-cable matching system

Core Functional Features

1. Standard 50Ω Impedance Perfect Matching

   Strict 50Ω characteristic impedance design, fully matches 3300 XL probe and proximitor impedance, completely eliminates signal reflection distortion and ensures maximum signal fidelity transmission.

2. Double-Shielded Ultra-High Anti-Interference Performance

   Double copper braided shielding structure, effectively isolates external industrial electromagnetic interference, power frequency interference and cable radiation interference, ensures stable vibration and position signal transmission in strong interference sites.

3. Ultra-Low Attenuation High-Fidelity Signal Transmission

   High-purity oxygen-free copper conductor and FEP insulation material achieve ultra-low signal attenuation, fully retains micron-level tiny vibration signals and static gap position signals.

4. Original ClickLoc™ Locking Connectors at Both Ends

   Gold-plated positive locking connectors on both ends, tool-free quick plug and unplug, stable connection under strong vibration, low contact resistance and long service life.

5. High-Temperature Resistant Harsh Environment Adaptability

   FEP high-temperature insulation, oil-resistant corrosion-resistant sheath, wide temperature range, IP67 protection, suitable for high temperature, oil mist, dust and corrosive industrial sites.

6. Complete API 670 System Matching Compliance

   Original factory matching cable, fully conforms to API 670 transducer system specifications, no additional calibration required after installation, maintains original system measurement accuracy.

7. Integrated System Stability Guarantee

   Original complete matching set of probe + cable + proximitor, eliminates signal drift caused by non-original cables, ensures full-life stable measurement performance.

8. Flexible On-Site Layout Adaptability

   4.5m standard length meets most on-site installation distance requirements between field probes and indoor monitoring cabinets, supports reasonable cable routing and layout.

Main Application Scenarios

1. Thermal Power Generation Industry

   Signal transmission cables for steam turbine, gas turbine, generator rotor bearing vibration and axial thrust position 3300 XL monitoring systems.

2. Oil & Natural Gas Industry

   Extension cables for offshore platform compressors, gas turbines, oil pipeline pump units and gas transmission station rotating machinery proximity transducer systems.

3. Petrochemical & Chemical Industry

   Signal transmission cables for centrifugal compressors, reciprocating compressors, large centrifugal pumps, fans and reaction kettle drive rotating machinery monitoring systems.

4. Heavy Metallurgy & Manufacturing Industry

   Matching extension cables for large rolling mill main shafts, high-speed centrifuges, heavy industrial motors and generator unit proximity monitoring systems.

5. Water Conservancy & Municipal Industry

   Signal transmission cables for large circulating water pumps, drainage pump stations and hydraulic turbine unit vibration monitoring systems.

6. Equipment Maintenance & Retrofit Projects

   Original spare replacement of old damaged extension cables, system upgrade and reconstruction projects for 3300/3500 machinery protection systems.
