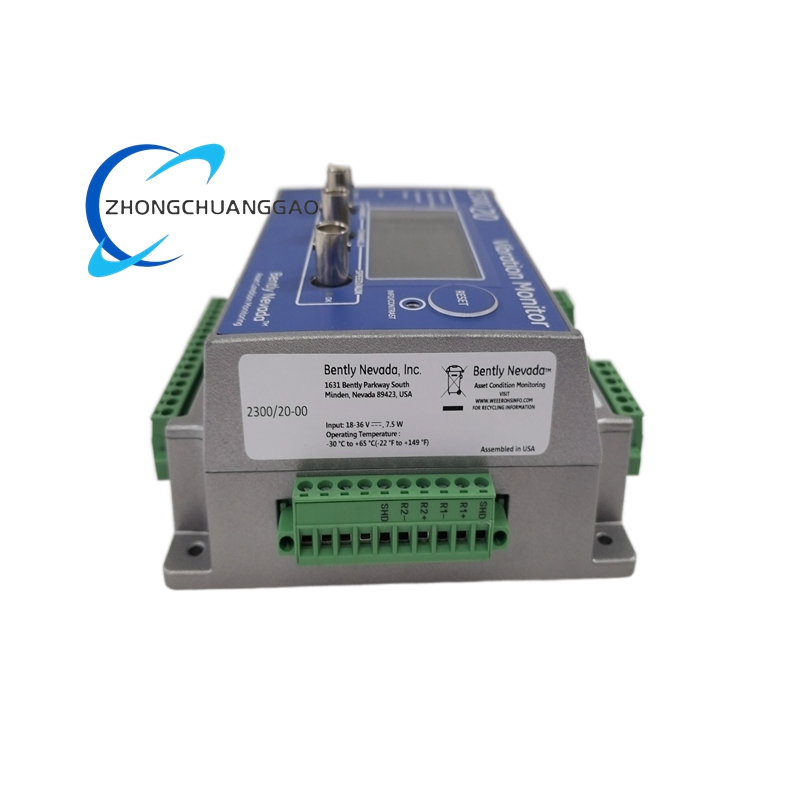

Bently Nevada 2300/20-00

Description

Basic Identification Parameters

• Brand: Bently Nevada
• Part Number: 2300/20-00
• Product Series: 2300 Series Standalone Vibration Monitor
• Product Type: Integrated Multi-Channel Vibration & Speed Condition Monitor
• Origin: United States
• Product Weight: 0.85 kg
• Factory Warranty Period: 12 months original factory warranty
• Overall Dimensions: 145 mm × 110 mm × 58 mm
• Mounting Mode: Standard 35 mm DIN rail mounting
• Protection Grade: IP66 / NEMA 4X
• Certifications: CE, UL, CSA, API 670 Compliant
• MTBF: >50,000 operating hours

Electrical Specifications

• Operating Power Supply: 18–36 V DC wide input, nominal 24 V DC
• Total Power Consumption: 6.5 W maximum
• Input Channels:
  • 2 independent seismic/proximity measurement channels
  • 1 dedicated speed measurement channel
• Supported Input Sensors: Velomitor velocity sensors, ICP piezoelectric accelerometers, 3300 XL/NSv proximity probes, magnetic speed pickups, proximity switches
• Isolation Level: 1500 Vrms channel-to-power isolation
• Analog Outputs: 2 independent 4–20 mA DC loop-powered outputs (corresponding to 2 vibration channels)
• Relay Outputs: 2 independent SPDT alarm/danger relay contacts
• Relay Contact Rating: 5 A @ 250 VAC, 5 A @ 30 VDC
• Diagnostic Outputs: 3 BNC buffered transducer signal outputs for oscilloscope diagnosis
• Communication Interface: 10/100 Base-T Ethernet, Modbus TCP/IP protocol
• Measurement Accuracy: ±0.5% Full Scale
• Signal Response Time: <20 ms
• Terminal Connection: Pluggable anti-loosening green screw terminals

Measurement & Frequency Specifications

• Vibration Frequency Response Range: 10 Hz – 1000 Hz (±3 dB tolerance)
• Accelerometer Input Range: 2–80 g peak
• Velocity Measurement Range: 0–152 mm/s peak
• Proximity Displacement Range: 0.25–1.65 mm linear range
• Speed Measurement Range: 1 RPM – 120,000 RPM
• Built-in Filters: Configurable high-pass / low-pass anti-interference filters
• Local Display: Integrated LCD screen for real-time vibration value, speed value and status display

Environmental Specifications

• Operating Temperature Range: -40 ℃ to +70 ℃
• Storage Temperature Range: -55 ℃ to +85 ℃
• Operating Humidity: 5%–95% RH, non-condensing
• Shock Resistance: 10 g peak anti-vibration performance
• Electromagnetic Compatibility: Fully meets industrial EMC anti-interference standards

Core Functional Features

1. 3-Channel Integrated Monitoring Architecture

   Dual seismic/proximity vibration channels + 1 independent speed channel, realizes synchronous monitoring of casing absolute vibration, shaft relative vibration and rotating speed.

2. Multi-Sensor Universal Compatibility

   One monitor adapts to velocity sensors, accelerometers, proximity probes and speed pickups, meets diversified on-site monitoring requirements.

3. Local Real-Time LCD Display

   Built-in LCD screen directly shows measured vibration, speed values and operating status on site, no upper computer required for on-site viewing.

4. Dual Programmable Alarm Relays

   Supports independent configuration of alert alarm and danger trip setpoints for each channel, with independent relay output for equipment interlock protection.

5. Dual 4–20 mA Analog Outputs

   Standard industrial current outputs realize seamless integration with PLC, DCS and local display instruments.

6. BNC Buffered Diagnostic Signal Outputs

   Reserved diagnostic signal interfaces support oscilloscope access for waveform analysis and fault diagnosis.

7. Ethernet Modbus TCP Communication

   Supports remote data upload, parameter configuration and trend monitoring, compatible with System 1 diagnostic platform.

8. Standalone Decentralized Operation Design

   Independent operation without 3500 system rack, compact size, low cost, simple installation and maintenance, ideal for decentralized balance-of-plant machinery monitoring.

9. Complete Self-Diagnosis & Fail-Safe Logic

   Automatic detection of sensor disconnection, signal loss and module faults; enters safe state under abnormal conditions to avoid false alarms.

Applicable Application Scenarios

• Power generation industry: Auxiliary pumps, fans, motors, auxiliary equipment of steam/gas turbine units
• Petroleum & petrochemical industry: Process pumps, small centrifugal compressors, fans, offshore platform auxiliary machinery
• Chemical industry: Pump units, small compressors, gearbox auxiliary equipment
• Metallurgy, cement & mining industry: Grinding mills, small fans, heavy auxiliary rotating machinery
• Water conservancy & wastewater treatment: Circulating pumps, vertical turbine pump units
• Pulp & paper manufacturing industry: Roller equipment, fan motor units
• Marine industry: Ship auxiliary rotating power equipment
• OEM machinery manufacturing and industrial decentralized predictive maintenance systems

System Compatibility

• Fully compatible with Bently Nevada 3300 XL / 3300 NSv proximity probes, 33050 series Velomitor velocity sensors and standard ICP accelerometers
• Seamlessly connects to PLC, DCS, SCADA systems and local display instruments via 4–20 mA outputs
• Supports remote communication and configuration with System 1 diagnostic platform via Ethernet Modbus TCP
• Compatible with official 2300 series PC configuration software
