Product Short Description

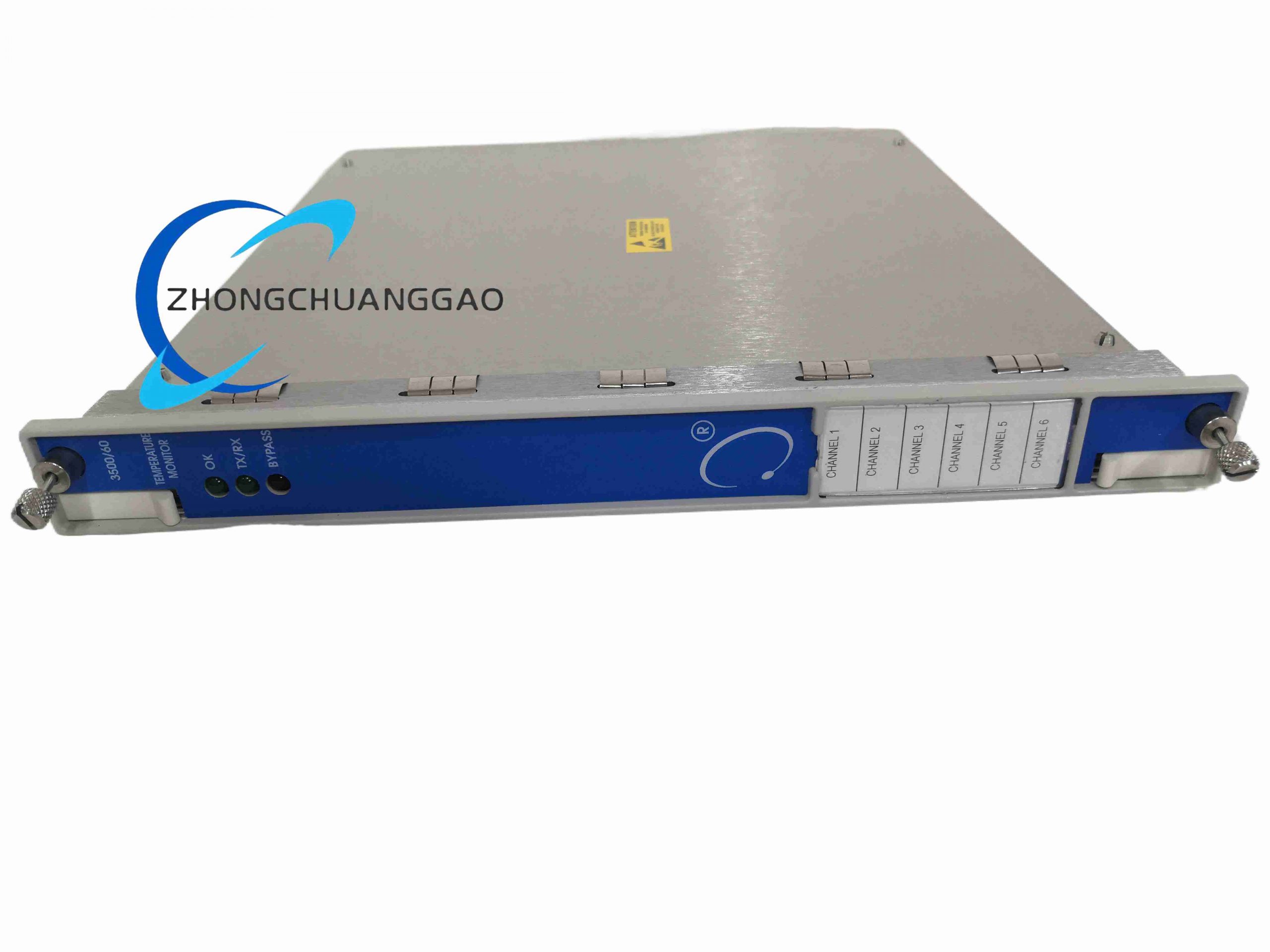

Product Name: 3500/60 Temperature Monitor Module, 6-channel, no recorder output.
Product Introduction: Legacy 6-channel temperature protection module for Bently Nevada 3500 Machinery Protection System. Accepts RTD and thermocouple inputs, executes alert/danger alarm logic, but lacks per-channel analog recorder outputs (key difference vs 163179-02).
Description
Technical Specifications:
- Channels: 6 independent temperature inputs
- Sensor Support: RTD (Pt100, Ni100, 2/3/4-wire), TC (J/K/T/E/S/R/B)
- Alarm: Programmable Alert and Danger per channel
- Recorder Output: None (internal only)
- Accuracy: ±0.13 % of setpoint
- Power: From 3500 backplane (approx. 9 W)
- Operating Temp: -30 °C to +65 °C
- Weight: Approx. 0.9 kg
- Dimensions: 241 × 24 × 242 mm (3500 standard module width)
Functional Features: Mixed RTD/TC on same module (with non-isolated I/O), TMR-capable, front config via 3500 Rack Configuration Software.
Application Scenarios: Bearing/winding temperature of turbines, compressors, pumps, motors in power, oil & gas, metallurgy (where external trending not required).

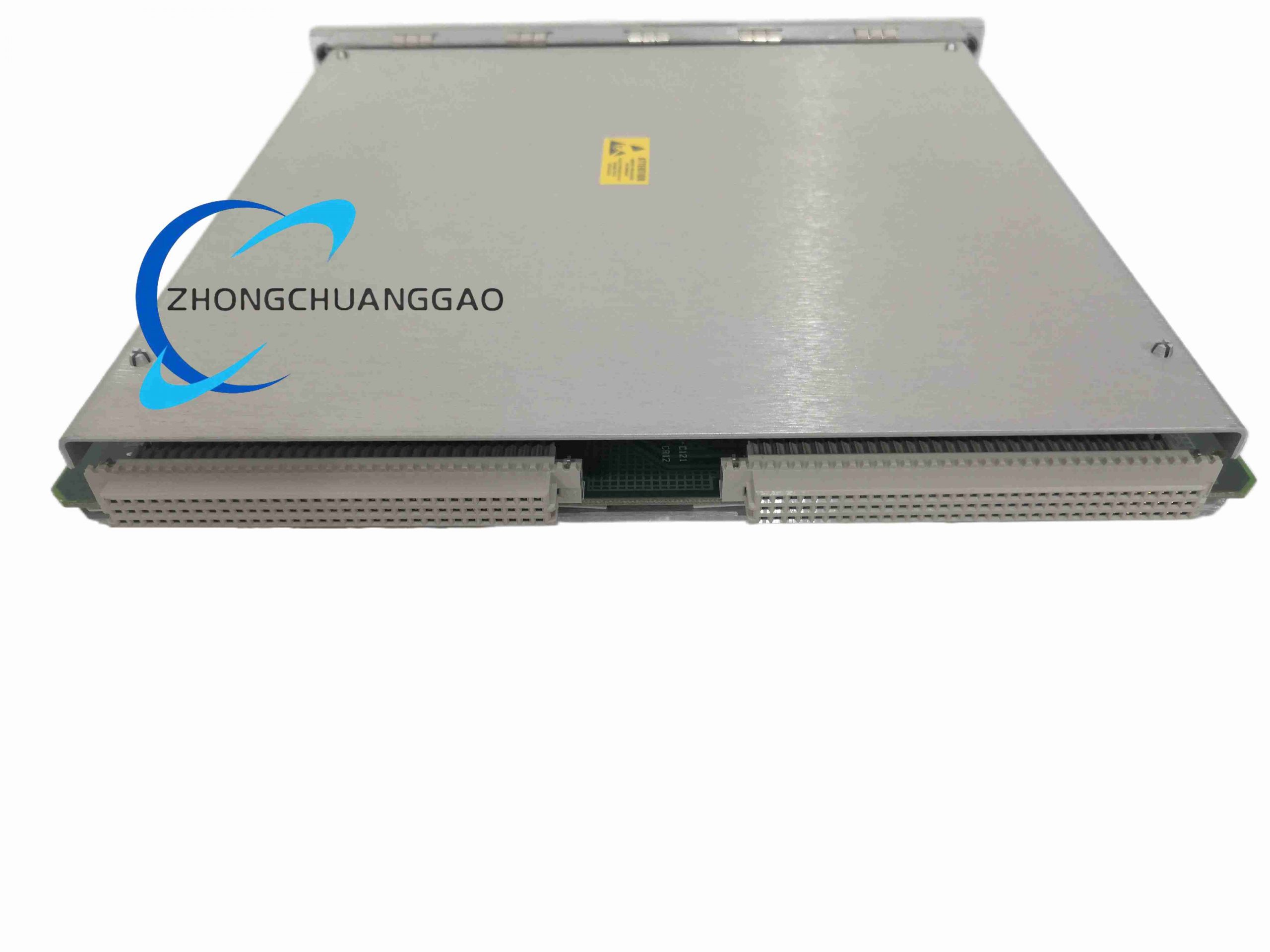

Structure & Material: 3500 front-panel aluminum faceplate, PCB with signal conditioning ASICs, backplane connector.
Working Principle: Conditions RTD/TC signals, compares to configured thresholds, votes alarm relays through 3500 relay module, no external 4–20 mA out.
Installation Requirements: Insert in 3500 rack slot, pair with I/O module (133819-02 non-isolated or 133835-02 isolated), wire field sensors to external terminal block.
Usage Notes: Superseded by 163179-02 for new projects needing DCS trending. Do not swap directly with -02 without checking recorder wiring expectations.
