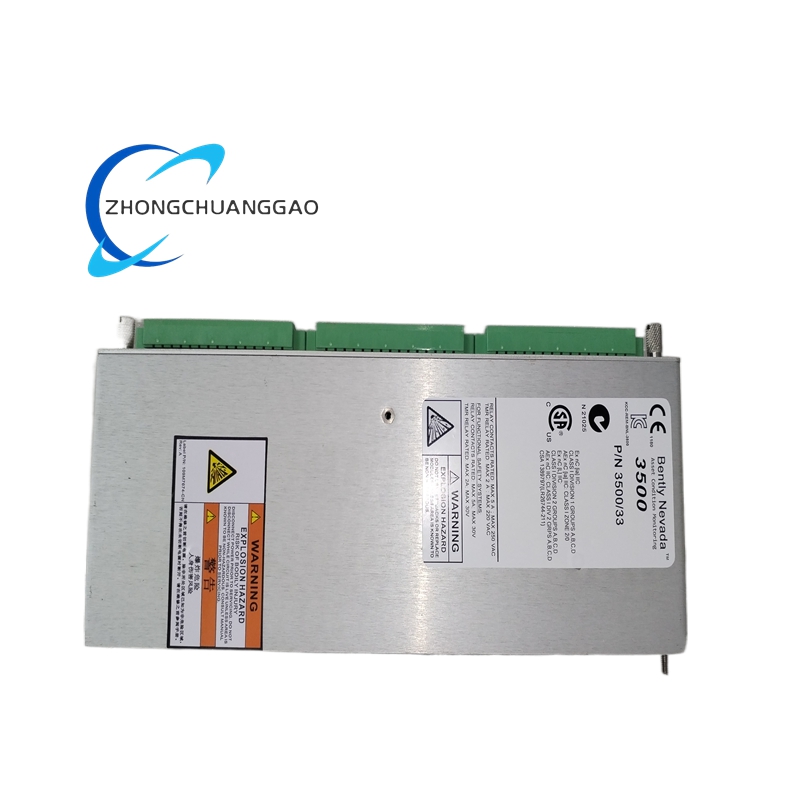

Bently Nevada 149992-02

Description

Basic Identification Parameters

• Brand: Bently Nevada (Baker Hughes Group)
• Exact Model: 149992-02
• Equivalent System Model: 3500/33 Failsafe Relay Module
• Product Category: 16-Channel Failsafe Relay Output / Machinery Safety Interlock Protection Module
• Origin: United States
• Standard Warranty: 12 months original factory warranty
• Installation Method: Standard plug-in insertion into dedicated right-side slots of 3500 monitoring rack backplane
• Module Structure: Standard full-height modular design
• System Compatibility: Full compatibility with all 3500 series monitor modules, power modules, barrier modules and communication modules

Power Supply Specifications

• Operating Power Supply: Powered by internal 3500 system backplane 24 VDC
• Operating Voltage Range: 18–36 VDC
• Typical Power Consumption: 5.8 W
• Maximum Power Consumption: 6.5 W
• Built-in protection: Overvoltage, overcurrent, reverse polarity and surge protection circuits

Relay Channel & Electrical Specifications

• Total Independent Relay Output Channels: 16 channels
• Channel Grouping: 4 groups × 4 independent channels

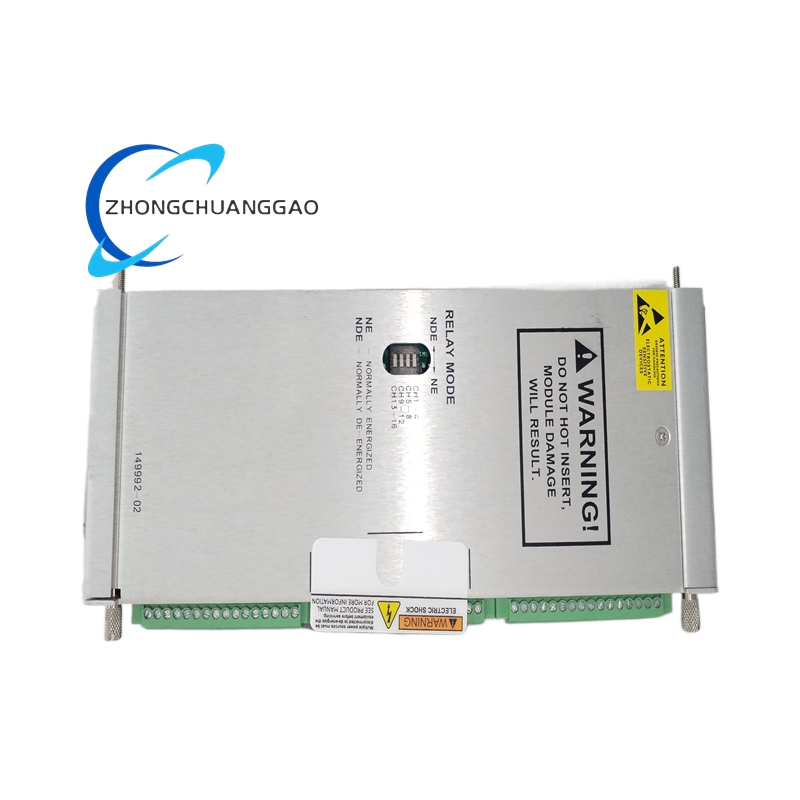

• Relay Operation Mode: Four groups independently switchable between Normally De-energized (ND) and Normally Energized (NE) failsafe modes
• Standard Built-in Relay Arc Suppressor: 250 Vrms rated
• Relay Mechanical Service Life: 10,000 switching cycles
• AC Contact Ratings (Resistive Load): Max 250 VAC, Max 3 A, Max 1200 VA
• DC Contact Ratings (Resistive Load): Max 30 VDC, Max 5 A
• Minimum Switched Load: 100 mA @ 5 VDC
• Relay Switch Response Time: ≤15 ms
• Channel Mutual Isolation Voltage: 250 VAC

Logic & Control Specifications

• Supported Input Logic Sources: Warning alarm, danger alarm, channel Not-OK fault status, single/multi-channel measured variables
• Configurable Logic Type: Independent AND logic, OR logic voting for each relay channel
• Logic Configuration Tool: 3500 Rack Configuration Software
• Failsafe Mechanism: Automatically outputs safe failure state under power loss, communication fault and module abnormal status
• Front Panel Indicators: Power OK indicator, TX/RX communication status indicator

Mechanical & Environmental Specifications

• Enclosure Protection Grade: IP20 (rack internal protection)
• Housing Structure: Fully epoxy potted sealed industrial structure
• Housing Material: Industrial metal shielding shell + high-temperature resistant flame-retardant circuit board
• Overall Dimensions: 241 mm × 24.4 mm × 242 mm (standard 3500 full-height size)
• Product Weight: 0.52 kg
• Operating Temperature Range: -40°C to +85°C
• Storage Temperature Range: -55°C to +105°C
• Operating Humidity: 0–95% RH, non-condensing
• Anti-vibration Performance: 15 g RMS, 10–2000 Hz
• Electromagnetic Compatibility: Compliant with EN 61000-6-2, EN 61000-6-3 industrial EMC standards

Certifications & Compliance

• Industry Standard Compliance: API 670 Machinery Protection Standard
• Safety Certifications: CE, ATEX, IECEx, CSA Class 1 Division 2 Hazardous Area Certified
• Full compliance with original 3500 system factory installation and acceptance specifications

Core Functional Features

1. 16-Channel Independent Failsafe Relay Output

   Equipped with 16 fully independent safety relay contacts, supports separate configuration of each channel interlock logic and failsafe mode, fully meets multi-point machinery safety protection requirements.

2. Advanced Configurable Voting Logic Function

   Supports free programming of AND/OR interlock voting logic for each relay channel through configuration software, realizes flexible linkage control of single-channel or multi-channel alarm signals.

3. Professional Failsafe Safety Design

   Automatically triggers safe output state under power failure, communication interruption, module fault and sensor abnormality, completely avoids false interlock and dangerous misoperation actions.

4. Four-Group Switchable Working Mode

   Four channel groups support independent selection of Normally De-energized or Normally Energized mode, adapts to different on-site safety interlock control requirements.

5. Built-In High-Performance Arc Suppression Circuit

   Standard integrated 250Vrms arc suppressor, effectively reduces relay contact arcing, prolongs contact service life and improves switching stability.

6. Real-Time Status Visual Monitoring

   Front-panel OK running indicator and TX/RX communication indicator, intuitively reflects module operating status and data communication status.

7. Fully Potted Sealed Anti-Harsh Design

   Epoxy sealed structure, strong anti-vibration, anti-dust and anti-corrosion performance, supports long-term stable operation in unattended industrial sites.

8. Perfect 3500 System Seamless Integration

   Fully matches original 3500 system backplane communication and logic rules, realizes seamless linkage with all monitor modules and upper monitoring platforms.

Main Application Scenarios

1. Thermal Power Generation Industry

   Safety interlock relay output modules for steam turbine, gas turbine, generator rotor bearing vibration, thrust position, speed and temperature 3500 TSI machinery protection monitoring systems.

2. Oil & Natural Gas Industry

   Failsafe relay interlock units for offshore platforms, gas transmission stations, compressors, gas turbines and oil pipeline pump units rotating machinery protection systems.

3. Petrochemical & Chemical Industry

   Hazardous area safety relay output modules for centrifugal compressors, reciprocating compressors, large centrifugal pumps, fans and reaction kettle drive rotating equipment 3500 protection systems.

4. Heavy Metallurgy & Manufacturing Industry

   3500 system failsafe relay interlock modules for large rolling mill main shafts, high-speed centrifuges, heavy-duty industrial motors and generator unit safety protection.

5. Water Conservancy & Municipal Industry

   Safety alarm and interlock relay modules for large circulating water pumps, drainage pump stations and hydraulic turbine unit monitoring protection systems.

6. System Maintenance & Retrofit Projects

   Original spare replacement and upgrade of old legacy 3500/33 failsafe relay modules, realizing seamless continuation of original machinery safety interlock protection functions.
