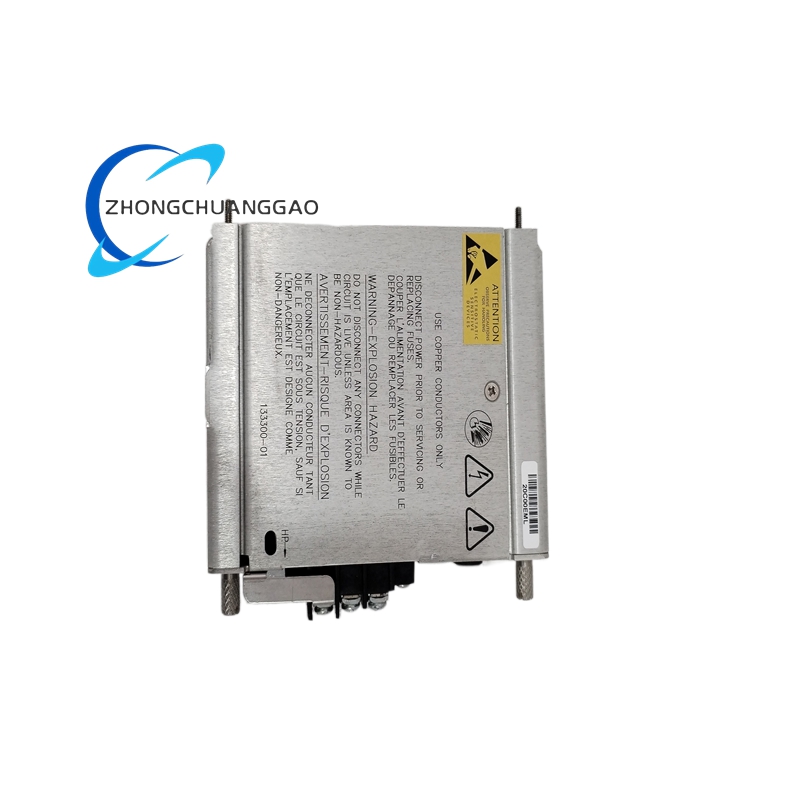

Bently Nevada 133300-01

Description

Basic Identification Parameters

• Brand: Bently Nevada
• Part Number: 133300-01
• System Matching Model: 3500/15 Low Voltage DC Power Supply System
• Product Type: Rack-Mounted DC Power Input Rear Termination Module
• Origin: United States
• Product Weight: 0.34 kg
• Factory Warranty Period: 12 months original factory warranty
• Overall Dimensions: 120.7 mm × 25.4 mm × 114.3 mm
• Mounting Mode: Standard 19-inch EIA industrial rack plug-in installation, installed in dedicated half-height power slots on the left rear side of 3500 system rack
• Protection Grade: IP20
• Certifications: CE, UL, CSA, ATEX/IECEx Hazardous Area Certification, API 670 Compliant

Electrical Specifications

• Rated Low Voltage DC Input Range: 20 V DC – 30 V DC
• Maximum Input Current: 5.2 A DC
• Matching Front Module Output: Regulated isolated 24 V DC system internal bus power
• Full Rack Maximum Output Current Support: 11.0 A DC
• Electrical Isolation Level: 2500 Vrms input-to-system isolation
• Built-in Protection Circuits: Reverse polarity protection, surge suppression protection, overcurrent limiting protection, transient voltage suppression
• Status Indication: Power input normal status indication linkage with front power module
• Terminal Connection: Green pluggable screw power terminals, reliable anti-loosening wiring design
• Internal Bus Connection: Standard gold-plated rear bus connector, stable contact with front power module

Environmental Specifications

• Operating Temperature Range: -40 ℃ to +65 ℃
• Storage Temperature Range: -40 ℃ to +85 ℃
• Operating Humidity: 0%–95% RH, non-condensing
• Shock Resistance: 10 g peak anti-vibration performance
• Electromagnetic Compatibility: Fully meets industrial EMC anti-interference standards, adapts to strong EMI industrial sites

Core Functional Features

1. Dedicated Low Voltage DC Input Adaptability

   Stable operation within standard 20–30 V DC industrial low-voltage DC power range, perfectly matches on-site industrial UPS and DC distribution systems.

2. Redundant Hot-Standby Power Architecture Support

   Supports dual primary/backup redundant power module installation; backup module automatically switches power supply when primary module fails. Power switching does not interrupt system monitoring operation.

3. Multi-Level Surge & Reverse Protection Circuits

   Built-in comprehensive protection circuits effectively prevent module and system damage caused by power reverse connection, lightning surge, grid transient fluctuation and overcurrent faults.

4. Rear Plug-in Hot-Swap Structure

   Supports online plug and replacement without powering down the entire monitoring system, greatly reduces maintenance downtime and operation interruption.

5. Integrated Wiring Terminal Design

   Adopts independent external pluggable power terminals, convenient for field cable connection, inspection and maintenance, and clearly separates power wiring from signal wiring.

6. High-Stability Isolated Input Circuit

   Isolated input topology completely eliminates ground loop interference and common-mode noise, ensures stable power input under complex industrial grounding conditions.

7. Perfect Matching with Front 3500/15 Power Module

   Original matching rear module, seamless electrical and mechanical connection with front power conversion module, no signal loss and no compatibility issues.

Applicable Application Scenarios

• Power generation industry: Steam turbines, gas turbines, turbo-generator units, combined cycle power plants
• Petroleum & petrochemical industry: Centrifugal compressors, process pumps, fans, offshore platform rotating machinery
• Chemical industry: Large high-speed compressors, reciprocating machinery, high-speed gearboxes
• Metallurgy, cement & mining industry: Rotary kilns, grinding mills, large fans, heavy rotating equipment
• Water conservancy & wastewater treatment: Large vertical pumps, circulating water pump units
• Marine industry: Ship propulsion machinery and auxiliary rotating power equipment
• Hazardous area industrial sites with ATEX/IECEx certification requirements
• OEM machinery manufacturing and industrial predictive maintenance condition monitoring systems

System Compatibility

• Fully compatible with Bently Nevada 3500/15 low voltage DC front power supply module
• Perfectly matches all 3500 series system racks, monitor modules, I/O modules, relay modules and interface modules
• Fully compatible with all modules you previously queried (97199-01, 126599-01, 128240-01, 14999-01)
• Seamlessly connects to System 1 diagnostic analysis platform, PLC, DCS and SCADA control systems
• Compatible with official 3500 rack configuration software V3.3 and above versions
