Product Short Description
This module converts external high-voltage DC input power into stable regulated 24 V DC internal bus power, supplying continuous and reliable power to all monitor modules, I/O modules, relay modules and interface modules inside the 3500 system rack. It supports primary/backup redundant hot-standby power configuration, integrates complete overvoltage, overcurrent, surge protection and self-diagnosis functions. It fully complies with API 670 international machinery protection standards, adopts standard half-height rack plug-in structure, industrial rugged hardware design and high-reliability isolated power circuit. It is the mandatory core power supply unit for safe and stable operation of the entire 3500 machinery protection system.
Description
Basic Identification Parameters
- Brand: Bently Nevada

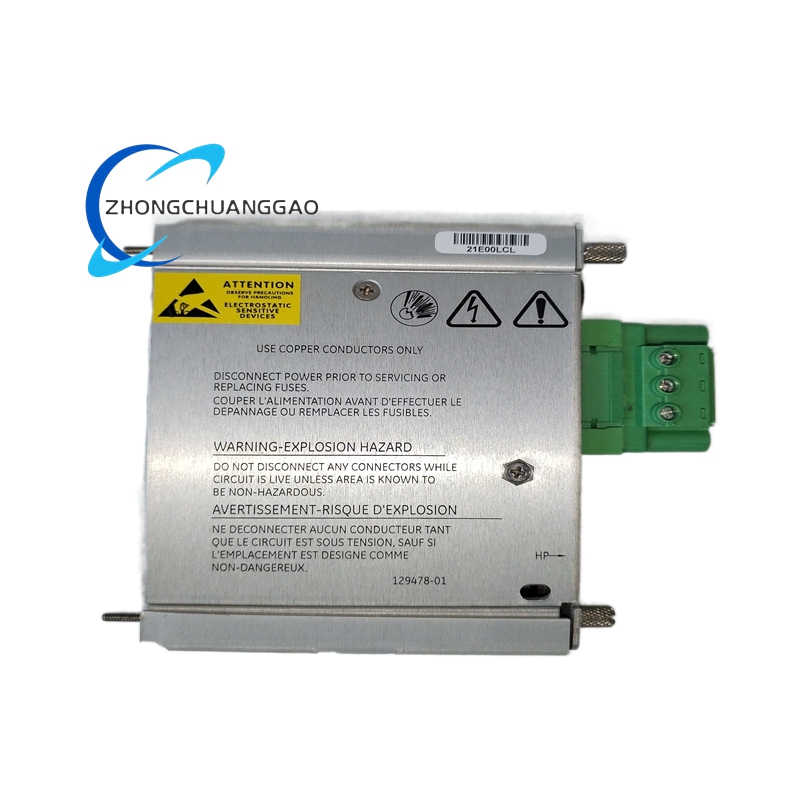

- Part Number: 129478-01
- System Matching Model: 3500/15 High Voltage DC Power Module
- Product Type: Rack-Mounted DC Power Input & Conversion Module
- Origin: United States
- Product Weight: 0.34 kg
- Factory Warranty Period: 12 months original factory warranty
- Overall Dimensions: 120.7 mm × 25.4 mm × 114.3 mm
- Mounting Mode: Standard 19-inch EIA industrial rack plug-in installation, installed in dedicated power slots on the left side of 3500 system rack
- Protection Grade: IP20
- Certifications: CE, UL, CSA, ATEX/IECEx Hazardous Area Certification, API 670 Compliant
Electrical Specifications
- Rated High Voltage DC Input Range: 88 V DC – 140 V DC
- Maximum Input Current: 2.5 A DC
- Output Power Supply: Regulated isolated 24 V DC system internal bus power
- Maximum Output Current for Full Rack Supply: 11.0 A DC
- Total Power Consumption: 4.75 W typical
- Electrical Isolation Level: 2500 Vrms input-to-output isolation
- Built-in Protection Circuits: Overvoltage protection, overcurrent protection, reverse polarity protection, surge suppression protection
- Status Indication: Independent HV OK (High Voltage Normal) indicator light and Fault alarm indicator light
- Terminal Connection: Green pluggable screw power terminals
Environmental Specifications
- Operating Temperature Range: -40 ℃ to +70 ℃
- Storage Temperature Range: -51 ℃ to +85 ℃
- Operating Humidity: 0%–95% RH, non-condensing
- Shock Resistance: 10 g peak anti-vibration performance
- Electromagnetic Compatibility: Fully meets industrial EMC anti-interference standards, adapts to strong EMI industrial sites
Core Functional Features
- High Voltage DC Wide Input Adaptability
Stable operation within 88–140 V DC wide high-voltage DC input range, perfectly matches industrial high-voltage DC power distribution systems on site.
- Redundant Hot-Standby Power Architecture
Supports dual-module primary/backup redundant installation; backup module automatically switches to supply power when primary module fails. Power supply switching does not interrupt system operation.
- Complete Multi-Level Protection Circuits
Built-in reverse polarity, overvoltage, overcurrent, surge and short-circuit protection, effectively prevents damage to system modules caused by abnormal power grid fluctuations.
- Plug-in Hot-Swap Design
Supports online plug and replacement without powering down the entire monitoring system, greatly reduces maintenance downtime and operation interruption.
- Real-Time Power Status Monitoring & Diagnosis
Equipped with HV OK and Fault indicator lights; automatically uploads power abnormal status to system host and upper computer platform in real time.
- High-Stability Isolated Power Conversion
Adopts high-efficiency isolated switching power supply topology, low ripple output, strong anti-interference performance, ensures stable power supply for precision monitoring modules under harsh conditions.
- Standard Half-Height Rack Structure
Compact half-height module design, saves rack space, fully compatible with all standard 3500 system racks.
Applicable Application Scenarios
- Power generation industry: Steam turbines, gas turbines, turbo-generator units, combined cycle power plants
- Petroleum & petrochemical industry: Centrifugal compressors, process pumps, fans, offshore platform rotating machinery
- Chemical industry: Large high-speed compressors, reciprocating machinery, high-speed gearboxes
- Metallurgy, cement & mining industry: Rotary kilns, grinding mills, large fans, heavy rotating equipment
- Water conservancy & wastewater treatment: Large vertical pumps, circulating water pump units
- Marine industry: Ship propulsion machinery and auxiliary rotating power equipment
- Hazardous area industrial sites with ATEX/IECEx certification requirements
- OEM machinery manufacturing and industrial predictive maintenance condition monitoring systems
System Compatibility
- Fully compatible with all Bently Nevada 3500 series system racks, monitor modules, I/O modules, relay modules and interface modules
- Perfectly matches all 3500 series signal acquisition modules you previously queried (97199-01, 126599-01, 128240-01, 14999-01)
- Seamlessly connects to System 1 diagnostic analysis platform, PLC, DCS and SCADA control systems
- Compatible with official 3500 rack configuration software V3.3 and above versions
