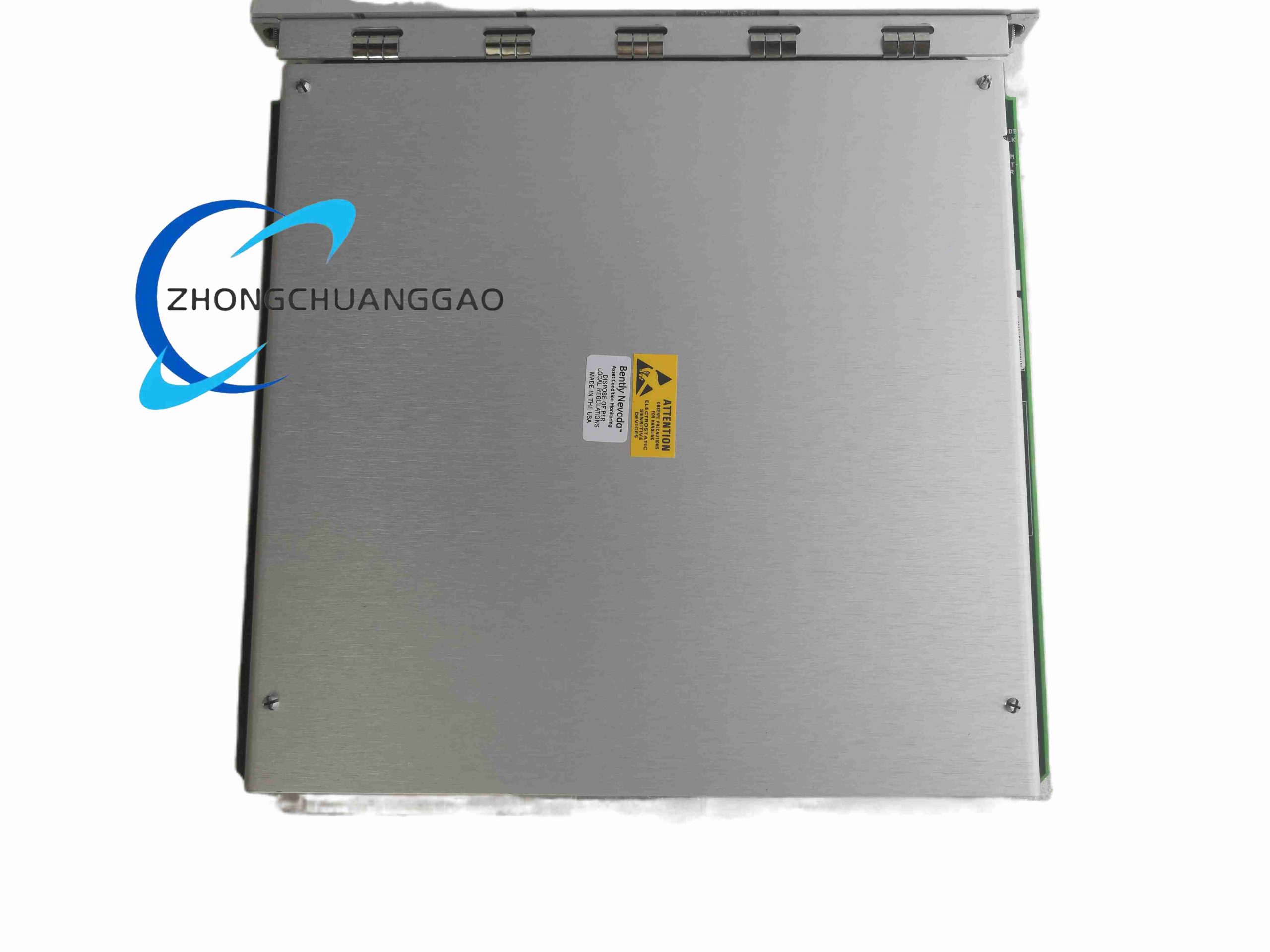

The 3500/62-04-00 is a six-channel process variable monitor module from Bently Nevada’s 3500 series. It is designed to continuously monitor critical industrial process parameters such as pressure, flow, temperature, and liquid level by interfacing standard 4-20 mA or proportional voltage transmitters to the 3500 rack alarm and logic network. The “-04” suffix defines an isolated 4-20 mA I/O module with external terminations.
Description
Technical Specifications
- Channels: 6 independent monitoring channels
- Input Signal: 4-20 mA DC (isolated) or -10 to +10 V DC proportional voltage
- Input Impedance: 50 Ω (current mode), 1 MΩ (voltage mode)
- A/D Conversion: 24-bit
- Accuracy: ±0.33% typical of full scale, ±1% maximum
- Alarm Setpoints: Dual per channel (Alert and Danger), user-programmable, with configurable delay 0.1-60 s
- Recorder Outputs: 4-20 mA or 0-10 V DC per channel
- Dimensions: 241.3 × 24.4 × 241.8 mm
- Weight: 0.82 kg
- Operating Temperature: -30 °C to +65 °C
Functional Features
- Bridges field transmitters and 3500 rack protection logic
- User-programmable full-scale range and engineering units via 3500 Rack Configuration Software
- Supports under-alarm and over-alarm setpoints
- Hot-swappable within the 3500 rack
- Compatible with Triple Modular Redundant (TMR) voting configurations
- External termination I/O module for easier field-wiring maintenance
Application Scenarios
Compressor trains, steam and gas turbines, pumps, fans, and rotating equipment in oil and gas, petrochemical, power generation, and heavy industrial plants where continuous machinery health surveillance is required.
Structural Characteristics
Standard 3500 full-height single-slot module with front-panel status LEDs (OK, TX/RX, Bypass). Field wiring connects to a separate external termination block, not directly to the rack rear.
Working Principle
Each channel conditions the incoming 4-20 mA or voltage signal, converts it via 24-bit ADC, scales it to engineering units in software, and compares the result against Alert/Danger setpoints. Exceedance drives relay logic through the 3500 rack; scaled values are also echoed to analog recorder outputs for DCS/PLC trending.
Installation Requirements
Install in any available monitor slot of a powered 3500 rack. Connect transmitter loops to the external I/O termination block. Configure channels, ranges, and alarms with Bently Nevada 3500 Configuration Software before placing in service.
Usage Precautions
Do not mix I/O module types without reconfiguring the rack. Verify lithium backup and external termination wiring polarity before energizing. Avoid removing the module under load unless the rack supports verified hot-swap. Re-check alarm setpoints after any firmware or configuration download.
