Beijer 04380A

Product Short Description

Product Introduction

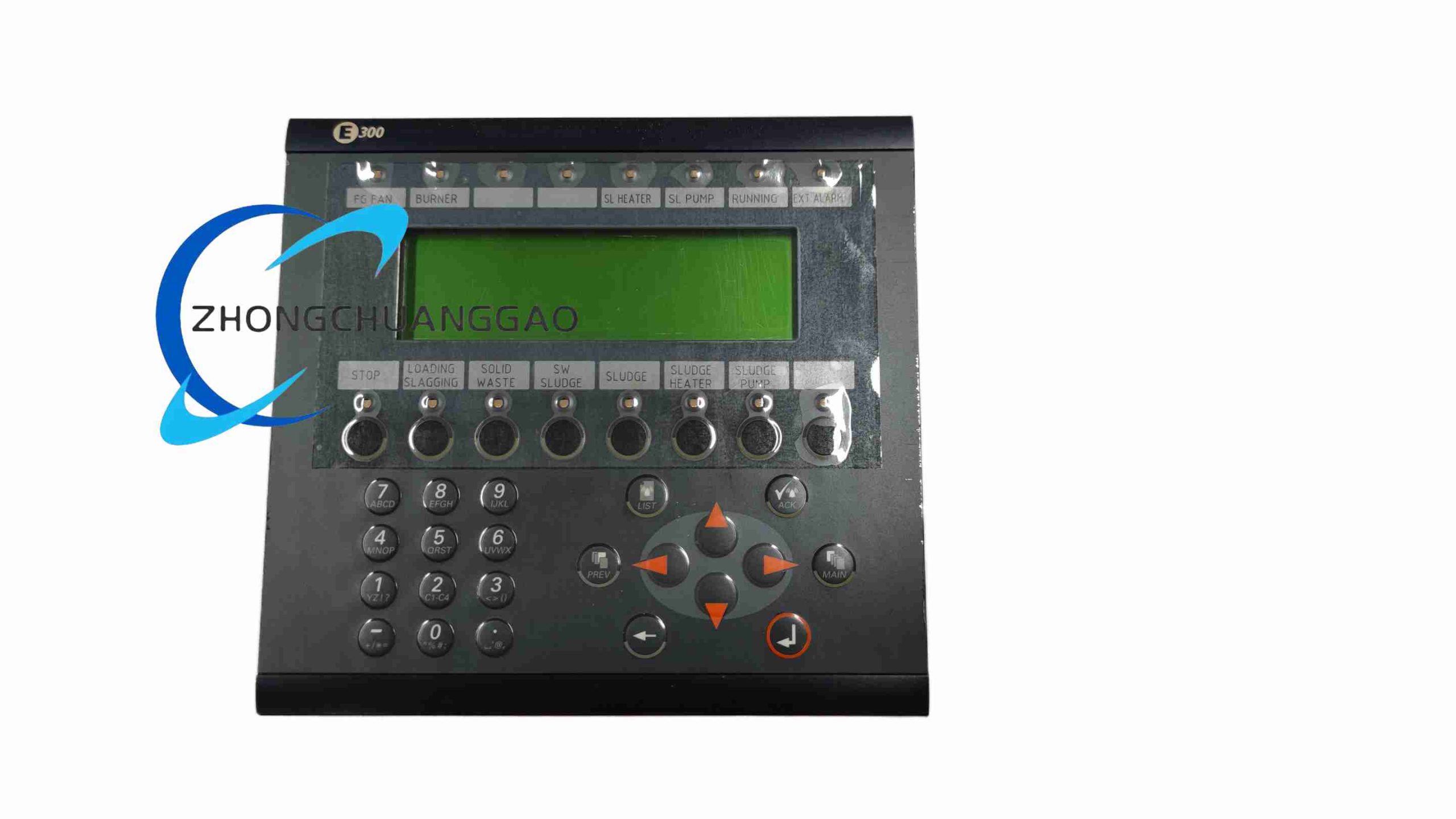

The Beijer 04380A is a dedicated industrial Human-Machine Interface (HMI) operator terminal belonging to Beijer’s E300 series. It is developed to provide intuitive and reliable interaction between on-site industrial equipment and operators, enabling convenient monitoring of equipment operating status and simple control operations. The terminal is powered by 24 VDC and is compatible with a voltage fluctuation range of 20–30 VDC, adapting well to the unstable power-supply environment typical of industrial sites. It meets Class I, Division 2, Groups A–D, T4 hazardous location standards, making it applicable to harsh industrial environments such as marine equipment and chemical plants .

Description
Reviews (0)

Description

Technical Specifications

Display

Display Type: Backlit monochrome LCD (Supertwist STN)
Resolution: 240 × 64 pixels
Text Capacity: 4 lines × 20 characters (configurable up to 8 × 40 characters with scrolling / variable font)
Display Area: 127.2 × 33.9 mm

Electrical Parameters

Power Supply: 24 VDC (operating range 20–30 VDC), Class 2 power supply
Power Consumption: 350 mA typical, up to 450 mA maximum depending on working conditions
Real-Time Clock: Integrated

Memory

Base Memory: 400 KB Flash-RAM
Expandable Memory: Up to 4–8 MB via PCMCIA expansion card (MAC-IFC-MC option)

Functional Components

Function Keys: 8 user-assignable function keys (with legend strips) + 12-key numeric keypad on 04380A variant
LED Indicators: 16 dual-color (Red/Green) LEDs for status annunciation
Keypad Life: > 1 million actuations

Communication Interfaces

1 × RS-232C (D-Sub 9)
1 × RS-422 (for Mitsubishi FX/Q or other PLCs)
1 expansion slot available for optional communication cards: Profibus-DP, DeviceNet, Ethernet, CC-Link

Software & Processing Capabilities

Embedded processor running Beijer firmware
Supports alarm list management (up to several hundred alarms with time stamping)
Recipe storage and handling supported via internal memory or PCMCIA card
Data logging to memory
Multi-language text support
Customizable soft-key mapping

Performance Parameters

Operating Temperature: 0 °C to +50 °C
Storage Temperature: -20 °C to +60 °C (some sources state up to +70 °C)
Humidity: 10 % – 90 % RH, non-condensing
Hazardous Location Rating: Class I, Div 2, Groups A–D, T4
Weight: Approx. 1.35 – 1.5 kg
Dimensions (H × W × D): Approx. 198 mm × 212 mm × 69 mm
Panel Cutout Dimensions: Approx. 184 mm × 198 mm (verify against official Beijer mounting drawing)
Front Face Protection: IP65 / NEMA 4 (when properly gasketed)
Rear Housing Protection: IP20 (control-cabinet side)

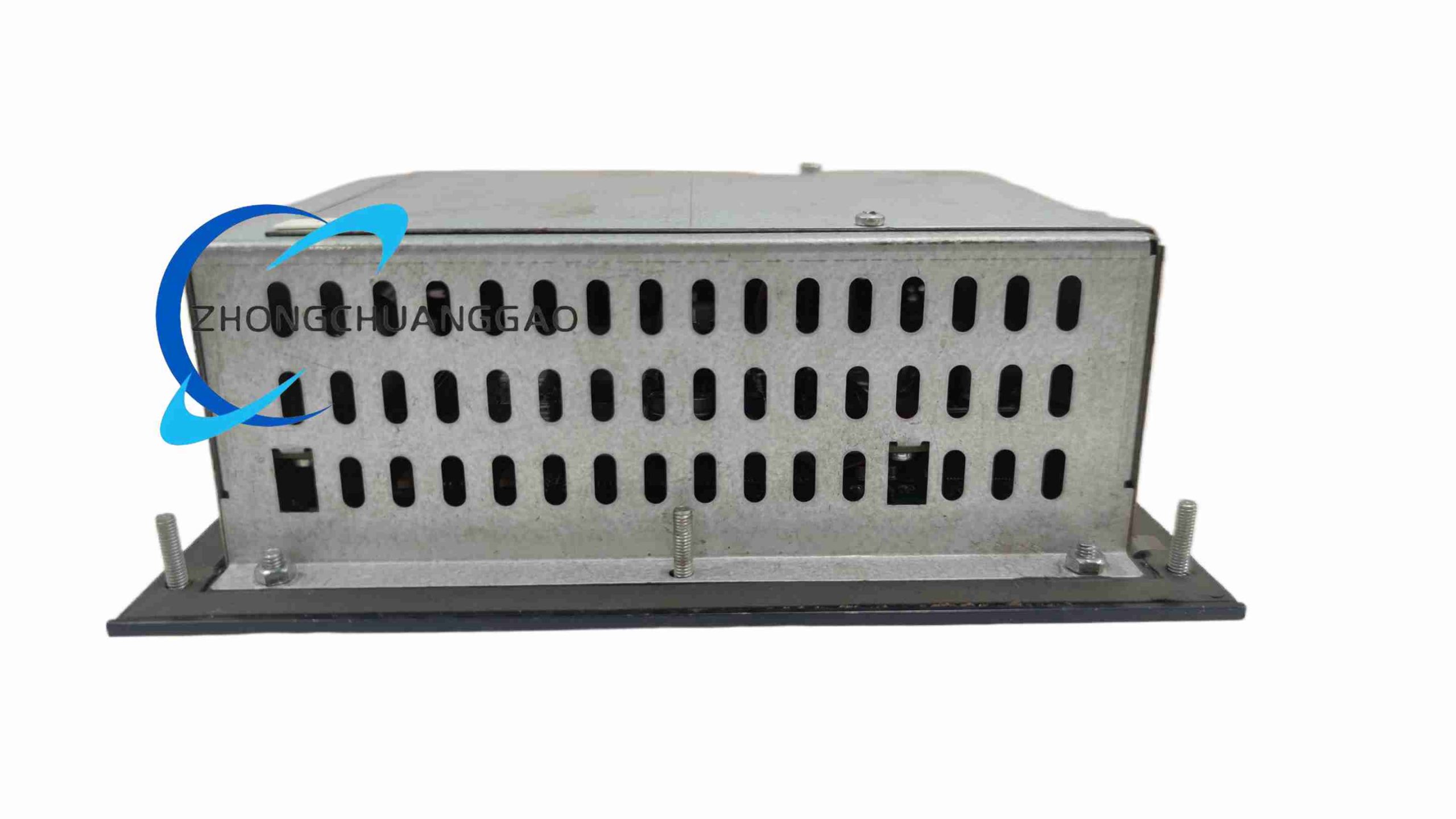

Material Composition & Structural Features

Front Bezel: ABS plastic, UV-stabilized, typically black or dark gray
Front Gasket: Neoprene, providing IP65 sealing
Rear Housing: Sheet metal or ABS plastic
PCB: Industrial-grade with protective coating
Mounting: Panel-mount cutout design with screw-terminal connections and compact depth behind the panel
Certification: CE marked
Origin: Manufactured in Sweden (some distributors list as USA origin)

Working Principle

The embedded processor runs Beijer firmware that polls field devices via serial protocols (such as Modbus RTU). It renders equipment status on the LCD display and transmits operator key-press commands back to the PLC, all as defined in the project configuration downloaded via PC software. Communication with mainstream industrial controllers such as PLCs is realized through RS232C/RS422 interfaces, enabling efficient data transmission and real-time synchronization between equipment operation data and operator instructions .

Functional Characteristics

Customizable function-key mapping to match different industrial control logic
Alarm list management with time stamping
Recipe handling and data logging to memory
Multi-language text support for global deployments
Stable data interaction for real-time synchronization of equipment operation data and operator instructions
Expansion capability via PCMCIA card slot to meet personalized functional expansion needs (e.g., Profibus-DP, DeviceNet, Ethernet, CC-Link)

Application Scenarios

Widely used in equipment control and production process monitoring across:

Manufacturing – OEM machinery, machine control
Marine Engineering – Marine propulsion controls
Petrochemical Industry – Chemical processing skids
Water Treatment – SCADA local panels
Food Processing (dry areas)
Process Control & Automation Production Lines
Logistics Equipment

Its Class I Div 2 certification makes it specifically suited for harsh industrial environments including marine and chemical hazardous areas .

Installation Requirements

Mounting Method: Panel cutout mount using clamping brackets from the rear
Cutout Dimensions: Approx. 184 mm × 198 mm (confirm with official datasheet)
Clamp Torque: 0.5 – 0.8 Nm (0.5 Nm typical)
Gasket: Must use the supplied gasket to achieve IP65 front-face rating
Power Supply: Isolated 24 VDC Class 2 power supply required
Cabling: RS232/RS422 shielding must be grounded at one end
Environment: Rear electronics must NOT be exposed to washdown (IP20 rear only)

Usage Precautions

Supply Isolation: The 24 VDC supply must be isolated and comply with Class 2 requirements
Rear Protection: Do not expose rear electronics to washdown; the rear is only IP20 rated
Memory Backup: Periodically back up project memory to prevent data loss
ESD Protection: Avoid static discharge when handling expansion cards
Operating Conditions: Maintain within 0 °C to +50 °C and 10–90 % RH non-condensing
Hazardous Locations: Only install in Class I, Div 2, Groups A–D, T4 certified environments as rated
Torque Limit: Tighten mounting clamps to specified torque (0.5–0.8 Nm) — do not overtighten

Quality & Warranty

Brand: Beijer Electronics
Series: E300 Series
Country of Manufacture: Sweden (distributor listings may vary)
Warranty: Commercial warranty services vary by supplier (typically 1- to 2-year warranty or 30-day satisfaction guarantee)
Product Lifecycle: Long product lifecycle support
