Product Short Description

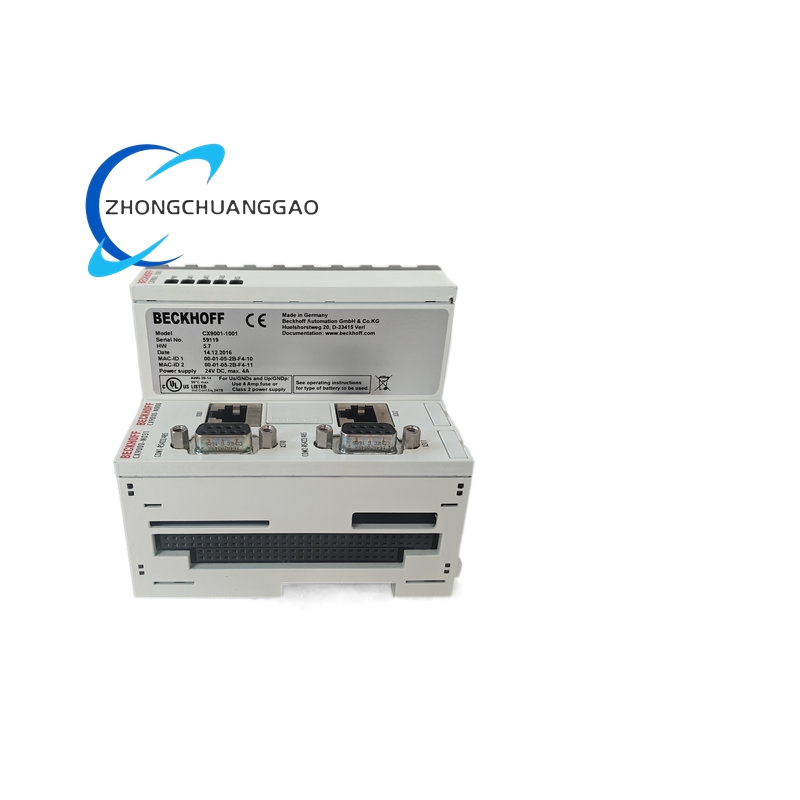

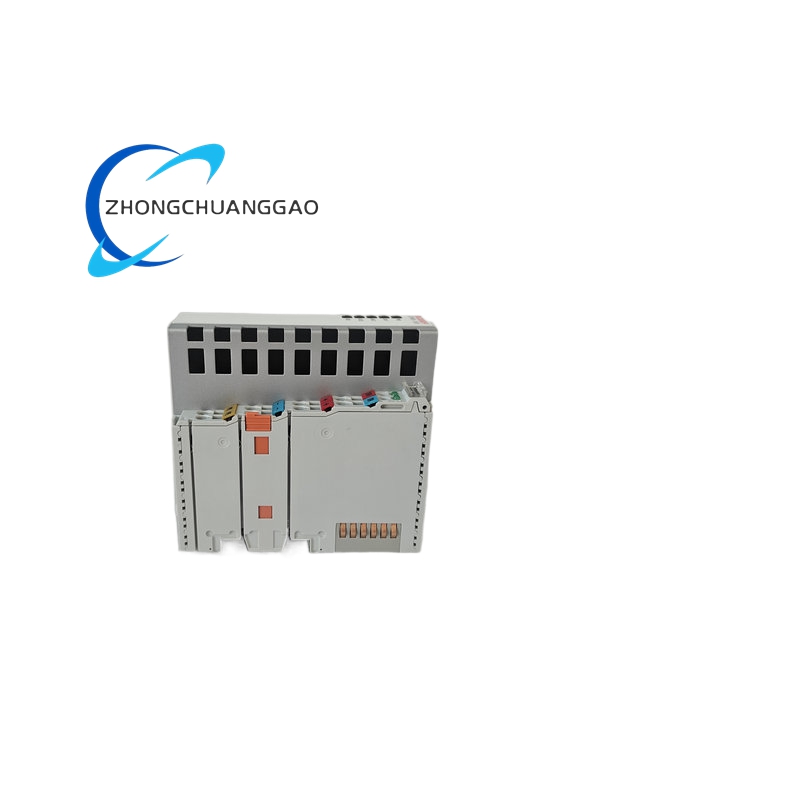

Product Introduction: The CX9001-1001 is a compact, DIN rail-mountable Ethernet controller from Beckhoff Automation, belonging to the CX series. It features an Intel® IXP420 processor based on the XScale® architecture at 266 MHz clock frequency. The module is designed for industrial automation applications including real-time control, data acquisition, and HMI (Human-Machine Interface) functions.
Description
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | CX9001-1001 |
| Manufacturer | Beckhoff Automation |
| Product Type | Embedded PC / Ethernet Controller |
| Processor | Intel® IXP420 (XScale® architecture) |
| Clock Frequency | 266 MHz |
| Memory | Configurable (e.g., 64MB, 128MB) |
| Operating System | Microsoft Windows CE |
| Control Software | TwinCAT automation software |
| Interfaces | Ethernet, CANopen, Digital I/O |
| Mounting Style | DIN rail mountable |
| Dimensions | 100 x 60 x 90 mm (Length x Width x Height) |
| Weight | 0.30 kg (item weight) |
| Shipping Weight | 1.00 kg |
| Operating Temperature | -25°C to +60°C |
| Customs Tariff Number | 84715000 |
Functional Features:
-
Real-time control: Executes high-speed control tasks for precise motion and process control
-
Data acquisition: Collects data from sensors and field devices through various interfaces
-
Data processing: Processes collected data and generates control instructions based on control algorithms
-
HMI functionality: Optional touchscreen display for human-machine interaction
-
Network communication: Supports multiple industrial network protocols
-
TwinCAT integration: Transforms the system into a powerful PLC and Motion Control system
-
Direct integration of Beckhoff I/O system interface in the CPU module
Performance Parameters:
-
266 MHz Intel® IXP420 processor
-
Real-time control capability via TwinCAT software
-
DIN rail mountable compact design
Material Composition: Industrial-grade electronic components
Structural Features:
-
Compact design suitable for space-constrained applications
-
DIN rail mounting for easy installation
-
Lightweight construction at 0.30 kg
-
Direct I/O system interface integration
Working Principle: The CX9001-1001 functions as an embedded PC controller, running Microsoft Windows CE with TwinCAT automation software. TwinCAT transforms the system into a PLC and Motion Control platform. The module processes control algorithms, interfaces with Beckhoff I/O systems directly through the integrated CPU interface, and communicates with other devices via Ethernet and other network protocols.
Advantages and Strengths:
-
Compact form factor for space-constrained applications
-
High-performance Intel XScale processor
-
TwinCAT software integration for powerful PLC and motion control
-
Direct I/O system interface eliminates additional hardware
-
Versatile communication interfaces
-
Suitable for real-time control, data acquisition, and HMI applications
Applicable Industries:
-
Machine automation: Robot control, packaging machinery control
-
Process control: Chemical, pharmaceutical process control
-
Motion control: High-precision motion control
-
Data acquisition: Industrial data acquisition systems
Model Series: Beckhoff CX Series (CX9000 Series)
Installation Requirements:
-
DIN rail mounting or embedded installation
-
Must be used with Beckhoff TwinCAT automation software
-
Requires professional installation and programming expertise
Usage Precautions:
-
Professional installation and programming require specialized knowledge and experience
-
Must be used with Beckhoff TwinCAT automation software
-
Strict adherence to safety regulations during operation and maintenance
-
Product specifications may vary by configuration; refer to specific technical documentation
