Bachmann IPC1412

Core Function Features

1. Integrated 12-inch industrial resistive touch screen with high-brightness LCD, readable under strong outdoor sunlight
2. Industrial low-power x86 embedded processor with hardware watchdog timer automatic system reset
3. Standard configuration: 1GB DDR industrial memory, 8GB CFast solid-state storage for program and historical data storage
4. Rich multi-type communication interfaces: dual Ethernet 1Gbps, RS232, RS485, USB 2.0, CANbus wind turbine internal control bus
5. Support multiple industrial communication protocols: Modbus RTU/TCP, Profibus DP, CANopen, OPC UA wind farm remote monitoring protocol
6. Built-in real-time clock (RTC) with backup lithium battery for timestamping all fault and operation data
7. Full aluminum alloy heat dissipation structure without fan, eliminate fan failure risk in wind tower dusty environment
8. Password multi-level authority management for wind turbine operation parameter modification
9. Offline historical data storage, support USB disk local data export for post-fault analysis

Technical Performance Parameters

• Processor: Low-power industrial Intel Atom embedded CPU
• Memory: 1GB DDR3 industrial anti-shock memory
• Storage: 8GB CFast solid-state memory card, shock-resistant no mechanical moving parts
• Display: 12-inch resistive touch LCD, resolution 1024×768, industrial high brightness 800cd/m²
• Power Supply: 24VDC industrial power input, total power consumption 60W
• Communication Interfaces: 2×10/100/1000Mbps Ethernet, 2×RS485, 1×RS232, 4×USB2.0, 1×CANbus
• Operating System: Windows XP Embedded customized industrial version
• Operating Temperature: -20°C ~ +50°C (wind tower cabin environment)
• Storage Temperature: -40°C ~ +70°C
• Anti-Vibration Standard: IEC60068-2-6 wind power industry vibration test

Material & Structural Characteristics

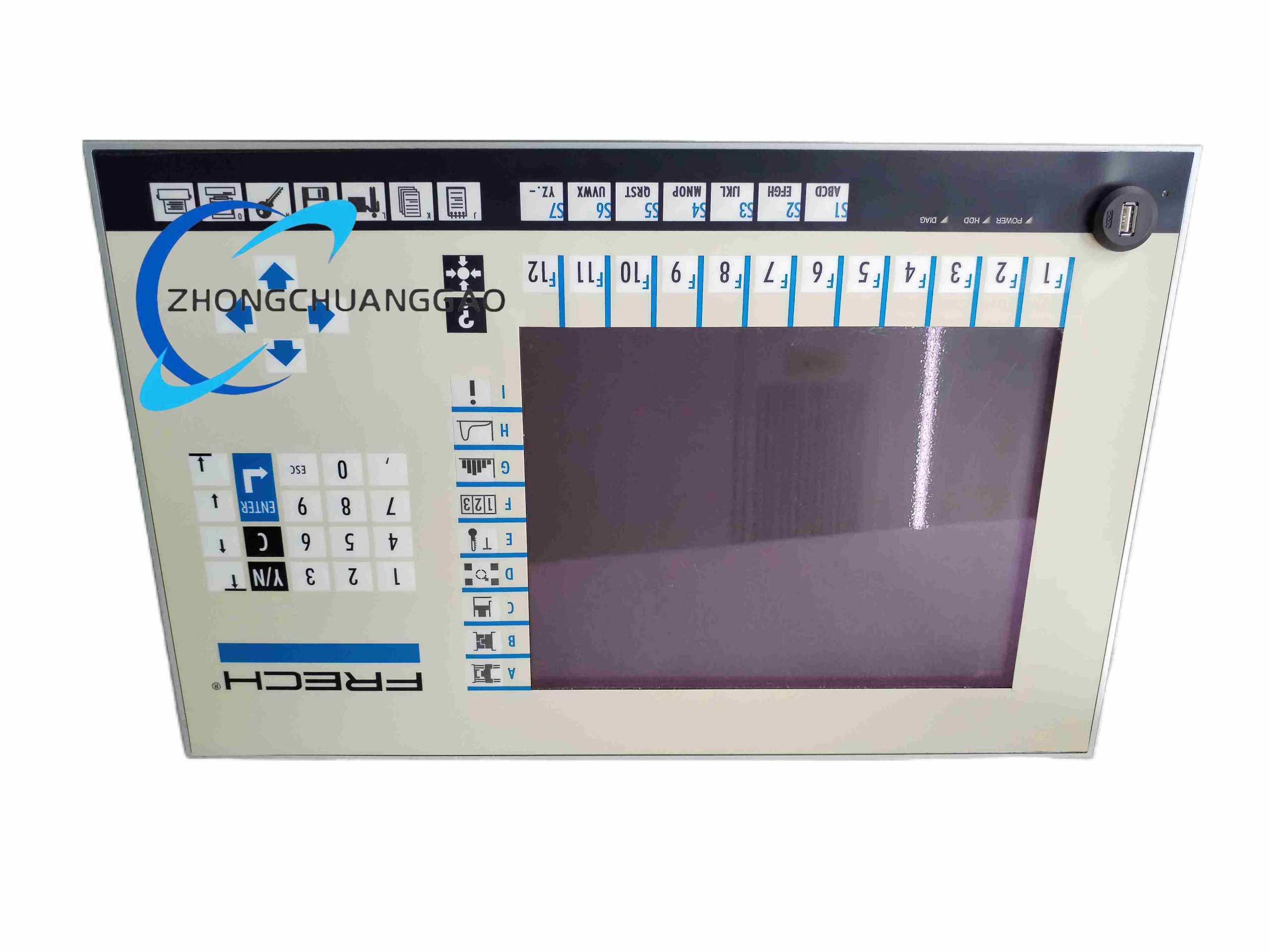

• Front Panel: Die-cast aluminum alloy, IP65 dust and water protection, chemical corrosion resistant coating

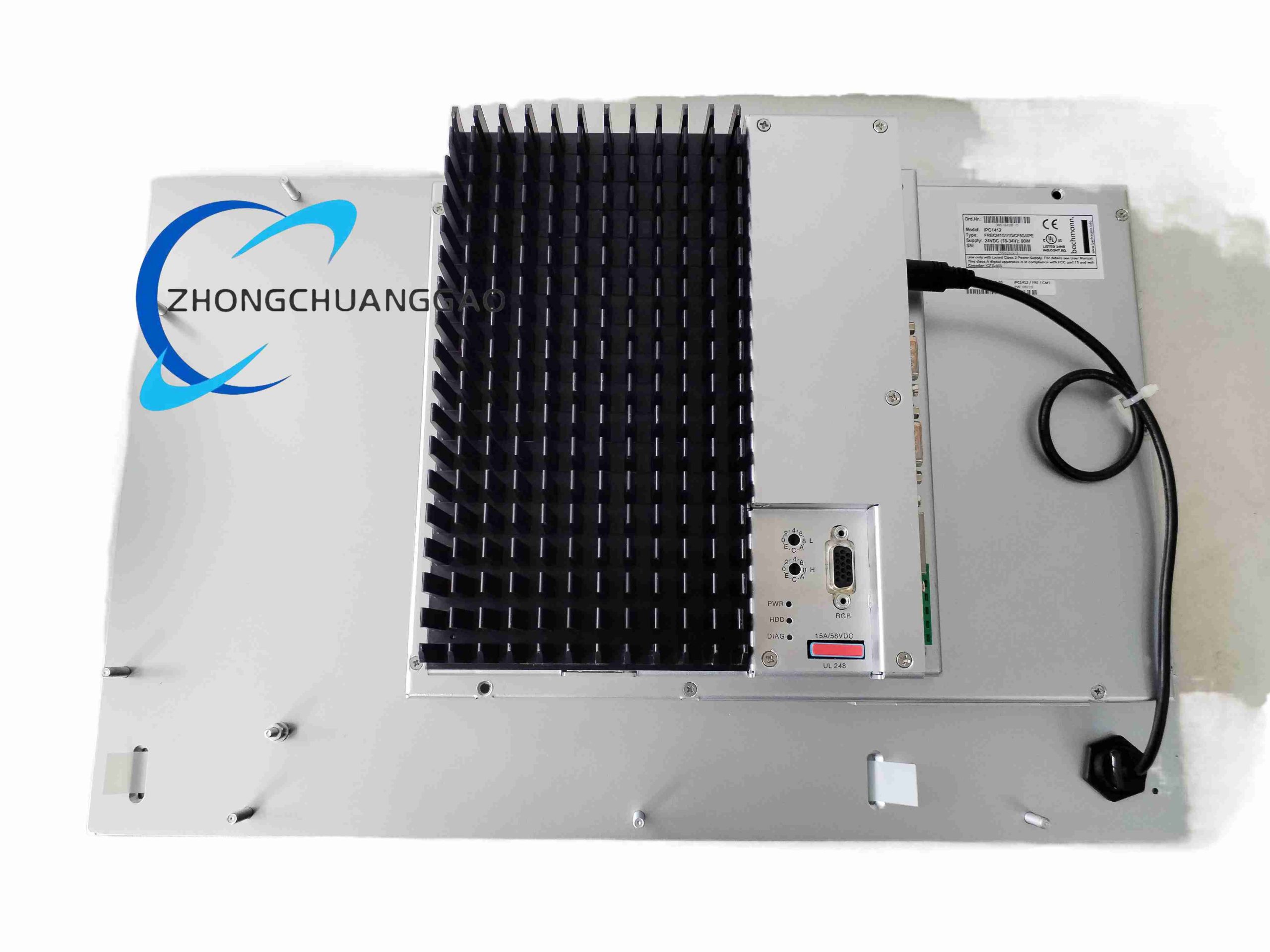

• Rear Heat Dissipation Chassis: Integral aluminum fin heat sink fanless passive cooling design
• Internal Components: All electronic parts fixed with anti-vibration shock absorption silicone cushion
• Mounting Mode: Cabinet embedded panel mounting with locking sealing frame
• Overall Dimensions: 380mm × 290mm × 75mm
• Net Weight: 3.2kg

Working Principle

1. Communicate with Bachmann wind turbine main PLC controller via CANbus and Ethernet to acquire real-time unit operation parameters, vibration, wind speed, generator power and fault signals
2. Touch screen provides local operator human-machine interface for unit startup/shutdown, parameter adjustment, real-time data browsing and fault history query
3. CPU stores all operation data and fault records to 8GB CFast storage with RTC accurate time stamp
4. Upload wind farm operation data to remote central monitoring room through Ethernet Modbus TCP or OPC UA protocol
5. Hardware watchdog continuously monitors system operating state; automatically restart panel PC when system program crash occurs

Installation Requirements

1. Embedded installation inside wind turbine tower control cabinet, front panel fully sealed to prevent dust and moisture intrusion
2. Cabinet must install heating and dehumidification equipment to avoid condensation in low-temperature winter environment
3. Route communication cables with shielding, single-point grounding at cabinet earth bar
4. Maintain ventilation gap behind panel heat sink, do not block heat dissipation fins
5. Equip 24VDC power input with surge protection against lightning induced transient voltage in wind farm

Application Scenarios

• On-site human-machine control panel for onshore and offshore wind turbine generator units
• Wind farm local cabinet data recording and fault storage terminal
• Distributed industrial automation local monitoring HMI in hydropower and thermal power plants
• Offshore platform auxiliary equipment operation monitoring touch panel PC

Usage & Maintenance Notes

1. Do not disassemble front panel sealing frame at will, dust and salt mist entering will damage touch screen and internal circuits
2. Replace internal RTC backup lithium battery every 3 years to avoid historical data timestamp loss
3. Clean touch screen surface with soft microfiber cloth; do not use corrosive chemical cleaning agents
4. Regularly export historical fault data to USB storage disk for periodic data backup
5. Avoid installing near converter cabinets which generate strong electromagnetic interference; add signal isolation module if communication error occurs
