Product Short Description

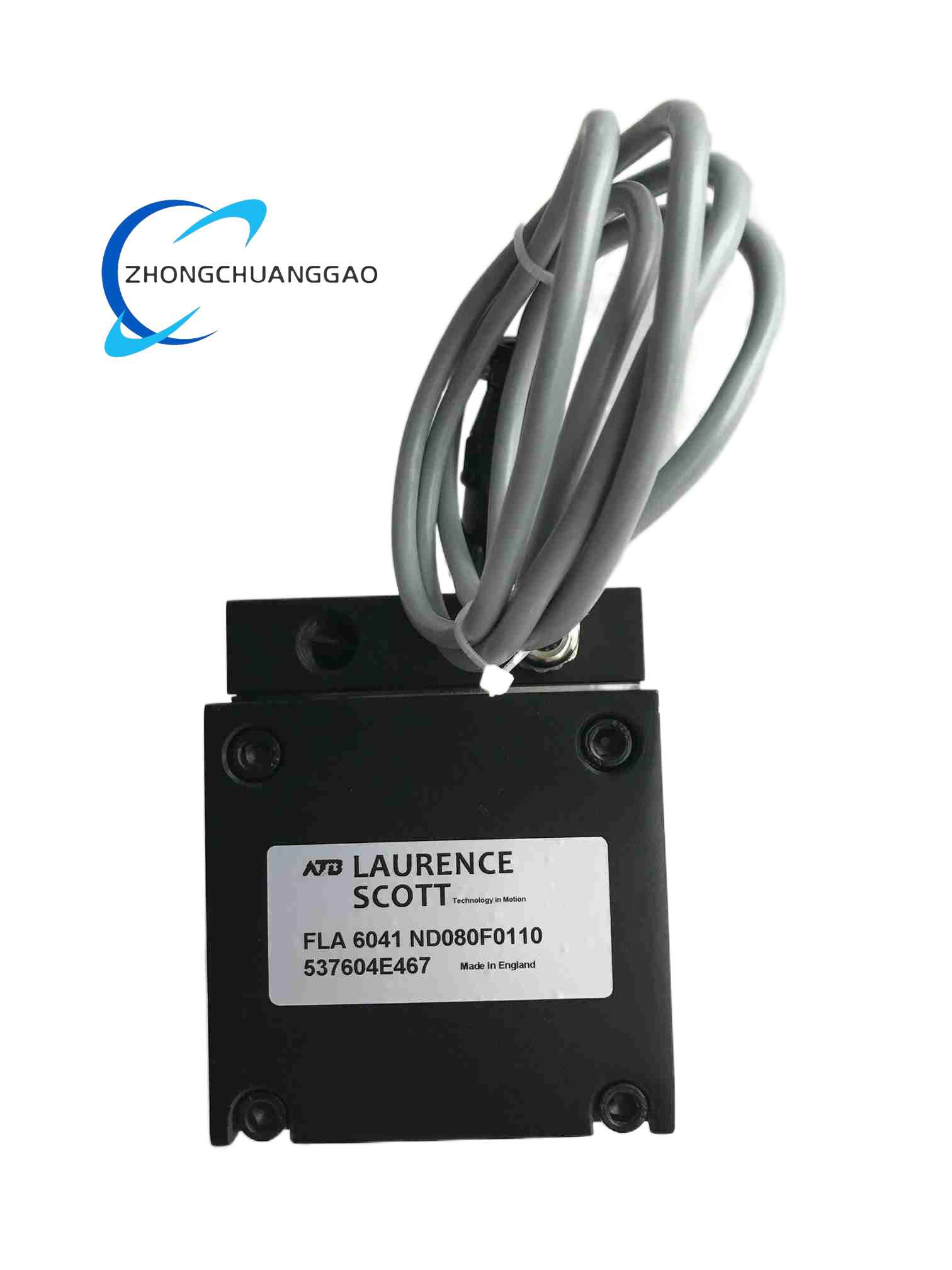

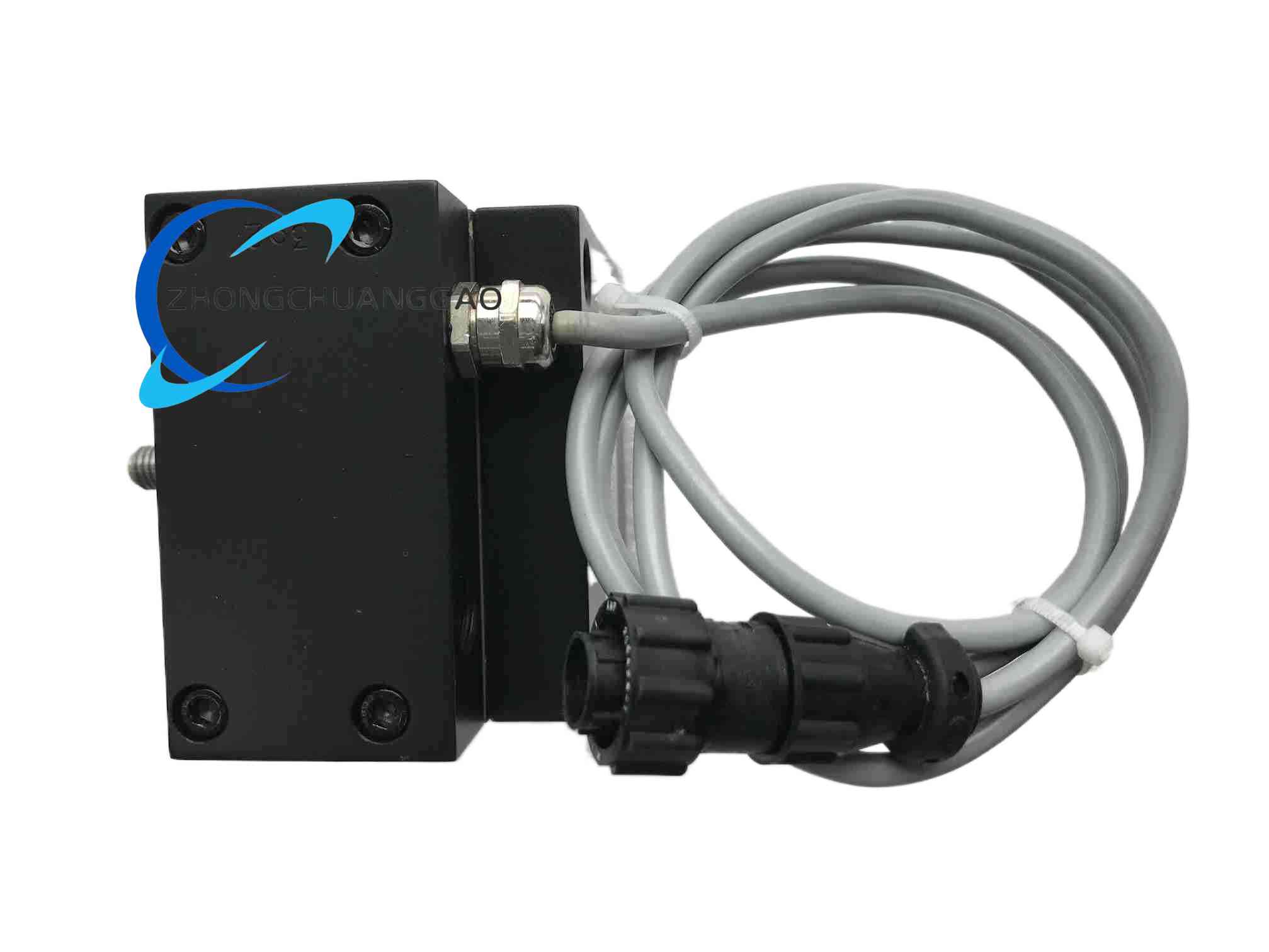

Product Name: ATB Laurence Scott FLA6041-ND080F0110 Fast Linear Actuator
Product Introduction: The FLA6041-ND080F0110 is a fast linear actuator from ATB Laurence Scott’s Precision Step Systems (PSS) range, built on a diaphragm-type actuation principle. It is designed for applications requiring very fast linear motion or a high cycling rate. When paired with ATB Laurence Scott’s SRB series control electronics, it delivers precise position control and repeatability. The 4 mm stroke makes it particularly suited for precise positioning, rapid clamping, and light material sorting.
Description
Technical Specifications:
- Product type: Fast linear actuator (diaphragm type, FLA 6041 series)
- Stroke: 4 mm
- Drive: Pneumatic (compressed air) or vacuum
- Maximum operating pressure: 1 bar (compressed air) / 0.7 bar (vacuum)
- Maximum holding force (1 bar air): 250 N
- Maximum holding force (0.7 bar vacuum): 200 N
- Response time: 7 ms
- Repeatability: ±0.5 ms (timing), ±0.01 mm (positional per extended spec)
- Air consumption per cycle (1 bar air): 61 × 10⁻⁶ Nm³
- Air consumption per cycle (0.7 bar vacuum): 32 × 10⁻⁶ Nm³
- Operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +70°C
- Protection rating: IP66 (compressed air), IP54 (vacuum)
- Weight: approx. 1.6 kg
- Material: Stainless steel housing (SUS304) + aluminum alloy guide (per extended spec)
- Control interface: Analog input (0–10 V) + digital signal (PNP/NPN compatible)
- Communication: Supports Modbus RTU, Profinet (with extension module)
Functional Features:
- Ultra-fast 7 ms response time for high-frequency cycling
- Diaphragm-based actuation for smooth, precise linear motion
- Pneumatic or vacuum operation flexibility
- High repeatability for precision automation tasks
- Rugged IP66 enclosure for industrial environments
- Integration with SRB control electronics for closed-loop positioning
Application Scenarios: Automotive transmission assembly lines (gear pressing), precision clamping, light material sorting, cutting, high-speed pick-and-place, and automated production lines requiring millisecond-level actuation.
Installation Requirements: Flange mounting using M4 threaded holes. Connect to a clean, regulated compressed air supply at 1 bar (or vacuum at 0.7 bar). Integrate with SRB control electronics for position feedback and control. Ensure the operating temperature stays within 0–40°C.
Usage Precautions: Do not exceed the maximum operating pressure of 1 bar (air) or 0.7 bar (vacuum). The 7 ms response time demands clean, dry, and regulated air supply to maintain repeatability. Protect the actuator from ambient temperatures outside the 0–40°C operating range. When used in vacuum mode, the protection rating drops to IP54.
