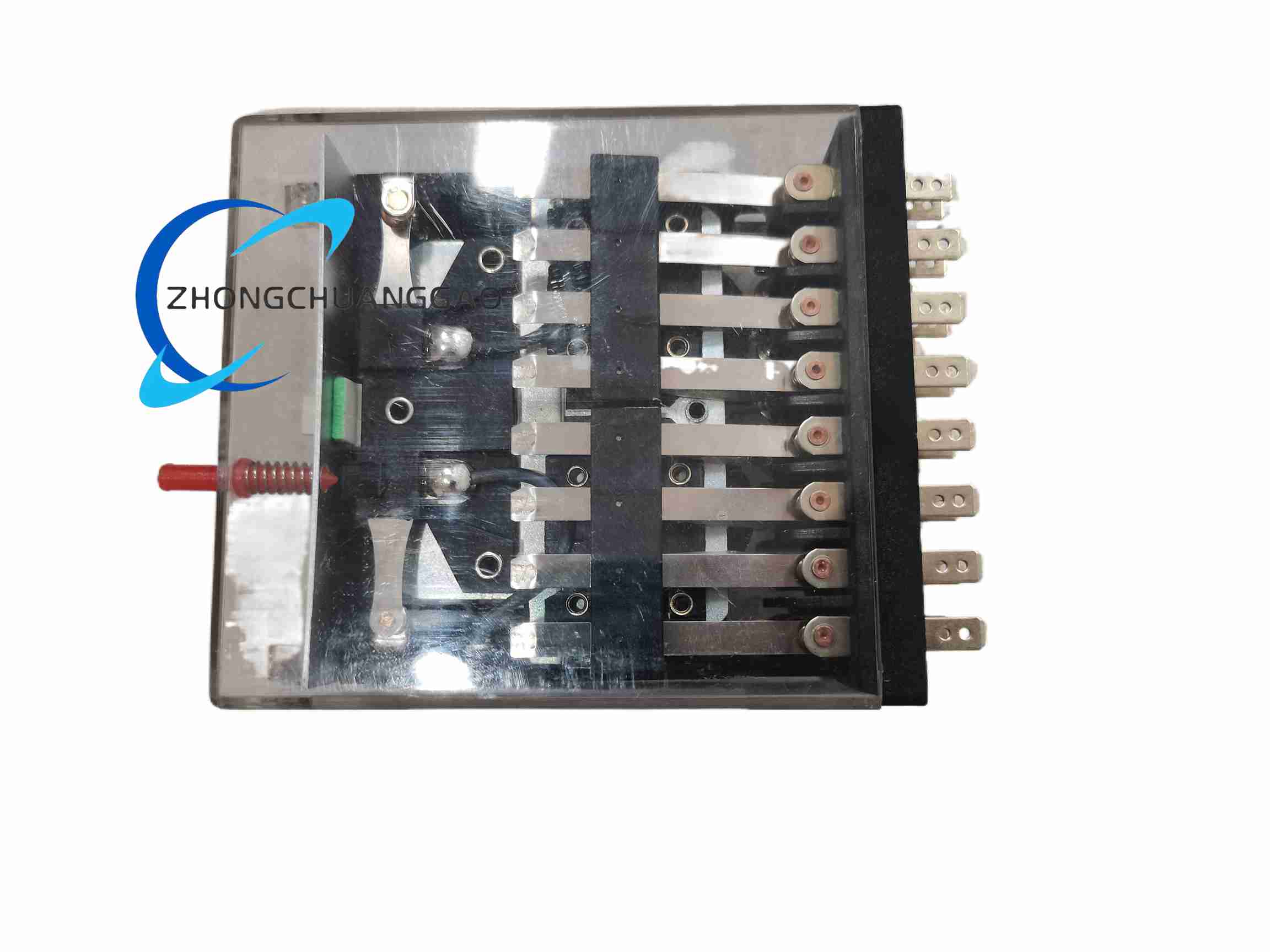

ARTECHE BJ-8RP

Description

• Dimensions: 90 mm (A) x 50 mm (B) x 100.5 mm (C) (J large Type)
• Standard Coil Voltages: 24, 48, 72, 110, 125, 220 VDC; 63.5, 110, 127, 230 VAC (50-60 Hz)
• Voltage Range: +10% to -20% of nominal voltage (UN)
• Average Consumption (change-over): 45 W
• Pick-up Time: < 10 ms (VDC), < 20 ms (VAC)
• Contact Material: AgNi (Silver-Nickel)
• Contact Distance: 1.8 mm
• Permanent Current: 10 A
• Instantaneous Current: 80 A during 200 ms / 200 A during 10 ms
• Max. Making Capacity: 40 A / 0.5 s / 110 VDC
• Max. Opened Contact Voltage: 250 VDC / 400 VAC
• Mechanical Endurance: 10^7 operations
• Operating Temperature: -40 °C to +70 °C
• Storage Temperature: -40 °C to +85 °C
• Max. Operating Humidity: 93% at +40 °C
• Operating Altitude: < 2000 m
• Reset: Manual reset
• Application: Tripping and locking applications in power systems requiring high quality operating time and breaking capacity
