Product Short Description

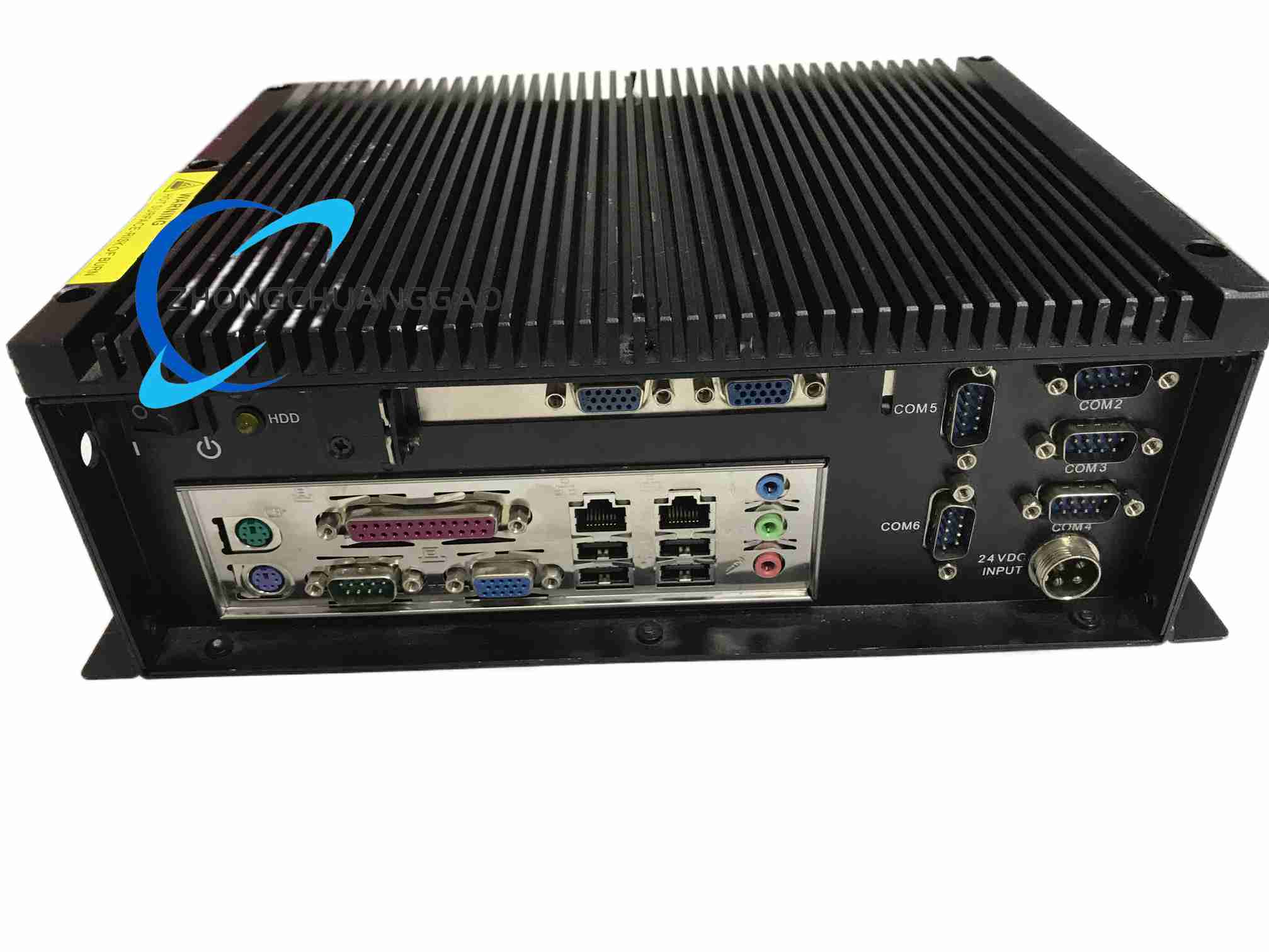

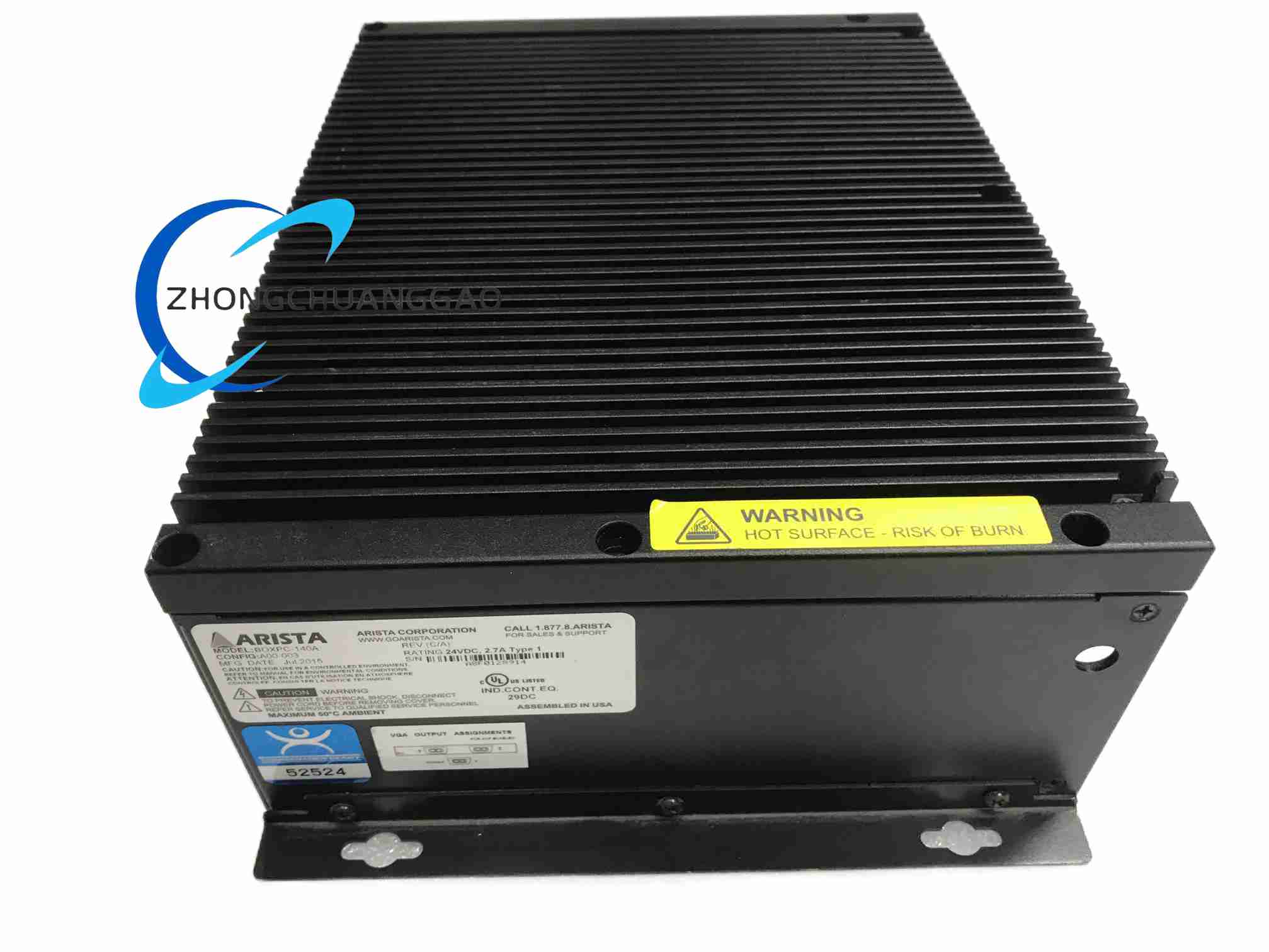

The ARISTA BOXPC-140A is a fanless industrial wall-mount computer designed for automation, industrial signage, food production, manufacturing, and capital equipment applications requiring an expandable fanless industrial computing solution.
- CPU: VIA 1.5 GHz C7 processor (low power, based on VIA CoolStream Architecture, 90nm SOI process)
- Chipset: VIA CN 700
Description
- Memory: DDR-400 up to 1 GB
- Video Controller: CN700 Integrated S3 Graphic Engine
- Display Interface: 1 x VGA
- Storage Options: 1 x 2.5″ SATA HDD (optional), Type II CF slot
- Watchdog Timer: Programmable 1-255 sec
- Expansion Slot: 1 x PCI
- USB Ports: 4 x USB 2.0
- Serial Ports: 5 x RS-232, 1 x RS-232/422/485
- LAN: Dual Gigabit Ethernet (2 x RJ45)
- Audio: Line in, Line out, Mic-in
- Keyboard/Mouse: 2 x PS/2 connectors
- Parallel Port: 1 x
- Multi-Monitor Support: Capable of supporting up to 3 monitors with ACP ThinManager
- Power Requirement (Max): 24 VDC / 2.7 A (65 W)
- Heat Dissipation: 221 BTU/hr
- Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
- Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Relative Humidity: 0% to 95% (non-condensing)
- Protection Rating: IP50 (dust resistant)
- Chassis: Sealed all-metal chassis for protection against moisture, humidity, and particulate matter
- Mounting: Wall mount
- Net Weight: 5 lbs / 2.3 kg
- Dimensions (W x H x D): 11.56 x 8.38 x 3.84 inch (293.6 x 203.2 x 97.4 mm)
- Thermal Design: Advanced internal heat sink system with oversized copper cooling pipes dissipating heat to external cooling fins
- OS Support: WinXP Pro, XPe
- Certification: RoHS compliant
- Application: Automation, industrial signage, food production, manufacturing, capital equipment, semiconductor, test & measurement, medical, telecom, and other industries requiring reliable fanless industrial computing
