Product Short Description

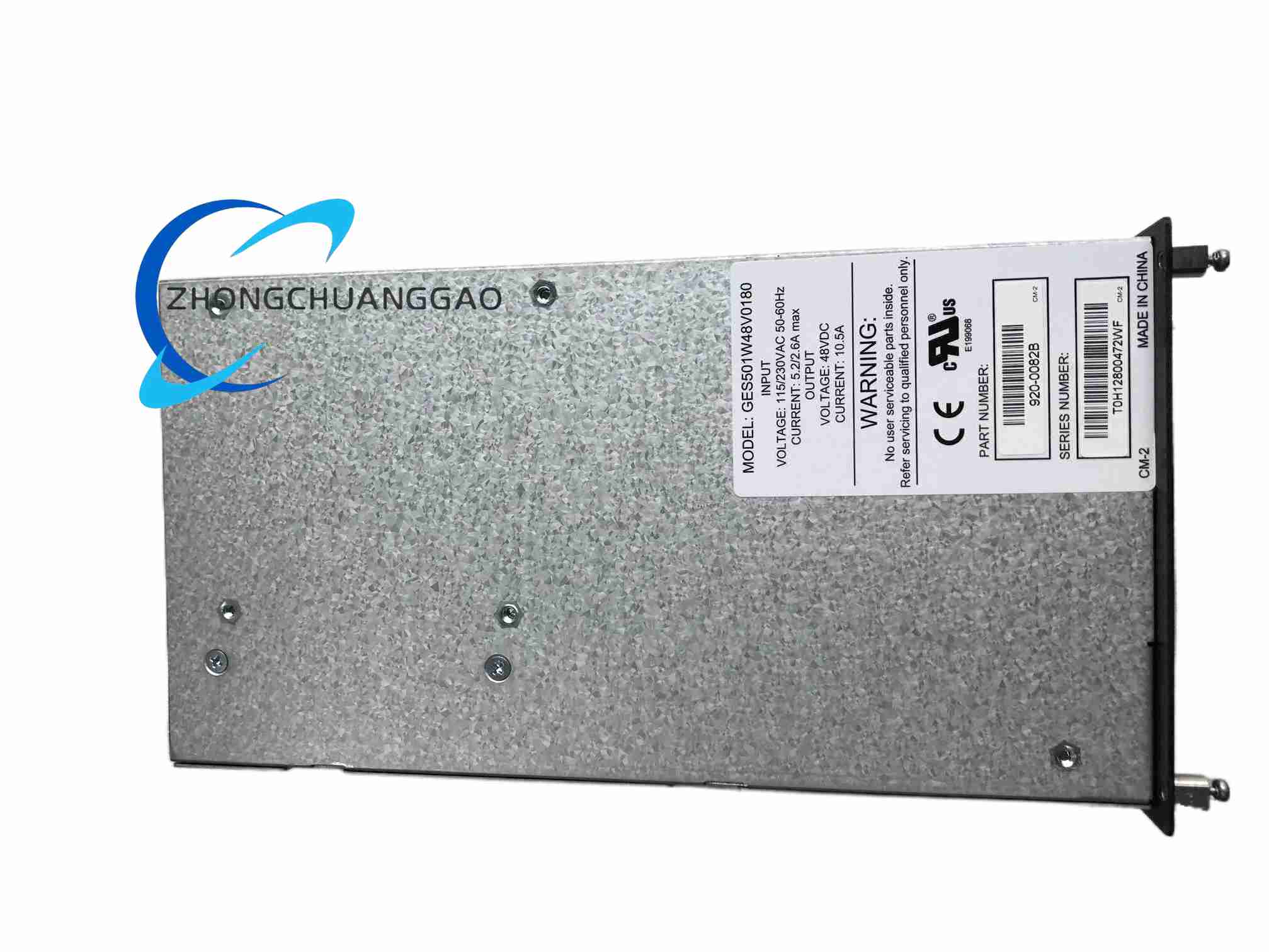

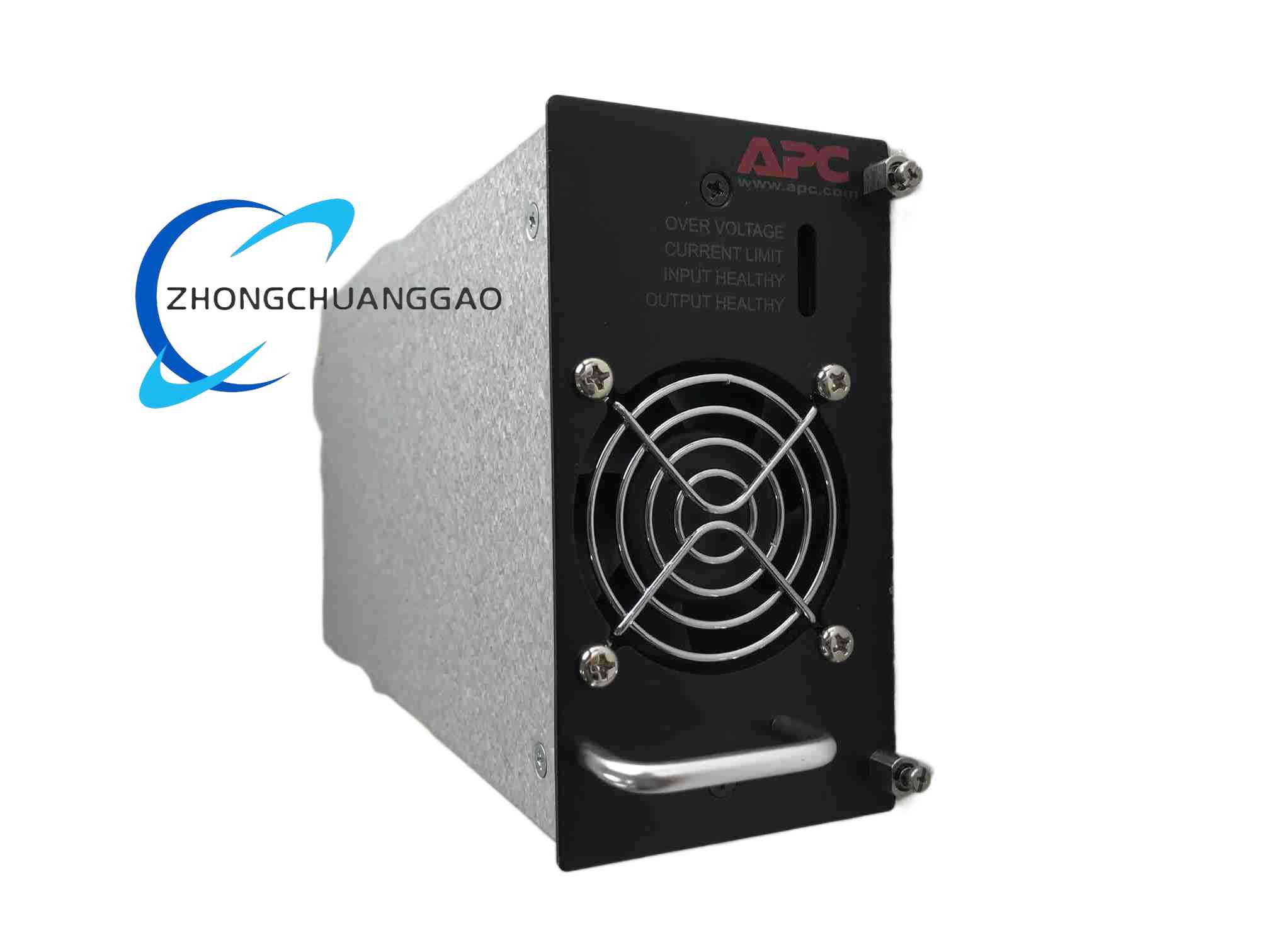

Product Name: 48 V DC Power Supply / I/O Module (Legacy Industrial Component)
Overview: The APC GES501W48V0180 is a legacy industrial component. Based on available supplier documentation, it is described as a 48 V DC power supply unit with 180 W output capacity, though some sources classify it as a 48 V I/O module. It was commonly deployed in 15+ year-old packaging lines, water treatment skids, and similar legacy automation systems.
Description
Technical Specifications (as Power Supply):
- Output Voltage: 48 V DC
- Output Power: 180 W
- Input Voltage: 100–240 V AC
- Efficiency: 87.0%
- Maximum Operating Temperature: 40 °C
Technical Specifications (as I/O Module — alternate source):
- Nominal Voltage: 48 V DC
- Max Output Current: 180 mA per channel
- Channel Count: Typically 8 or 16 (verify physical pinout)
- Isolation: 1500 V RMS channel-to-bus
- Response Time: <10 ms (digital), <50 ms (analog)
- Operating Temp: -20 °C to +60 °C
- Mounting: DIN rail or panel mount
- Termination: Screw terminal or ribbon cable
- Protection: Short-circuit & over-temperature
- Compliance: CE, UL (verify specific listing)
Key Features:
- 48 V operation reduces cable size vs. 24 V systems
- Decent isolation (1500 V RMS) protects against ground loops
- Workhorse reliability for legacy systems
Application Scenarios: Legacy water/wastewater plants, packaging line retrofits, SCADA system upgrades where 48 V field I/O remains in service, and industrial automation systems requiring 48 V power distribution.
Working Principle (I/O Module): Acts as an interface between 48 V field devices (solenoids, limit switches, analog sensors) and the PLC backplane, providing signal conditioning, isolation, and short-circuit protection.
Installation & Notes:
- Always use snubbers for inductive loads (solenoids, contactors) to protect output stage from field transients
- If experiencing random channel drops, check backplane seating — ribbon cable connectors are prone to fretting corrosion
- Non-repairable unit — blown internal fuses require module replacement
- Verify whether your specific unit is the power supply or I/O module variant before installation
- Maintain load current below 180 mA per channel to avoid over-temp trips
