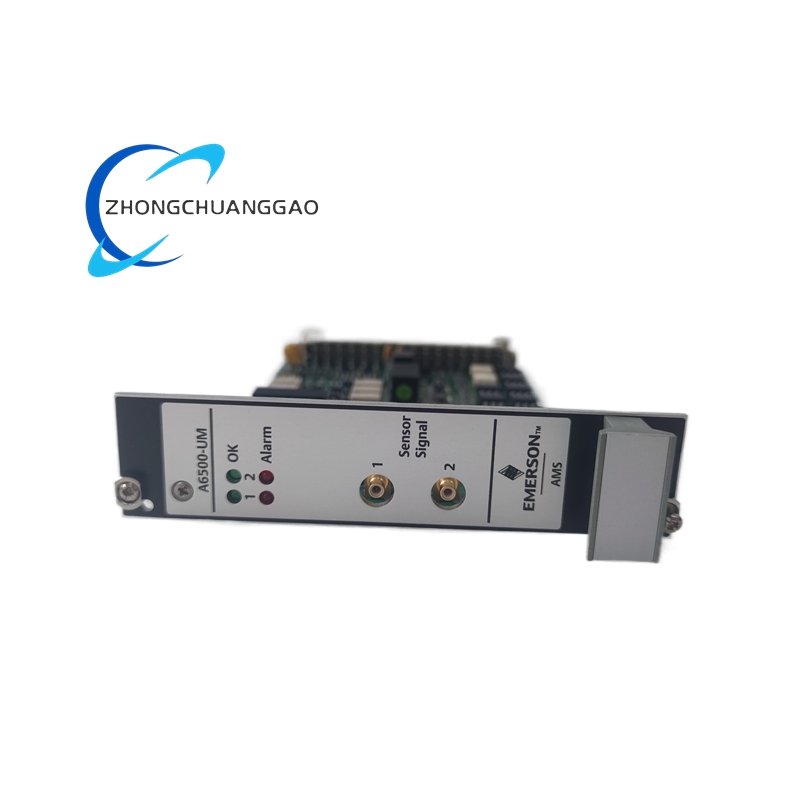

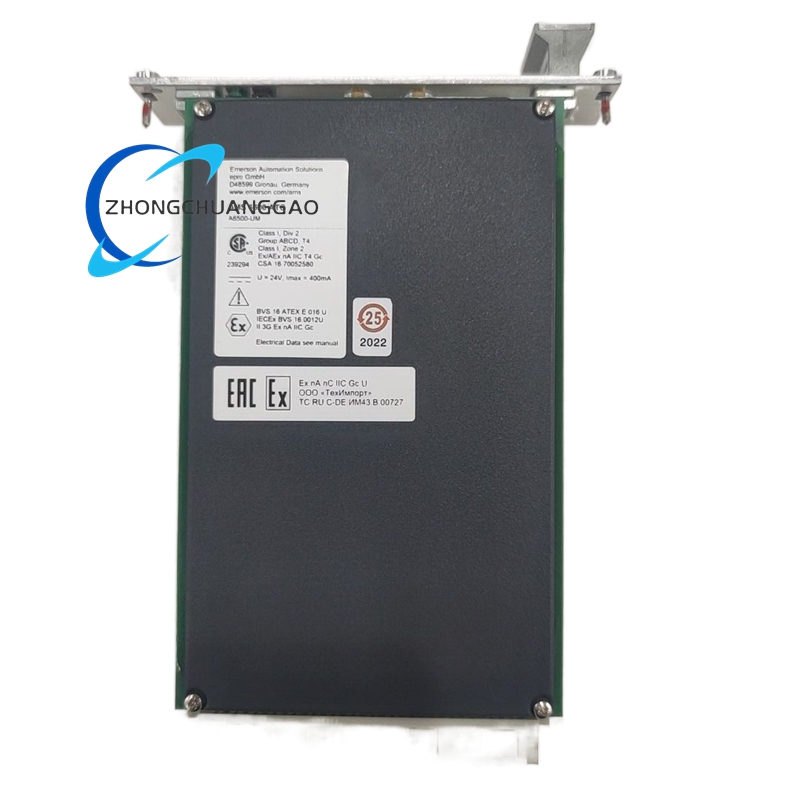

AMS A6500-UM

Functional Features: Multi-type signal compatible acquisition, channel self-calibration, signal amplification, noise filtering, real-time data sampling, data local storage.

Performance Parameters: Temperature measurement accuracy ±0.2 °C, analog signal acquisition accuracy ±0.1%, sampling frequency adjustable 10 Hz ~ 20 kHz, channel crosstalk ≤0.1%.

Material Composition: High-precision acquisition chip, low-drift operational amplifier, anti-aging circuit board, shielded signal terminals, heat-conducting insulating pad.

Structural Characteristics: Standard plug-in card structure, centralized terminal area, independent signal processing unit for each channel, internal heat dissipation structure, overall anti-vibration reinforcement design.

Working Principle: Receive analog signals from different types of on-site sensors, perform amplification, filtering and noise reduction processing on signals, convert analog signals into high-precision digital signals via AD converter, transmit digital data to system main control unit for unified analysis and processing.

Advantages & Highlights: Multi-signal universal access, high acquisition precision, wide measurement range, strong signal anti-interference, adjustable sampling frequency, one card for multiple purposes to reduce configuration cost.

Applicable Industries: Full-range industrial equipment condition monitoring, mechanical fault diagnosis, thermal parameter monitoring, process industry production monitoring.

Model Series: AMS A6500 Series Universal Monitoring Accessories

Installation Requirements: Match dedicated slot of A6500 host; use shielded wires for sensor signal lines; classify wiring for different signal types; ensure good heat dissipation.

Usage Notes: Classify and connect different sensor signals strictly; perform full channel calibration after installation; avoid strong vibration impact on the card; prevent static electricity during maintenance.
