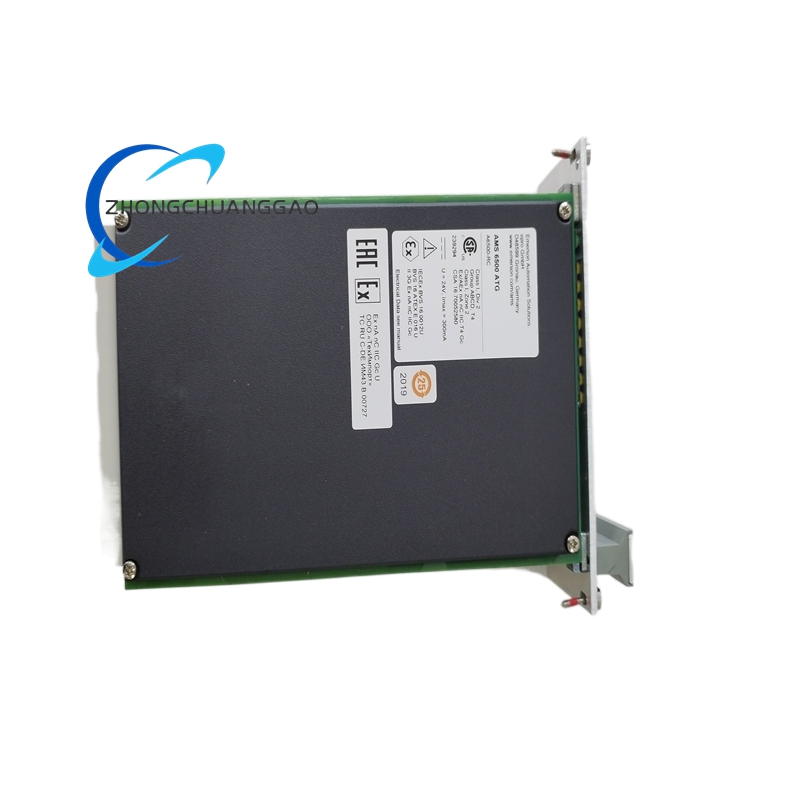

AMS A6500-RC

Functional Features: Threshold linkage control, multi-channel independent output, manual/automatic mode switching, relay state feedback, overload protection, alarm signal latch.

Performance Parameters: Relay mechanical life ≥10⁷ times, channel isolation voltage 1500 V, action accuracy 100%, no misoperation under strong interference.

Material Composition: Flame-retardant circuit substrate, industrial electromagnetic relays, silver alloy contact points, insulated wiring terminals, metal anti-interference shell.

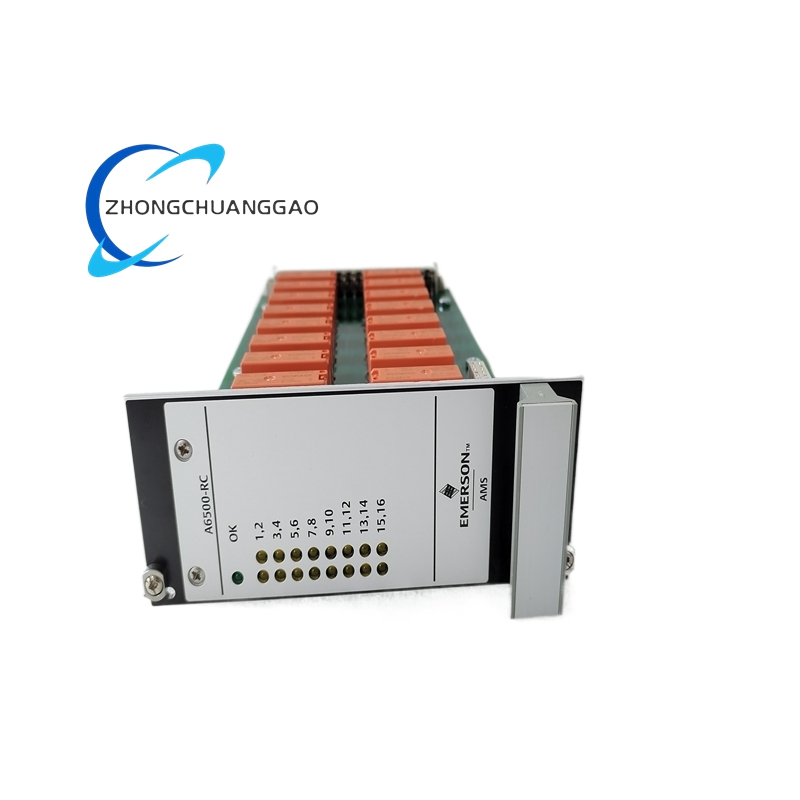

Structural Characteristics: Plug-in card structure, channel partition layout, each relay with independent isolation circuit, front panel with channel status LED indicators, foolproof slot design to prevent reverse insertion.

Working Principle: Receive digital alarm signals sent by the main control unit, judge signal level and alarm level through internal logic circuit, drive corresponding relay to pull in or disconnect, output switch quantity signals to control external electrical equipment, and feed back relay working state to the system in real time.

Advantages & Highlights: Multi-channel independent control, strong load driving capability, electrical isolation between channels, long service life of relays, stable action, convenient fault troubleshooting.

Applicable Industries: Industrial equipment monitoring and alarm, automatic production line, petrochemical plant, power plant, water treatment system.

Model Series: AMS A6500 Series Universal Monitoring Accessories

Installation Requirements: Install in dedicated card slot of A6500 host; external load wiring must match load parameters; keep ventilation around the card; strictly follow polarity requirements for wiring.

Usage Notes: Do not exceed rated load of each relay channel; cut off load power before maintenance; regularly clean dust on card surface; replace failed relays in time.
